#[SO3140002] FITC Filter Set - Ex:BP480/40nm, Em:BP535/50nm

#[SO3140002] FITC Filter Set - Ex:BP480/40nm, Em:BP535/50nm

$210.00 USD
$210.00 USD
Sale Sold out
Shipping calculated at checkout.
Filter Set
Filter Cubes

How to pay

  • Standard Payment Method is Credit Card, Apple Pay, Goolge Pay, Alipay and Wechat Pay

Shipment and Delivery

For filter set products, it will takes 7 - 10 days for assembling. (Before we can make shipment)

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Filter Sizing

If you purchased along with filter cube, the filters (Ex, Em, Dic) will be cut to the size can be fitted into the filter cube.

If only the Filters are purchased, it will coming with below sizes by default:

  • dia25x6mm (mounted, excitation filter)
  • 36x25x1,1mm (unmounted, dichroic mirror)
  • dia25x3.5mm (mounted, emission filter)

Filter Cube Installation

If you purchased the Whole set of filters and Filter cube from us. All the filters will be installed inside the cube. You can put into your filter turrent and use it directly.

View full details

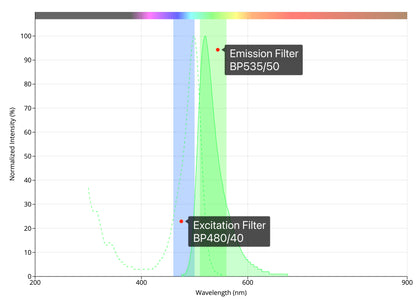

This filter set is designed to match fluorophores with excitation/emission peaks near 495 nm and 520 nm. This combination is standard for imaging in the Green-fluorescence spectral region.

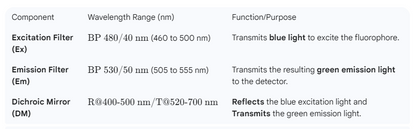

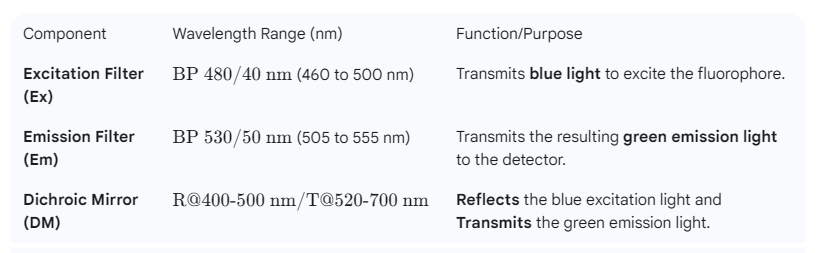

Filter Specifications:

  • Excitation Filter (Ex): Bandpass 480/40 nm (transmits light from 460 nm to 500 nm)
  • Emission Filter (Em): Bandpass 535/50 nm (transmits light from 510 nm to 560 nm)
  • Dichroic: R@400-500nm/T@520-700nm

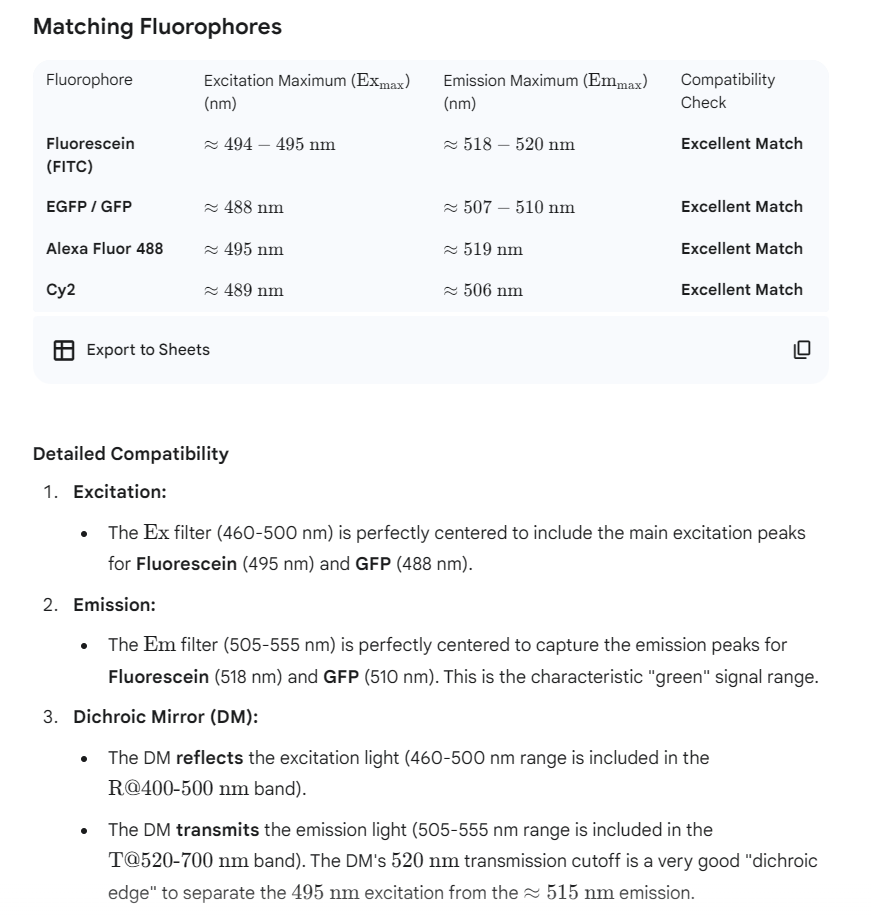

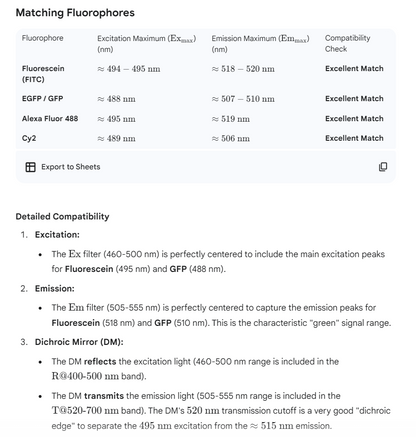

Intended for use with common green fluorophores including:

  • FITC (ex~495, em~508)
  • eGFP / GFP
  • Alexa Fluor 488 / DyLight488 / iFluor488 / Opal520 (ex~495, em519)
  • Cy2 (ex~492, em~508)
