Neutral Density FIlter

A Neutral Density Filter, or ND filter, is a type of optical filter that reduces the intensity of light equally across a specific wavelength range, without affecting the color or hue of the light. ND filters are often used in photography, microscopy, spectroscopy, and machine vision applications to control the exposure, depth of field, motion blur, or contrast of the image. ND filters can also be used to attenuate laser beams, protect sensitive sensors, or isolate specific spectral bands.

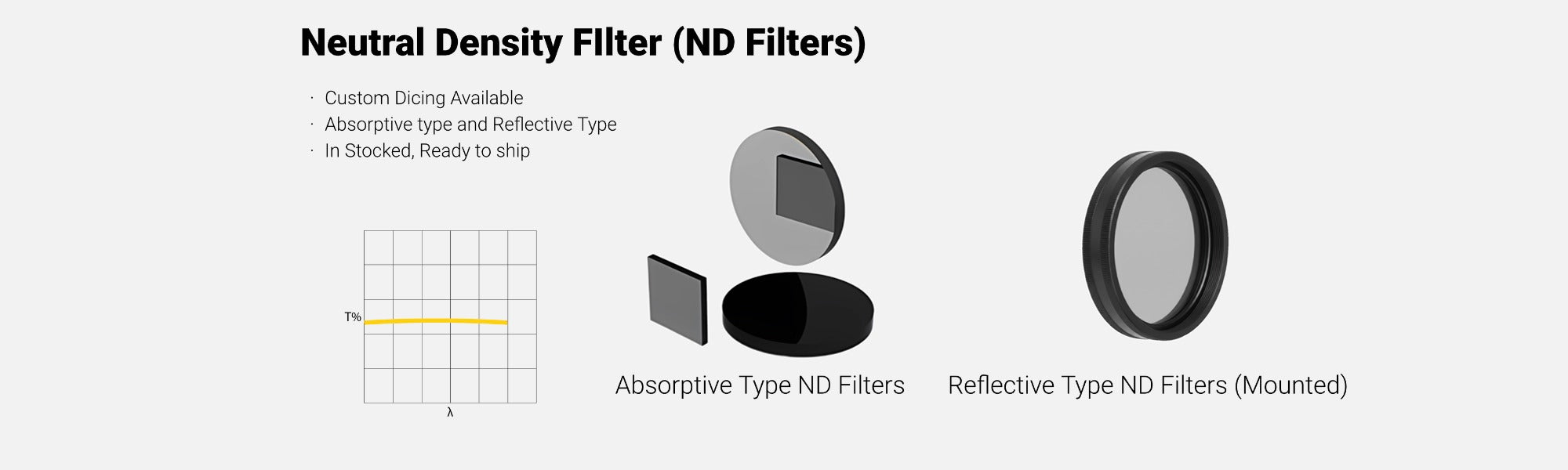

Neutral Density FIlter

Major Sepcifications of Neutral Density FIlters

Some of the major specifications of ND filters are:

  • Optical Density (OD): This is a measure of how much light is blocked by the filter. A higher OD value means lower transmission, and vice versa. OD is related to the percent transmission (T) by the formula: OD = -log(T/100%). For example, an OD of 2 means that only 1% of the light passes through the filter.
  • Bandwidth: This is the wavelength range over which the filter reduces the light intensity. ND filters can be designed for different spectral regions, such as ultraviolet (UV), visible (VIS), or infrared (IR).
  • Blocking Range: This is the wavelength range over which the filter blocks or rejects the light completely or to a high degree. The blocking range is usually specified by the optical density value at the edge of the range.
  • Slope: This is a measure of how fast the filter transitions from high transmission to high blocking, or vice versa. A steeper slope means a sharper cutoff, and a gentler slope means a smoother transition.
  • Filter Type: There are two main types of ND filters: reflective and absorptive. Reflective ND filters use thin film coatings, usually metallic, to reflect light back to the source. Absorptive ND filters use glass substrates to absorb light by a specific percentage.

Why Neutral Density Filter is needed?

A neutral density filter is different from other types of filters in that it does not alter the color or spectral composition of the light, but only reduces its intensity uniformly. Other types of filters, such as bandpass or notch filters, selectively transmit or block certain wavelengths or bands of light, while affecting the color or contrast of the image. Depending on your application and desired effect, you may need a neutral density filter instead of other type of filter for the following reasons:

  • To control the exposure without changing the aperture or shutter speed settings of your camera. This can help you achieve a shallow depth of field or a motion blur effect in bright lighting conditions.
  • To attenuate laser beams without changing their wavelength or coherence properties. This can help you protect your eyes or sensors from damage, or adjust the power output of your laser source.
  • To isolate a specific spectral band without introducing unwanted color shifts or artifacts. This can help you enhance the contrast or visibility of certain features in your image, such as fluorescence signals or chemical reactions.

What is the difference between reflective and absorptive ND filters?

The difference between reflective and absorptive ND filters is how they reduce the light intensity.

Reflective ND filters use thin film coatings, usually metallic, to reflect light back to the source, while absorptive ND filters use glass substrates to absorb light by a specific percentage .
Reflective ND filters can be optimized for specific wavelength ranges, such as UV-VIS or NIR, and have a sharper cutoff between high transmission and high blocking. However, they may introduce unwanted reflections or interference in the system setup. Absorptive ND filters are more suitable for broadband applications and have a smoother transition between high transmission and high blocking. However, they may generate heat or change color due to light absorption .

Depending on your application and desired effect, you may need to choose between reflective and absorptive ND filters. For example, if you want to attenuate a laser beam without changing its wavelength or coherence properties, you may prefer a reflective ND filter. If you want to control the exposure of a camera without affecting the color or contrast of the image, you may prefer an absorptive ND filter .
