Introduction to Dichroic Mirrors

A dichroic mirror is a specialized optical component designed to reflect certain wavelengths of light while transmitting others. This unique capability is achieved through the intricate layering of materials, typically using thin-film interference techniques. These mirrors are often referred to as dual-band mirrors, dual-wavelength mirrors, or dichroic reflectors, and they play a crucial role in various optical applications.

Key Specifications of Dichroic Mirrors

Selective Reflection/Transmission

Dichroic mirrors are distinct from traditional mirrors because they selectively reflect and transmit light based on wavelength. Unlike standard mirrors that reflect light uniformly across a broad spectrum, dichroic mirrors can be designed to reflect specific wavelengths and transmit others.

Layer Complexity

These mirrors consist of multiple layers of different materials and thicknesses, which are carefully chosen to create the desired interference effects. This complexity allows for precise control over the reflection and transmission properties of the mirror.

Types of Dichroic Mirrors

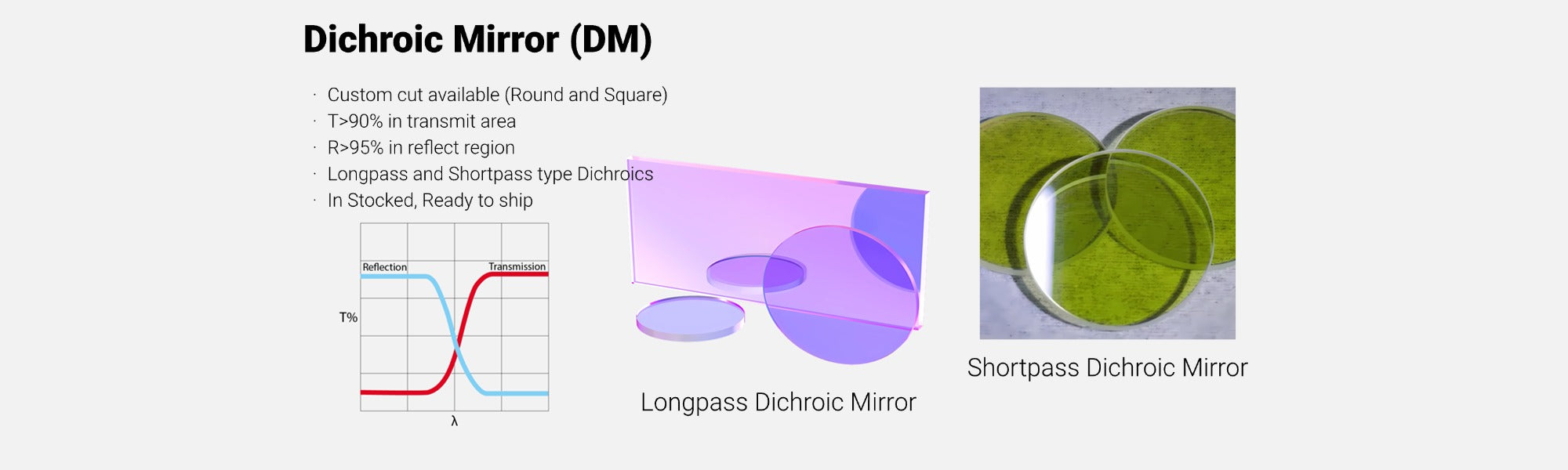

• Long-pass Dichroic Mirrors: These mirrors transmit longer wavelengths while reflecting shorter ones. They have a cut-on wavelength that separates the highly reflective and transmissive bands.
• Short-pass Dichroic Mirrors: These mirrors reflect longer wavelengths and transmit shorter ones. They feature a cut-off wavelength above which radiation is highly reflective.
• Notch Mirrors: These mirrors reflect a specific, narrow range of wavelengths while transmitting both longer and shorter wavelengths. This is useful for isolating or blocking particular wavelengths.
• Multi-band Dichroic Mirrors: These mirrors have both a cut-off and cut-on wavelength, resulting in two transmission bands and one reflective band.

Transmission and Reflection Spectra

Understanding the transmission and reflection spectra is crucial for applications requiring precise wavelength management. Manufacturers typically provide graphs or charts showing the percentage of light transmitted or reflected across a range of wavelengths.

Cut-off/Cut-on Wavelength

This specification defines the transition point between the wavelengths that are primarily reflected and those that are transmitted. It is critical for long-pass and short-pass dichroic mirrors.

Manufacturing and Durability

Dichroic mirrors are often manufactured using advanced thin-film deposition techniques such as electron beam deposition, ion beam sputtering (IBS), and ion-assisted deposition (IAD). They are typically made with hard dielectric coatings, which make them durable and resistant to high power lasers and thermal changes.

A Study Case for Selecting a Dichroic Mirror

When selecting a dichroic mirror, several factors need to be considered:

• Application Requirements: Determine the specific wavelengths that need to be reflected or transmitted. For example, in fluorescence microscopy, you need a mirror that can separate the excitation light from the fluorescence signal.
• Cut-off/Cut-on Wavelength: Ensure the mirror's cut-off or cut-on wavelength aligns with your application's needs.
• Angle of Incidence: Most dichroic mirrors are designed for use at a 45-degree angle of incidence. If your application requires a different angle, custom mirrors may be necessary.
• Durability and Surface Quality: Consider the mirror's durability and surface quality, especially if it will be exposed to high-intensity light or handled frequently.

Typical Applications and Why Dichroic Mirrors are Used

Fluorescence Microscopy

Dichroic mirrors are pivotal in fluorescence microscopy, allowing the excitation light to illuminate the sample while efficiently separating the much weaker fluorescence signal from the excitation source. This enables clear visualization of fluorescent-labeled structures.

Laser Systems

In multi-wavelength laser systems, dichroic mirrors can combine beams from different lasers or separate specific wavelengths from broadband laser sources. Their high damage thresholds and precise reflection/transmission properties make them ideal for these high-intensity applications.

Spectroscopy

Dichroic mirrors facilitate the separation of specific wavelengths for analysis in spectroscopic systems, enhancing the accuracy and efficiency of the measurement. They can easily split or combine laser beams, ensuring that only the desired wavelengths reach the detector.

Imaging

In advanced imaging systems, especially those requiring multi-wavelength illumination or capture, dichroic mirrors help in wavelength management. This is crucial in applications like multispectral imaging, where capturing images at distinct wavelength bands can provide additional information about the subject.Dichroic mirrors offer a unique solution for managing light across different wavelengths, making them essential components in a variety of optical applications. Their selective reflection and transmission properties, combined with their durability and precision, make them invaluable tools in modern optics.
