Collection: Bandpass Filters in Night Imaging Applications

Why Are Bandpass Filters Used in Night Imaging?

Bandpass filters are essential in night imaging for several reasons:

• Enhancing Signal-to-Noise Ratio: By allowing only the desired wavelengths to reach the sensor, bandpass filters reduce the background noise from unwanted light sources, improving the clarity and quality of the image.
• Selective Wavelength Transmission: In night imaging, certain wavelengths, such as near-infrared (NIR), are more effective due to their ability to penetrate atmospheric particles like fog or smoke. Bandpass filters enable the use of these specific wavelengths.
• Reducing Light Pollution: In outdoor environments, artificial lighting can interfere with imaging sensors. Bandpass filters minimize the impact of ambient light by blocking specific wavelengths associated with light pollution.

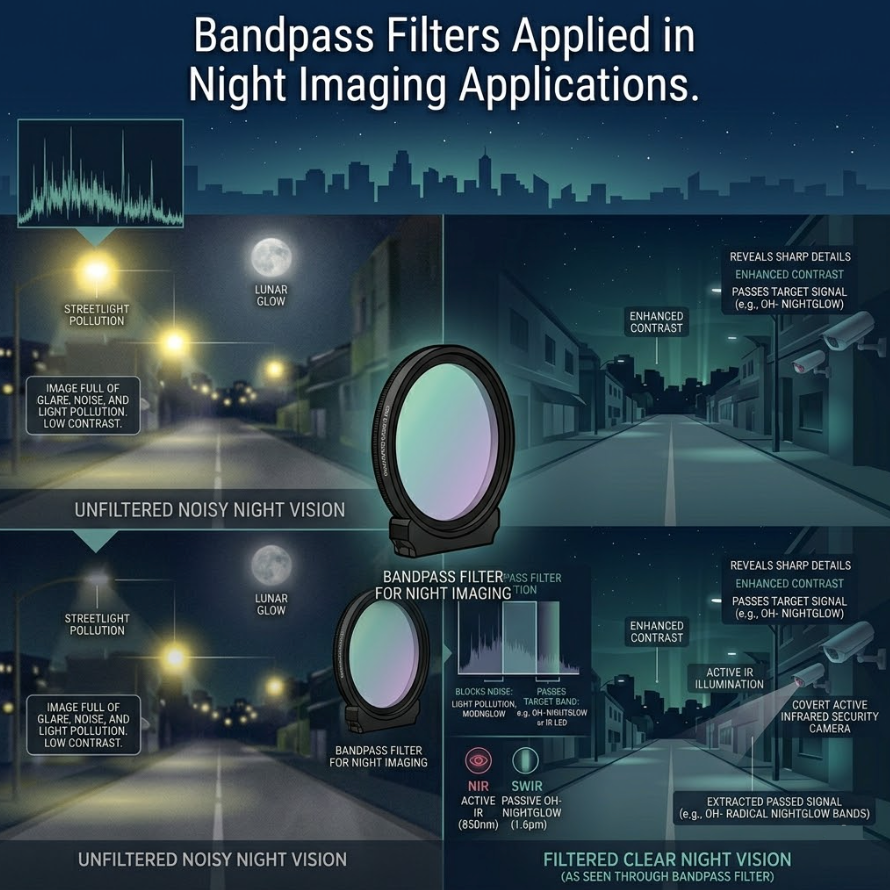

Impact of Not Using Bandpass Filters

Without bandpass filters, night imaging systems may experience:

• Decreased Image Contrast: Unfiltered sensors can detect a wide range of wavelengths, including unwanted ambient light, leading to reduced contrast and making it difficult to distinguish objects.
• Increased Noise Levels: The presence of unwanted wavelengths adds noise to the image, degrading overall quality and obscuring important details.
• Overexposure to Undesired Wavelengths: Sensors may become saturated with irrelevant light, which can impair their ability to detect the desired signals accurately.

Case Study: Utilizing NIR Bandpass Filters in Night Surveillance

Application Scenario: A night surveillance system requires clear imaging in complete darkness for security purposes.

Solution: Implementing a NIR bandpass filter centered at 850 nm with a full width at half maximum (FWHM) of 50 nm.

Parameters:

• Central Wavelength (CWL): 850 nm
• Bandwidth (FWHM): 50 nm (allows wavelengths from 825 nm to 875 nm)
• Peak Transmission: ≥ 90%
• Optical Density (OD): ≥ 4 outside the passband (blocks over 99.99% of unwanted light)

Benefits:

• Enhanced Image Quality: The filter transmits NIR light efficiently, improving illumination in dark environments without visible light.
• Covert Operation: NIR at 850 nm is invisible to the human eye, allowing discreet surveillance.
• Reduced Interference: By blocking visible and longer-wavelength infrared light, the system minimizes noise from ambient sources.

Outcome: The surveillance system achieves high-contrast, clear images in complete darkness, enhancing security monitoring capabilities.

Selecting the Right Bandpass Filter

When choosing a bandpass filter for night imaging, consider the following parameters:

• Central Wavelength (CWL): Aligns with the peak emission of the illumination source or the desired detection wavelength.
• Bandwidth (FWHM): Determines the range of wavelengths transmitted. A narrower bandwidth offers higher selectivity, while a wider bandwidth allows more light through.
• Transmission Efficiency: Higher peak transmission percentages enable more light to reach the sensor, crucial in low-light conditions.
• Optical Density (OD): Indicates the filter's ability to block unwanted wavelengths. A higher OD provides better blocking performance.

Conclusion

Bandpass filters play a vital role in night imaging by enhancing image clarity, contrast, and overall quality. They enable systems to operate effectively under low-light conditions by selectively transmitting desired wavelengths and blocking unwanted ones. Selecting the appropriate filter parameters is crucial to meet the specific needs of the application.

References

1. Near-Infrared Imaging for Night Vision Applications. Journal of Optical Engineering, 57(8).
2. The Use of Bandpass Filters in Low-Light Imaging Systems. Applied Optics, 55(10).
3. Optical Filter Selection for Enhanced Night Imaging. Proceedings of SPIE, 9451.
4. Fundamentals of Optical Filters for Night Vision Devices. Optical Engineering Handbook, Chapter 12.
