HEX Filter Set
HEX Filter Set
Couldn't load pickup availability
How to pay
How to pay
- Standard Payment Method is Credit Card, Apple Pay, Goolge Pay, Alipay and Wechat Pay
Shipment and Delivery
Shipment and Delivery
For filter set products, it will takes 7 - 10 days for assembling. (Before we can make shipment)
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Filter Sizing
Filter Sizing
- If you purchased along with filter cube, the filters (Ex, Em, Dic) will be cut to the size can be fitted into the filter cube.
- If only the Filters are purchased, it will coming with a size of dia25mm (mounted) and 36x25x1.1mm (unmounted).

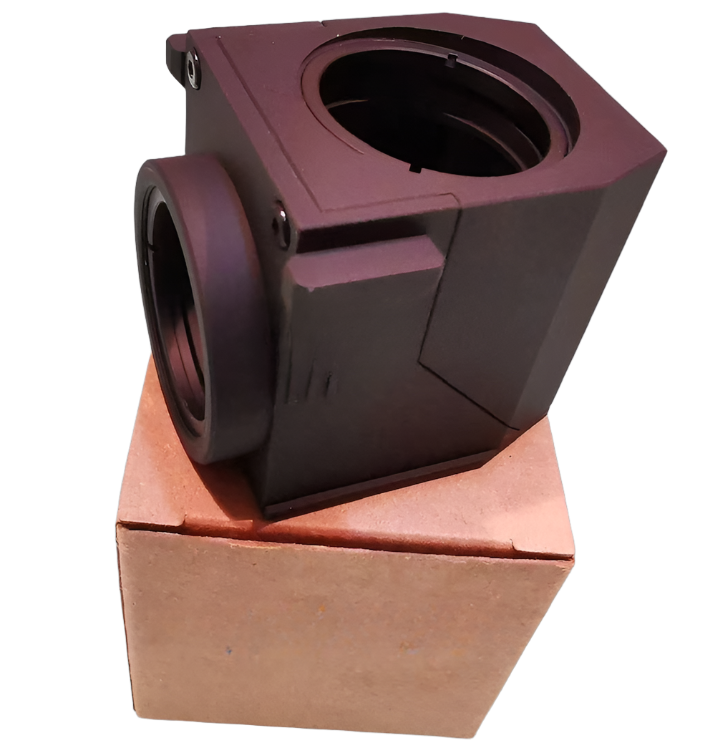

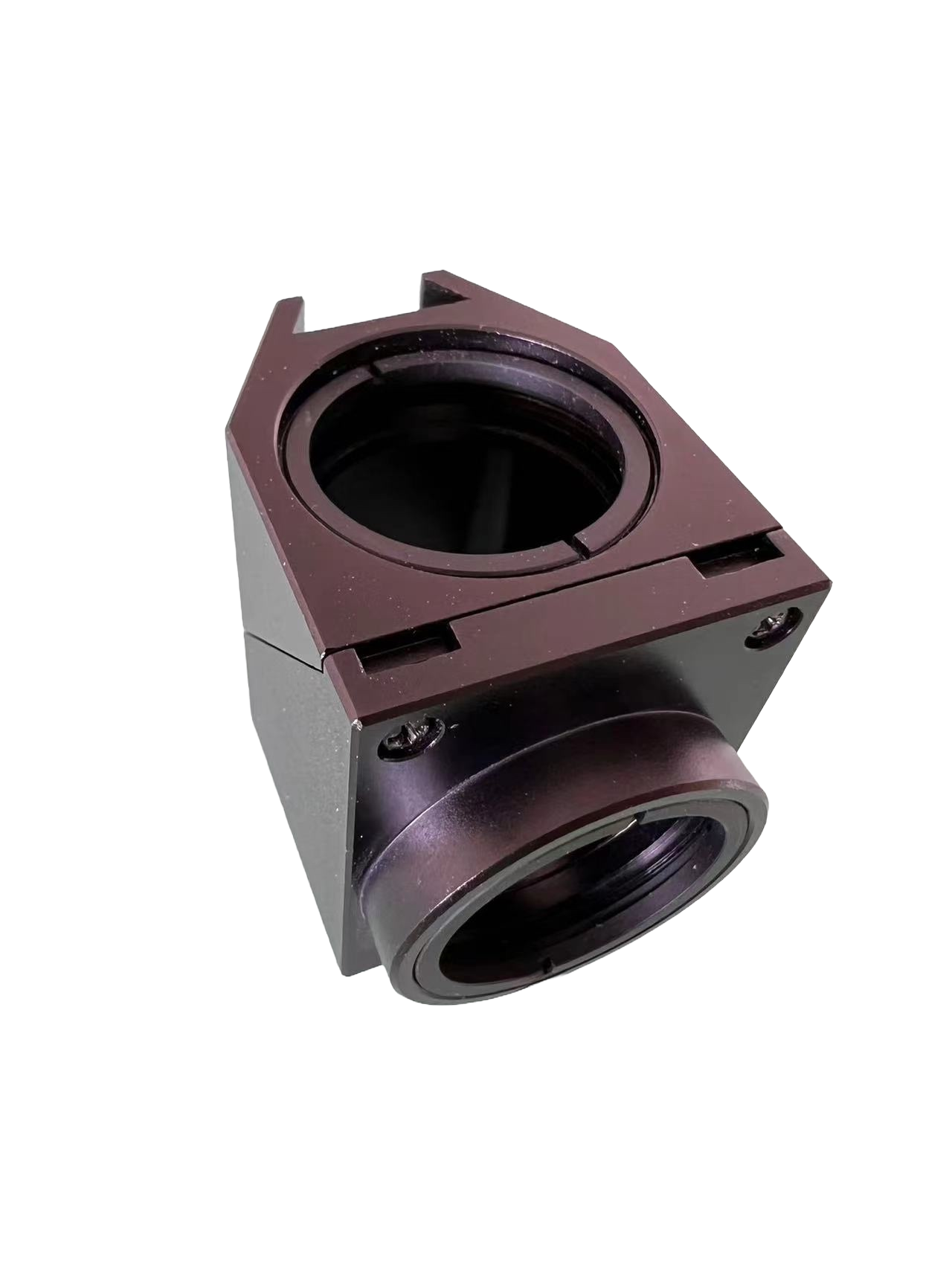

Filter Cube Installation
Filter Cube Installation
If you purchased the Whole set of filters and Filter cube from us. All the filters will be installed inside the cube. You can put into your filter turrent and use it directly.
Hexachlorofluorescein (HEX) is a hexachlorinated derivate of the fluorescent dye fluorescein. HEX-labeled oligonucleotides are used in PCR and the HEX channel is widely used in multiplex qPCR.
Fluorophore Profile:
Absorbance Max = 533nm
Emission Max = 559nm
Filter Set Profile:

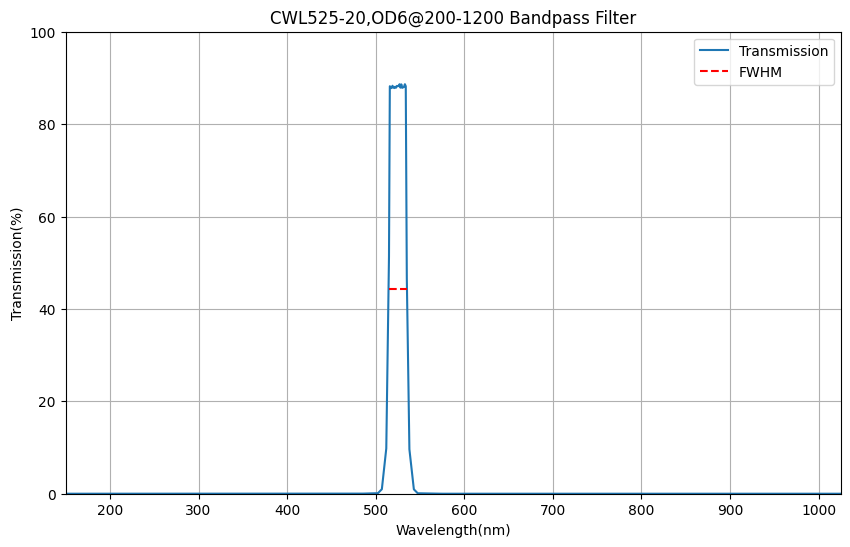

Excitation Filter = CWL525nm + FWHM20nm @ OD6 (Peak Transmission 85%)

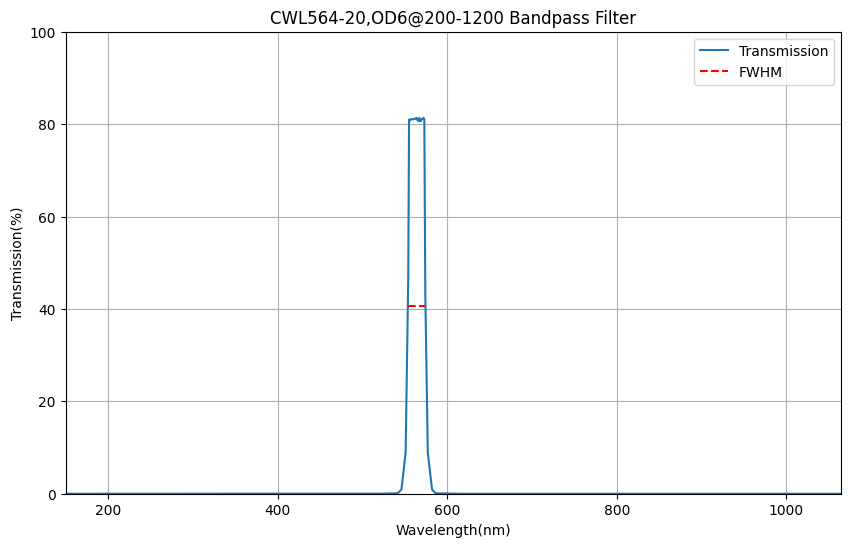

Emission Filter = CWL564nm + FWHM20nm @ OD6 (Peak Transmission 85%)
Dichroic Mirror: Transmission@555-700nm / Reflection@450-540nm
