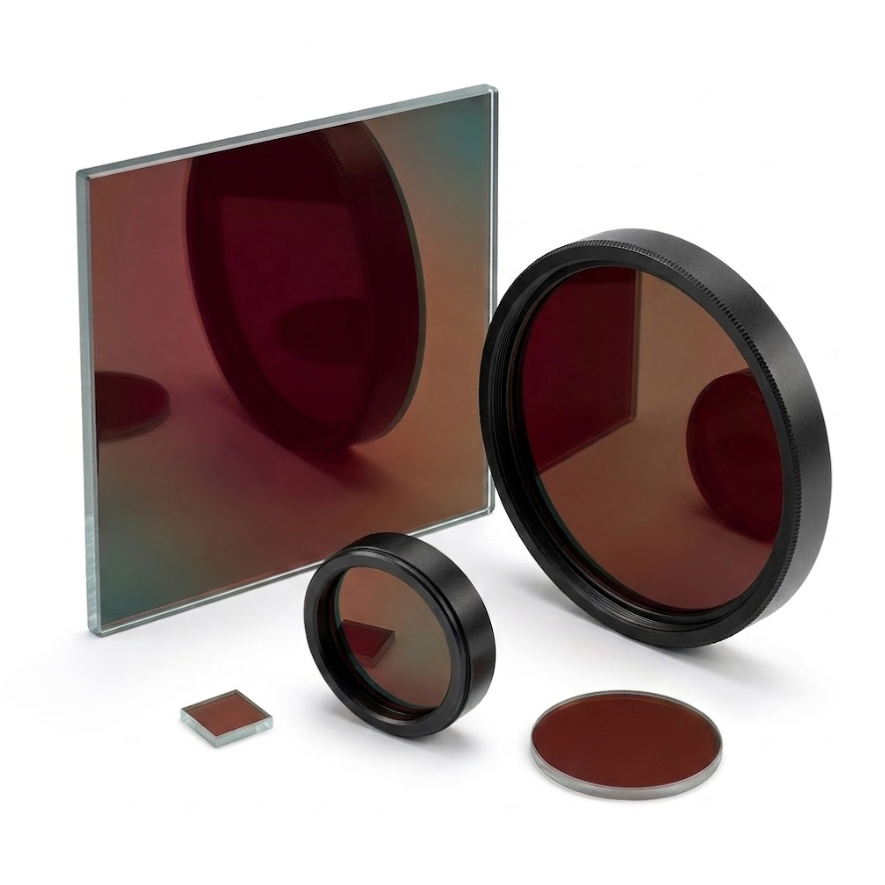

10000nm Bandpass Filter

Situated in the mid-infrared spectral region (10μm), this wavelength exhibits strong thermal radiation characteristics, is readily absorbed by substances containing polar groups (e.g., H₂O, CO₂), and benefits from reduced water vapor interference during atmospheric transmission (falling within a partial atmospheric window).

  • Application 1: In infrared thermal imaging systems, the filter blocks stray light and isolates 10000nm band thermal radiation to enable precise non-contact temperature monitoring of high-temperature objects, such as industrial furnaces and power equipment.
  • Application 2: Used in gas spectral analysis instruments, it selects the 10000nm characteristic absorption wavelength to accurately measure concentrations of greenhouse gases like CO₂ and CH₄ in ambient air or industrial exhaust, supporting environmental monitoring and carbon emission management.
  • Application 3: In remote sensing and night vision devices, the 10000nm bandpass filter enhances target recognition in fog/smoke conditions by effectively detecting heat signatures from sources obscured by vegetation or camouflage materials, such as human bodies and vehicle engines.

No products found
Use fewer filters or remove all

10000nm (10μm) Filter Application Selection Guide

I. Filter Configuration for Industrial Thermal Imaging Systems

In industrial equipment fault prediction and energy efficiency monitoring, long-wave infrared (LWIR) thermal imaging systems require precise capture of thermal radiation signals in the 8–14μm band. Key filter requirements for this application include:

  1. Spectral Characteristics
  • Bandpass Range: Strictly limited to 8–14μm to cover the peak region of blackbody radiation. For example, a filter using a silicon (Si) substrate with multilayer Ge/SiO₂ dielectric coatings can achieve high transmittance (T>70%) in 9–13μm, with out-of-band rejection (T<1%) across UV–20μm.
  • Anti-Interference Design: Integrates notch filters to suppress visible (400–700nm) and near-infrared (700–2500nm) interference, preventing detector saturation. Metal coating layers on germanium (Ge) substrates achieve OD3-level out-of-band suppression.
  1. Material and Process
  • Substrate Selection: Germanium single crystal (Ge) is preferred for its high transmittance (>90% in 8–14μm) and excellent mechanical/thermal conductivity, suitable for high-temperature environments. Cost-sensitive applications may use silicon (Si), requiring anti-reflective coatings to compensate for absorption losses near 10μm.
  • Coating Technology: Ion Beam Sputtering (IBS) deposits multilayer dielectric films with packing density >0.95, reducing moisture-induced wavelength drift (<1nm/℃). Diamond-like carbon (DLC) hard coatings (hardness >10GPa) protect against oil/dust abrasion.
  1. Selection Rationale
  • Background Noise Elimination: 8–14μm bandpass design avoids water vapor absorption peaks (e.g., 6.3μm) outside atmospheric windows, reducing environmental interference.
  • SNR Enhancement: High Ge transmittance combined with narrow bandpass (FWHM≈4μm) increases detected thermal signal strength by over 30%.
  • Environmental Adaptability: DLC coatings and sealed structures ensure stability from -40℃ to 85℃, meeting outdoor industrial requirements.

II. Filter Configuration for Methane Leak Detection

In petrochemical pipeline monitoring and environmental safety, methane (CH₄) exhibits a strong absorption peak at 7.66μm. Key filter requirements for this application include:

  1. Spectral Characteristics
  • Center Wavelength Precision: Requires precise matching to the methane absorption peak (7.669μm±0.02μm). "Split-layer" coating design with electron beam evaporation achieves wavelength error <0.3%.
  • Narrow Bandpass Design: Full Width at Half Maximum (FWHM) controlled between 59–120nm. For example, a sapphire (Al₂O₃) substrate with Ge/SiO₂ coatings provides 7.66μm center wavelength and 120nm bandwidth, with out-of-band rejection (T<0.5%) across 400–12,000nm.
  1. Material and Process
  • Substrate Selection: Sapphire (Al₂O₃) is preferred for high-temperature environments due to low thermal expansion (7.5×10⁻⁶/℃) and mechanical strength. Zinc selenide (ZnSe) offers higher transmittance but requires moisture resistance considerations.
  • Coating Technology: Ion-Assisted Deposition (IAD) controls film stress within ±50MPa, minimizing temperature-induced wavelength drift (<0.05nm/℃).
  1. Selection Rationale
  • Selective Absorption: Narrow bandpass design excludes interference from CO₂ (4.26μm) and H₂O (6.3μm), enabling ppm-level methane detection sensitivity.
  • SNR Enhancement: Optimized λ/4 stack coatings achieve peak transmittance >85% and OD3-level stray light suppression, doubling detector SNR.
  • Dynamic Tunability: Graphene-based tunable filters in portable devices allow ±50nm spectral tuning via electrostatic gating, adapting to varying methane concentrations.

III. Key Parameter Comparison for Selection

  • Center Wavelength
  • Industrial Thermal Imaging: 8–14μm (broadband, covering blackbody radiation peak)
  • Methane Detection: 7.66μm (narrowband, matching methane molecular vibration absorption)
  • Substrate Material
  • Industrial Thermal Imaging: Germanium (Ge, high transmittance >90% in 8–14μm); Silicon (Si, cost-effective with anti-reflective compensation for 10μm absorption)
  • Methane Detection: Sapphire (Al₂O₃, high-temperature resistance with low thermal expansion); Zinc Selenide (ZnSe, high transmittance but requires moisture protection)
  • Coating Process
  • Industrial Thermal Imaging: Ion Beam Sputtering (IBS), packing density >0.95, wavelength drift <1nm/℃
  • Methane Detection: Electron Beam Evaporation + Ion-Assisted Deposition (EAD-IAD), stress control ±50MPa, wavelength drift <0.05nm/℃
  • Out-of-Band Rejection
  • Industrial Thermal Imaging: UV–20μm, T<1% (OD3-level suppression of visible/NIR interference)
  • Methane Detection: 400–12,000nm, T<0.5% (excluding CO₂/H₂O absorption peaks)
  • Temperature Stability
  • Industrial Thermal Imaging: Operating range -40℃ to 85℃, wavelength drift <1nm/℃ (suitable for outdoor high-temperature monitoring)
  • Methane Detection: Operating range -20℃ to 60℃, wavelength drift <0.05nm/℃ (meeting portable device environmental requirements)
  • Typical Applications
  • Industrial Thermal Imaging: High-temperature equipment monitoring, power system efficiency analysis, industrial furnace thermal mapping
  • Methane Detection: Petrochemical pipeline leak inspection, landfill gas monitoring, coal mine gas concentration warning

IV. Selection Decision

  1. Determine Target Wavelength Band
  • Broadband (8–14μm) for general thermal radiation capture; Narrowband (e.g., 7.66μm) for specific gas absorption matching.
  1. Evaluate Environmental Conditions
  • High-temperature: Prioritize Ge substrates with DLC coatings; Moist environments: Avoid ZnSe, opt for sapphire or silicon substrates.
  1. Balance Performance and Cost
  • High-end applications (e.g., aerospace): Ge substrate + IBS coatings; Industrial applications: Si substrate + electron beam evaporation for cost reduction.
  1. Validate Anti-Interference Capability
  • Confirm out-of-band rejection (e.g., OD3-level) via spectral testing; Test background noise suppression in real-world scenarios.

These configurations enable filters to accurately extract target signals, solving background interference in thermal imaging and low-concentration identification in gas detection, ultimately enhancing system reliability and sensitivity.
