Alexa Fluor 568 Filter Set

$261.00 USD

Sale Sold out

Shipping calculated at checkout.

Products for Alexa Fluor 568 30011- Whole Filter Set for Alexa Fluor 568 (Ex Filter + Em Filter + Dichroic Filter) - Not including Cube 10033-Excitation Filter - BP570nm - FWHM25nm - OD6 - Dia25mm (mounted) 10034-Emission Filter - BP615nm - FWHM40nm - OD6 - Dia25mm (mounted) 10035-Dichroic Mirror - Reflection@500-580nm / Transmission@600-700nm - 36 x 25mm 20001 - Filter Cube for Leica DMI8 20002 - Filter Cube for BX3 and IX3 (U-FF type) 20003 - Filter Cube for AX2 / BX2 and IX2 (U-MF2 type)

Quantity

Fluorophore Profile:

Compound Name
Alexa Fluor 568
Physical properties
excitation 579nm
emission 603nm
extinction coefficient 88000
quantum yield 0.69¹

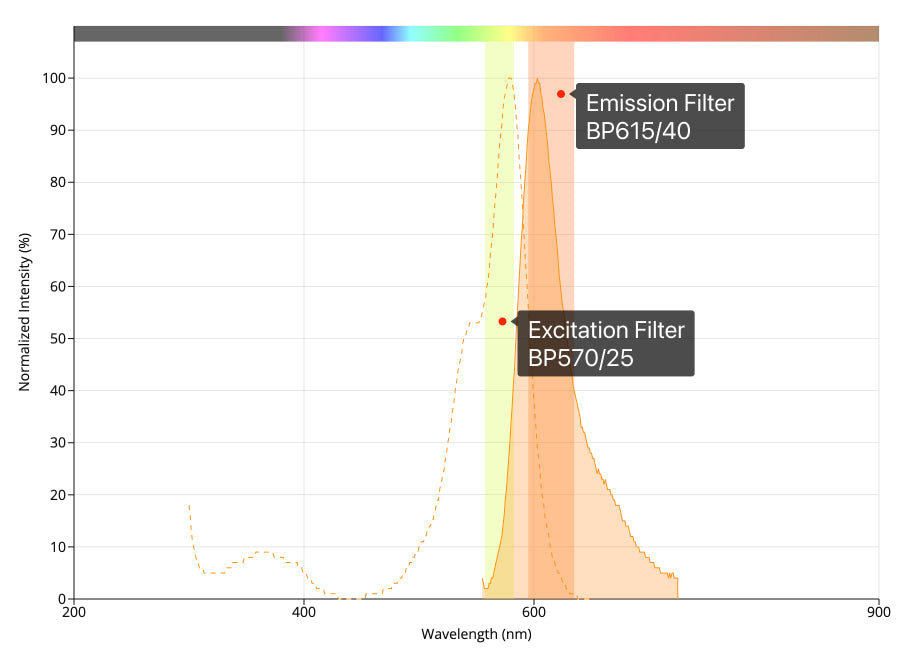

Fluorophore	Type	Peak (nm)	Peak Intensity (Ex_max)	Spillover (570/25 band pass)	Spillover (615/40 band pass)
Alexa Fluor 568	excitation	579	-	30.3%	9.5%
Alexa Fluor 568	emission	603	100%	5.8%	53.2%
