ATTO 550 Filter Set

$261.00 USD

Sale Sold out

Shipping calculated at checkout.

Products for ATTO 550 30025- Whole Filter Set for ATTO 550 (Ex Filter + Em Filter + Dichroic Filter) - Not including Cube 10075-Excitation Filter - BP545nm - FWHM20nm - OD6 - Dia25mm (mounted) 10076-Emission Filter - BP590nm - FWHM30nm - OD6 - Dia25mm (mounted) 10077-Dichroic Mirror - Reflection@450-550nm / Transmission@570-700nm - 36 x 25mm 20001 - Filter Cube for Leica DMI8 20002 - Filter Cube for BX3 and IX3 (U-FF type) 20003 - Filter Cube for AX2 / BX2 and IX2 (U-MF2 type)

Quantity

Fluorophore Profile:

Compound Name
Atto 550
Physical properties
excitation 553nm
emission 575nm
extinction coefficient 120000
quantum yield 0.80

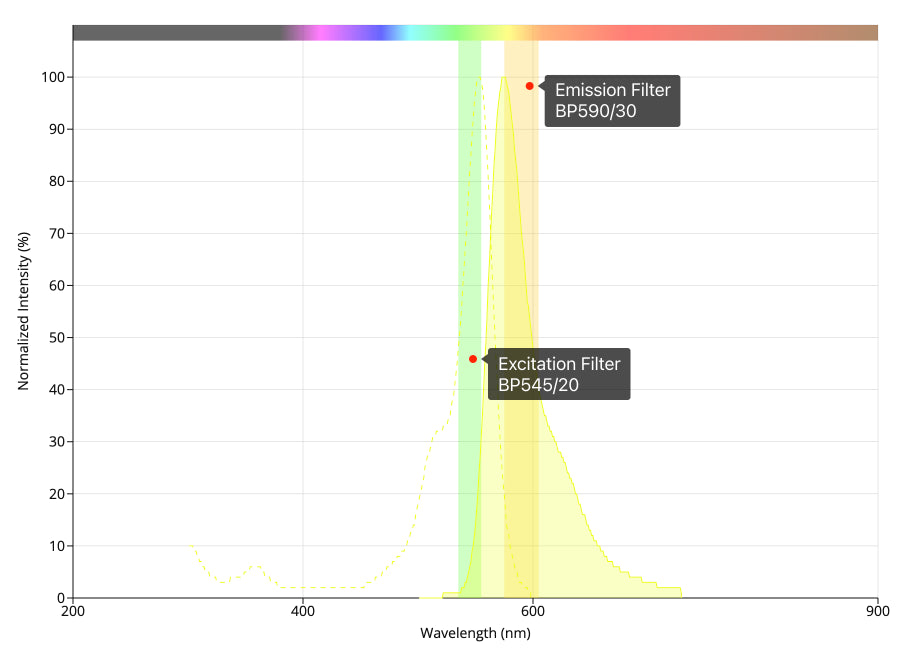

Fluorophore	Type	Peak (nm)	Peak Intensity (Ex_max)	Spillover (545/20 band pass)	Spillover (590/30 band pass)
Atto 550	excitation	553	-	32.3%	2.9%
Atto 550	emission	575	100%	3.4%	40%
