CY5.5 Filter Set

CY5.5 Filter Set

Regular price $261.00 USD
Regular price Sale price $261.00 USD
Sale Sold out
Shipping calculated at checkout.
Products for CY5.5

Cy5.5 is a CY dye. CY, short for Cyanine, is a compound consisting of two nitrogen atoms connected by an odd number of methyl units. Cyanine compounds have the characteristics of long wavelength, adjustable absorption and emission, high extinction coefficient, good water solubility and relatively simple synthesis. CY dyes are of en used for the labeling of proteins, antibodies and small molecular compounds. For the labeling of protein antibodies, the combination can be completed through a simple mixing reaction.

Fluorophore Profile:

Absorbance Max  = 683nm

Emission Max = 703nm

Filter Set Profile:

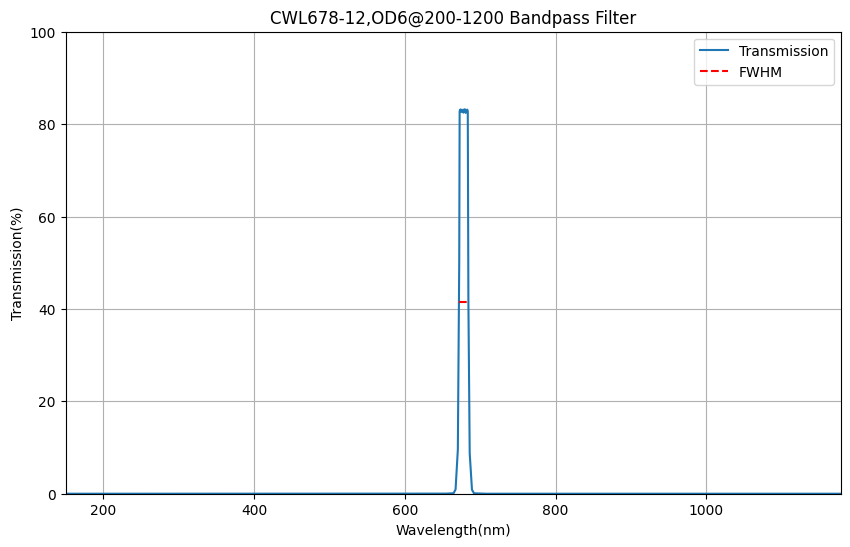

Excitation Filter = CWL678 + FWHM12nm @ OD6 (Peak Transmission 85%)

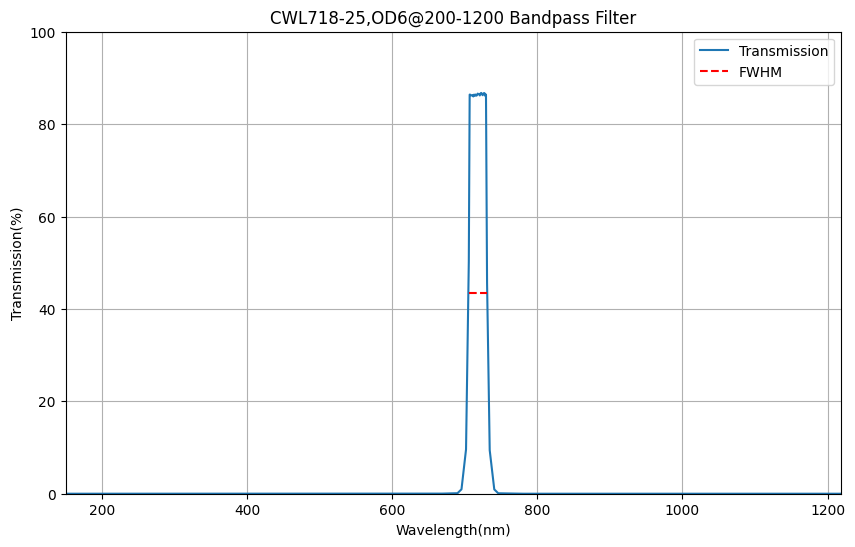

Emission Filter = CWL718nm + FWHM25nm @ OD6 (Peak Transmission 88%)

Dichroic Mirror: Transmission@690-800nm / Reflection@600-660nm
