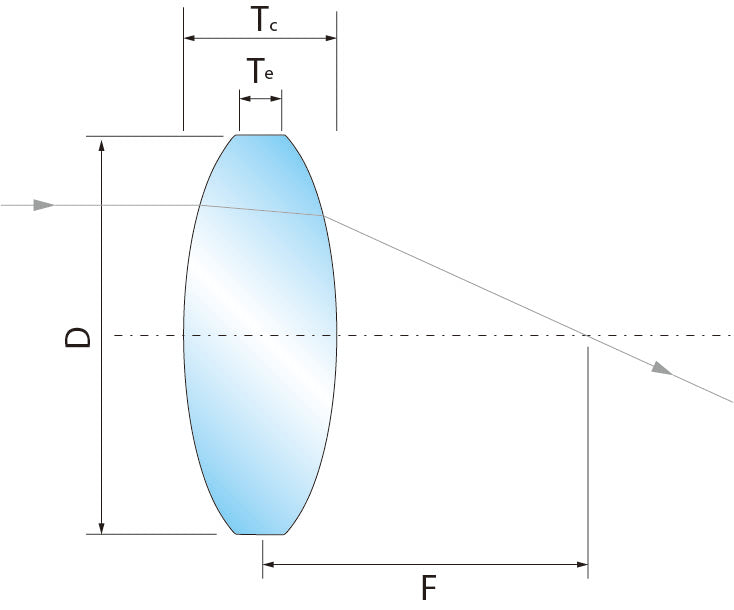

f=120 mm, Durchmesser 30 mm, AR@650–1050 nm, N-BK7, Doppelkonvexlinse (DCX)

Center Thickness:7.2mm
Edge Thickness:3mm
R=153.29mm
BFL:145.18mm
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.1mm
Focal Length Tolerance:±1%
Aperture:diameter＞90%
Design Wavelength:587.6nm
Refractive Index:1.5168
Surface Quality:40-20
Aperture number of spherical lens:3λ/2
Irregularity:λ/4
Centering Error:≤3'
