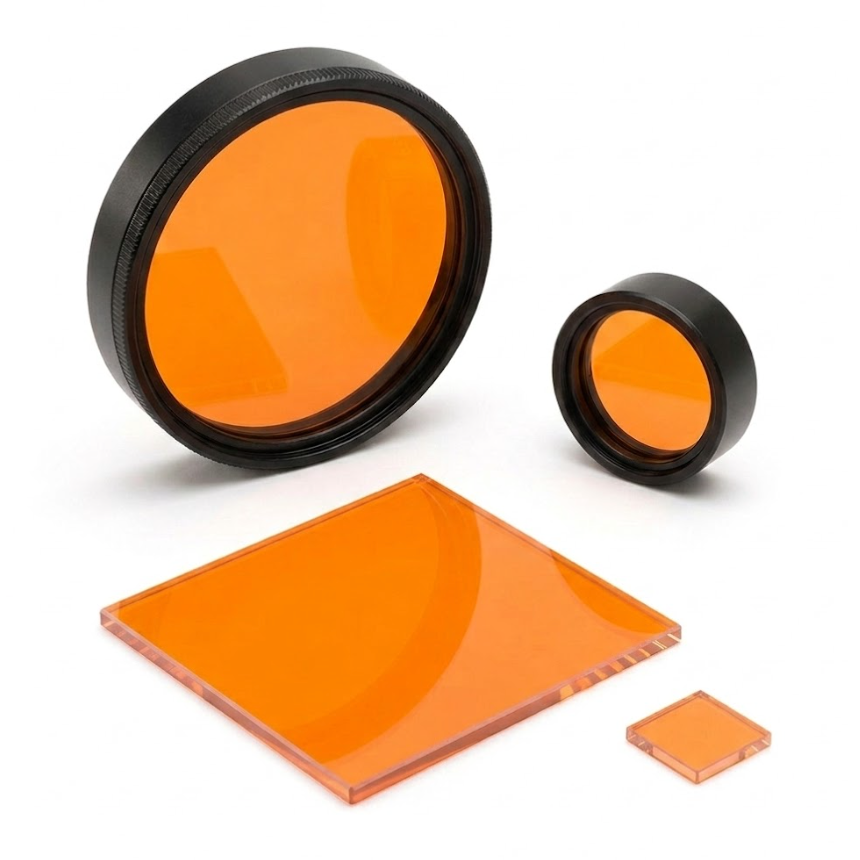

590nm Bandpass Filter

590nm light, falling within the yellow visible spectrum, exhibits specific wavelength selectivity and moderate penetration through certain media.

  • Application 1: In fluorescence detection systems, it isolates 590nm excitation or emission signals, eliminating extraneous wavelength interference to accurately capture optical information from target fluorescent markers.
  • Application 2: In industrial color sorting systems, it enables high-precision identification and classification of materials within yellow or specific spectral ranges by filtering 590nm reflected light.
  • Application 3: In biomedical instruments such as microplate readers, its bandwidth restriction properties allow only 590nm light to pass, ensuring accurate measurement of absorbance values in specific chromogenic reactions and reliability of biochemical test results.

590nm Filter Selection Guide: Typical Applications and Configuration Analysis

I. Fluorescence Signal Separation in Fluorescence Microscopy

Application Scenarios

In biomedical research, 590nm filters are commonly used in fluorescence microscopes for detecting fluorescent dyes with emission wavelengths between 600-650nm (e.g., Texas Red). These dyes are typically used to label antibodies, nucleic acids, or proteins, enabling visualization of cellular structures or molecular activities.

Filter Configuration Requirements

1. Excitation Filter: Select a 590nm bandpass filter (e.g., BP590nm) with a bandwidth of 10-20nm.

  • Core Function: Allows only 590nm-near excitation light to pass through, minimizing interference from other wavelengths that could reduce dye excitation efficiency.
  • Key Parameters: Strict bandwidth control is essential. A 10nm bandwidth precisely matches the excitation peak of Texas Red (596nm), ensuring pure excitation light.

2. Dichroic Mirror: Use a 595nm long-pass dichroic mirror (e.g., DM595).

  • Core Function: Reflects 590nm excitation light onto the sample while transmitting longer-wavelength fluorescence signals (e.g., 615nm) to the detection end.
  • Key Parameters: Requires ≥90% reflectivity around 590nm and ≥90% transmittance between 610-800nm to minimize signal loss.

3. Emission Filter: Choose a 590nm long-pass filter (e.g., LP590).

  • Core Function: Blocks unabsorbed excitation light and background noise, allowing only fluorescence signals above 610nm to pass through.
  • Key Parameters: Demands a cut-off depth of ≥OD5 (transmittance <0.001%) in the 300-575nm range to ensure high signal-to-noise ratio (SNR).

Selection Logic and Problem Solving

  • Preventing Crosstalk: A too-wide excitation filter bandwidth (e.g., 50nm) may introduce stray light from adjacent wavelengths, increasing background noise. For instance, 560nm light inclusion could excite other fluorescent dyes or autofluorescence.
  • Optimizing Signal Intensity: Inadequate dichroic mirror reflectivity (e.g., 80% instead of 90%) leads to excitation light loss, reducing fluorescence signal strength and detection sensitivity.
  • Enhancing Detection Specificity: The high cut-off depth (OD5) of the emission filter effectively suppresses residual excitation light transmission, preventing misinterpretation of 590nm light as fluorescence signals (e.g., OD3 would allow insufficient suppression).

II. Color Sorting and Material Identification in Industrial Inspection

Application Scenarios

In food processing or material sorting, 590nm filters are used to detect specific color impurities or components. For example, in grain sorting systems, they identify yellow 颗粒 (yellow particles) by analyzing reflected spectra to remove off-color impurities.

Filter Configuration Requirements

1. Narrow Bandpass Filter: Select a 590nm bandpass filter (e.g., BP590nm) with a 10-20nm bandwidth.

  • Core Function: Enhances contrast for target colors (e.g., yellow) by suppressing interference from other colors (e.g., green, red).
  • Key Parameters: Bandwidth must match the absorption/reflection spectrum of the target material. A 10nm bandwidth, for instance, precisely separates the 590nm reflection peak from the green spectrum (500-560nm) when detecting green impurities in yellow grains.

2. Short-Pass Filter: Choose a 590nm short-pass filter (e.g., SP590) with a cut-off wavelength at 590nm.

  • Core Function: Transmits visible light between 350-570nm while blocking long waves above 620nm, suitable for detecting reflected light from yellow materials (580-590nm).
  • Key Parameters: Requires a cut-off depth of ≥OD4 (transmittance <0.01%) in the 620-1100nm range to eliminate interference from long-wave background light.

Selection Logic and Problem Solving

  • Improving Detection Accuracy: A wide filter bandwidth (e.g., 50nm) may include adjacent color spectra, leading to misjudgments. For example, a 590nm±25nm bandwidth could include both yellow (580-590nm) and orange (590-620nm), reducing sorting precision.
  • Adapting to Complex Environments: In outdoor or high-natural-light settings, the high cut-off depth of short-pass filters blocks long-wave components (e.g., infrared light) in sunlight, ensuring stable detection. Insufficient cut-off depth (e.g., OD3) may cause sensor saturation from infrared light, disrupting signal analysis.
  • Matching Light Source Characteristics: When using LED light sources, filter selection should align with the light source's peak wavelength. A 590nm LED paired with a BP590nm filter maximizes energy utilization and minimizes signal attenuation.

III. General Selection Principles and Summary

1. Spectral Matching: Choose filters with center wavelength and bandwidth that align with the target material's excitation/emission or reflection spectra. Fluorescence detection requires strict matching to dye excitation/emission peaks, while color sorting needs precise separation of target and background spectra.

2. Balancing Bandwidth and Cut-Off Depth: Narrow bandwidths improve specificity but must ensure adequate signal intensity; high cut-off depths suppress interference without excessively attenuating target signals. For example, the LP590 filter's OD5 cut-off in microscopy reduces noise while maintaining high transmittance for 610nm+ fluorescence.

3. Environmental Considerations: In industrial applications, select filters with anti-reflective coatings and durable materials (e.g., hard-coated filters) to withstand high temperatures, humidity, or vibrations, reducing scratches and extending service life.

By following these configurations, 590nm filters achieve highly specific signal separation in fluorescence microscopy and improve sorting accuracy in industrial inspection, effectively addressing signal interference and detection precision issues in complex optical environments.
