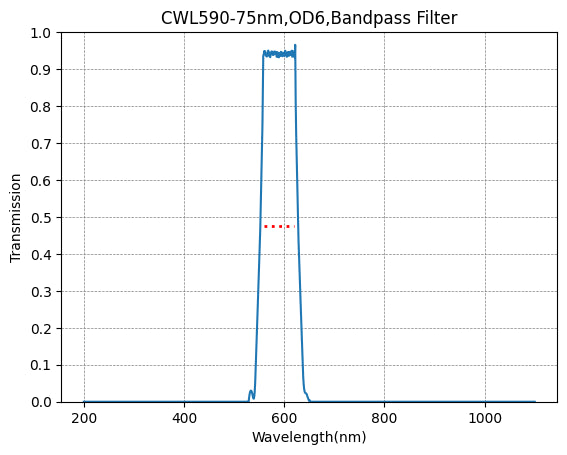

• Graph of transmission vs wavelength for a bandpass filter with peak at 590 nm.
  • Graph of transmission vs wavelength for a bandpass filter with peak at 590 nm.
1 3

BP590-75 Bandpass Filter(CWL=590nm,FWHM=75nm)

BP590-75 Bandpass Filter(CWL=590nm,FWHM=75nm)

PN:SO3010331

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

High-Throughput Broad-Band Filter - BP590-75

Maximize light collection efficiency with our BP590-75 bandpass filter, designed for applications requiring excellent throughput at 590nm wavelength with broad 75nm spectral coverage.

Key Specifications:

  • Center Wavelength (CWL): 590nm - Yellow-orange wavelength transmission
  • Full Width Half Maximum (FWHM): 75nm - Broad bandwidth for maximum light collection
  • Superior Transmission: High-efficiency coating for optimal light throughput
  • Smooth Spectral Response: Consistent transmission across the entire passband
  • Practical Edge Performance: Effective out-of-band rejection with broad coverage
  • Robust Design: Stable performance across operating conditions

High-Efficiency Applications:

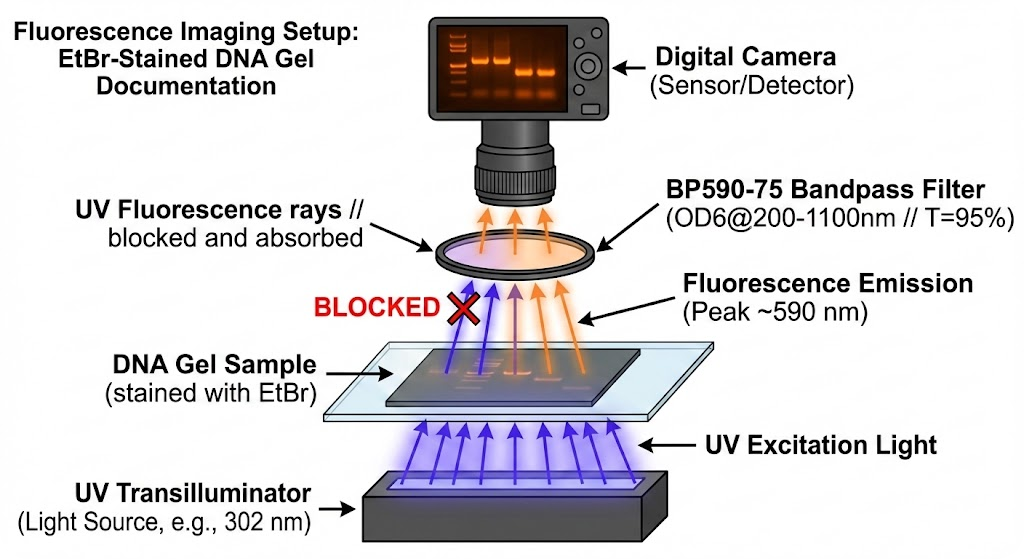

  • General fluorescence microscopy - Excellent for broad-spectrum yellow fluorophores

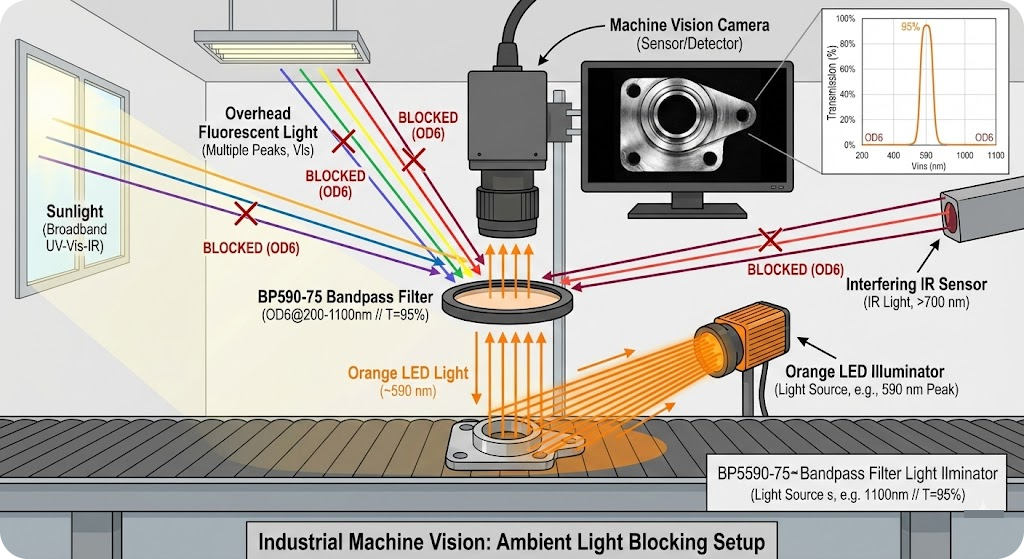

  • Machine vision and automated inspection systems
  • LED characterization and photometric measurements
  • Biomedical imaging with high sensitivity requirements
  • Color sorting and optical classification systems
  • Industrial quality control and inspection
  • Educational and training laboratory applications
  • Photography and general imaging systems

Performance Benefits:

The broad 75nm bandwidth delivers maximum light collection efficiency while providing useful spectral discrimination. This makes it perfect for applications where signal strength is the primary concern and moderate filtering is sufficient.

Application Advantages:

Ideal for light-limited environments where you need to capture as much signal as possible. The wide bandwidth ensures excellent signal-to-noise ratios while still maintaining practical spectral selectivity for most applications.

Why Choose SyronOptics BP590-75?

Our broad-band filters deliver consistent optical performance with reliable manufacturing quality. Each filter is engineered to provide maximum light efficiency while maintaining the professional standards required for demanding applications.

Efficient optical component trusted by engineers, researchers, and system integrators for applications requiring high light throughput with practical spectral filtering capabilities.

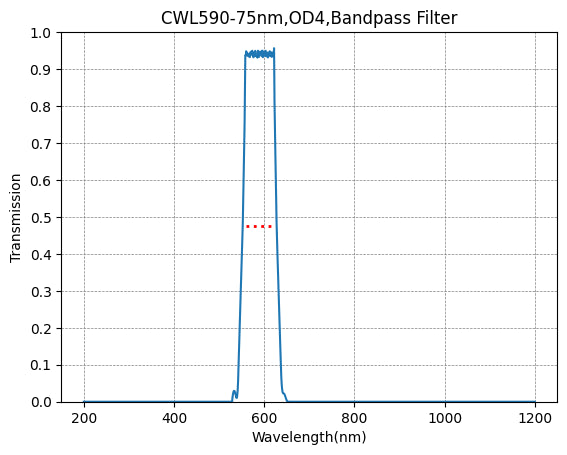

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
