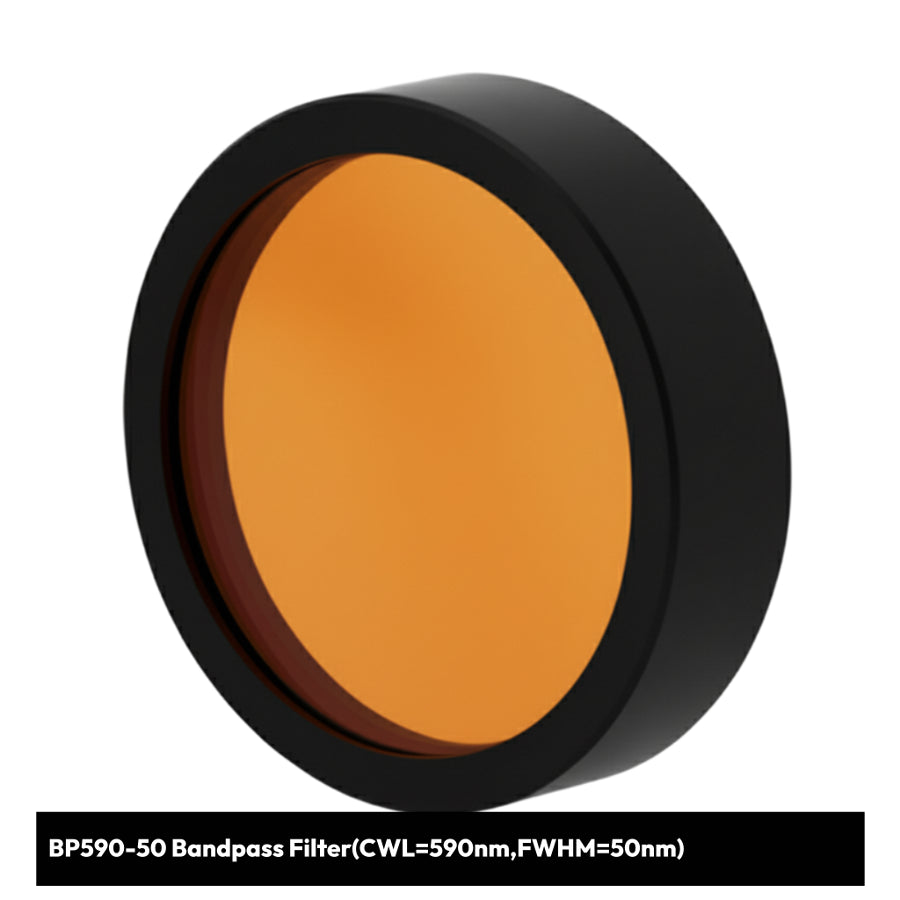

BP590-50 Bandpass Filter(CWL=590nm,FWHM=50nm)

BP590-50 Bandpass Filter - Broad Bandwidth Yellow-Orange Performance

The BP590-50 bandpass filter is engineered for applications demanding broad spectral coverage in the yellow-orange region. With a 590nm center wavelength and broad 50nm FWHM bandwidth, this filter delivers exceptional light throughput while maintaining OD6 blocking of unwanted wavelengths, making it ideal for fluorescence microscopy, biological imaging, and multi-color detection systems.

Key Features

• Center Wavelength (CWL): 590nm - optimized for yellow-orange light applications
• Broad Bandwidth: 50nm FWHM for maximum light collection and signal strength
• Exceptional Blocking: OD6 optical density ensures 1,000,000:1 rejection of unwanted wavelengths
• High Transmission: Optimized coatings maximize throughput across the passband
• Premium Quality: Hard-coated surfaces for long-term durability and stability

Applications

Perfect for applications requiring broad yellow-orange light transmission including:

• Fluorescence microscopy with red-shifted fluorophores (Texas Red, mCherry, DsRed)
• Biological imaging and live-cell microscopy
• Flow cytometry and multi-color cell analysis
• Confocal microscopy and multi-photon imaging
• LED-based illumination and imaging systems
• Machine vision and color separation applications
• Spectroscopy and photometric analysis
• Bioluminescence and chemiluminescence detection

Technical Excellence

The 590nm wavelength sits at a critical position in the visible spectrum, bridging the gap between yellow and orange light. Our BP590-50 filter's broad 50nm bandwidth (spanning approximately 565-615nm) maximizes light collection efficiency, providing superior signal strength for fluorescence applications while maintaining exceptional spectral selectivity with OD6 (1,000,000:1) blocking performance.

This broad bandwidth design is particularly advantageous for fluorescence microscopy applications involving red-shifted fluorescent proteins and dyes. The wide passband efficiently captures the full emission spectrum of fluorophores like Texas Red, mCherry, and DsRed, maximizing signal-to-noise ratios and reducing exposure times in live-cell imaging experiments.

The OD6 blocking performance ensures that even weak fluorescence signals can be detected without interference from excitation light or emissions from other fluorophores in multi-color imaging experiments. This exceptional out-of-band rejection is critical for sensitive biological imaging applications where signal levels may be limited by photobleaching or phototoxicity concerns.

Manufactured using advanced ion-beam sputtering technology, the BP590-50 delivers consistent performance across the entire aperture with minimal transmission variation. The hard-coated surfaces ensure durability in demanding laboratory environments, maintaining optical quality through years of continuous use in fluorescence microscopy systems.

The 50nm bandwidth also provides excellent compatibility with LED-based illumination sources, which typically exhibit broader emission spectra than laser sources. This makes the filter ideal for modern LED-based microscopy systems and machine vision applications where broad spectral coverage is essential for maximum light efficiency.

Whether you're conducting fluorescence imaging with red fluorescent proteins, performing multi-color flow cytometry, developing LED-based optical systems, or working with biological samples, the BP590-50 provides the perfect balance of broad spectral coverage, maximum light throughput, and exceptional blocking performance. Trust SyronOptics for optical components that deliver research-grade performance for demanding biological imaging applications.
