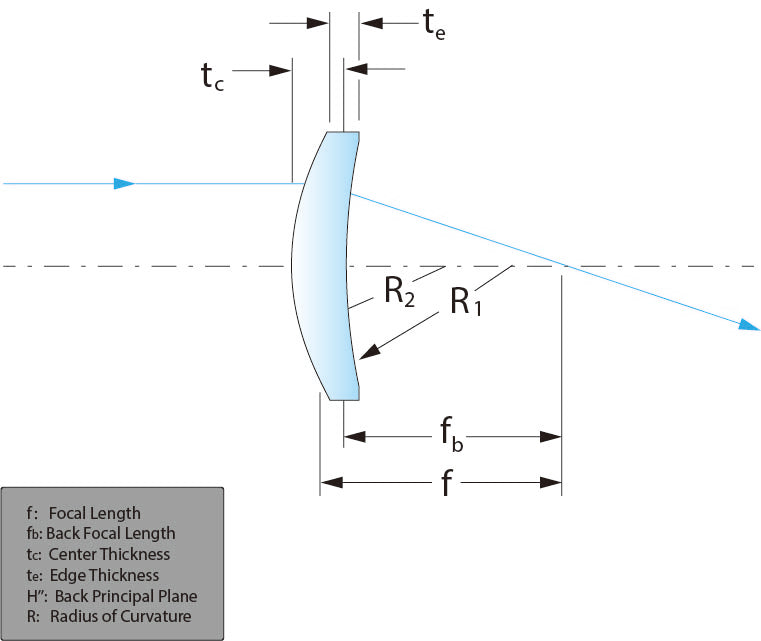

f=25.4mm、直径25mm、AR@8-12μm、ZnSe、正メニスカスレンズ(PML)

Center Thickness:4.8mm
Edge Thickness:2.5mm
R=23.7-64.2mm
BFL:22.1mm
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Focal Length Tolerance:±1%
Design Wavelength:10.6um
Surface Quality:60-40
Centering Error:＜3'
Bevel:0.2mm
Chamfer:45°
