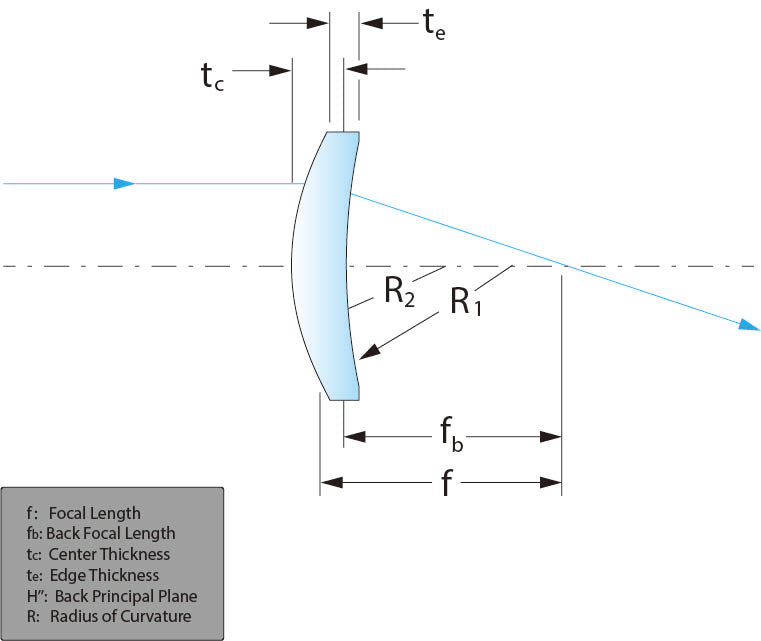

f=250mm、直径25mm、AR@8-12μm、ZnSe、正メニスカスレンズ(PML)

Center Thickness:2.8mm
Edge Thickness:2.5mm
R=225-621mm
BFL:248.7mm
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Focal Length Tolerance:±1%
Design Wavelength:10.6um
Surface Quality:60-40
Centering Error:＜3'
Bevel:0.2mm
Chamfer:45°
