Collection: 532nm Bandpass Filter

As green light in the visible spectrum, 532nm light exhibits high monochromaticity, coherence, and specific energy output, typically generated by frequency-doubled solid-state lasers (e.g., Nd:YAG).

  • Application 1: In laser marking and cutting systems, the 532nm bandpass filter blocks stray light of non-target wavelengths, concentrating 532nm laser energy onto non-metallic surfaces (e.g., plastics, ceramics) for high-precision marking and intricate material processing.

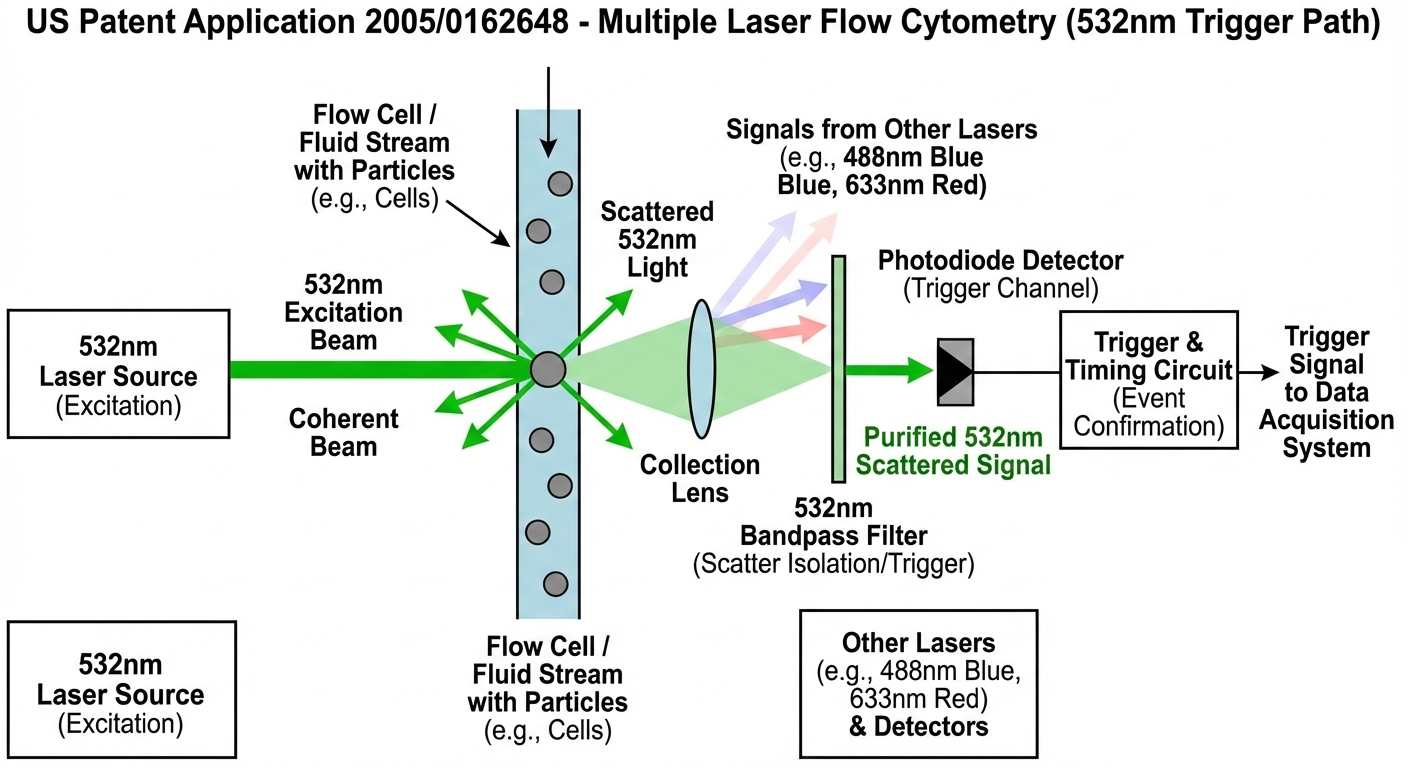

  • Application 2: For biomedical detection in flow cytometers or fluorescence microscopes, this filter isolates fluorescence signals excited by 532nm light, eliminating background noise to enhance sensitivity and accuracy in cell sorting or fluorescent imaging.

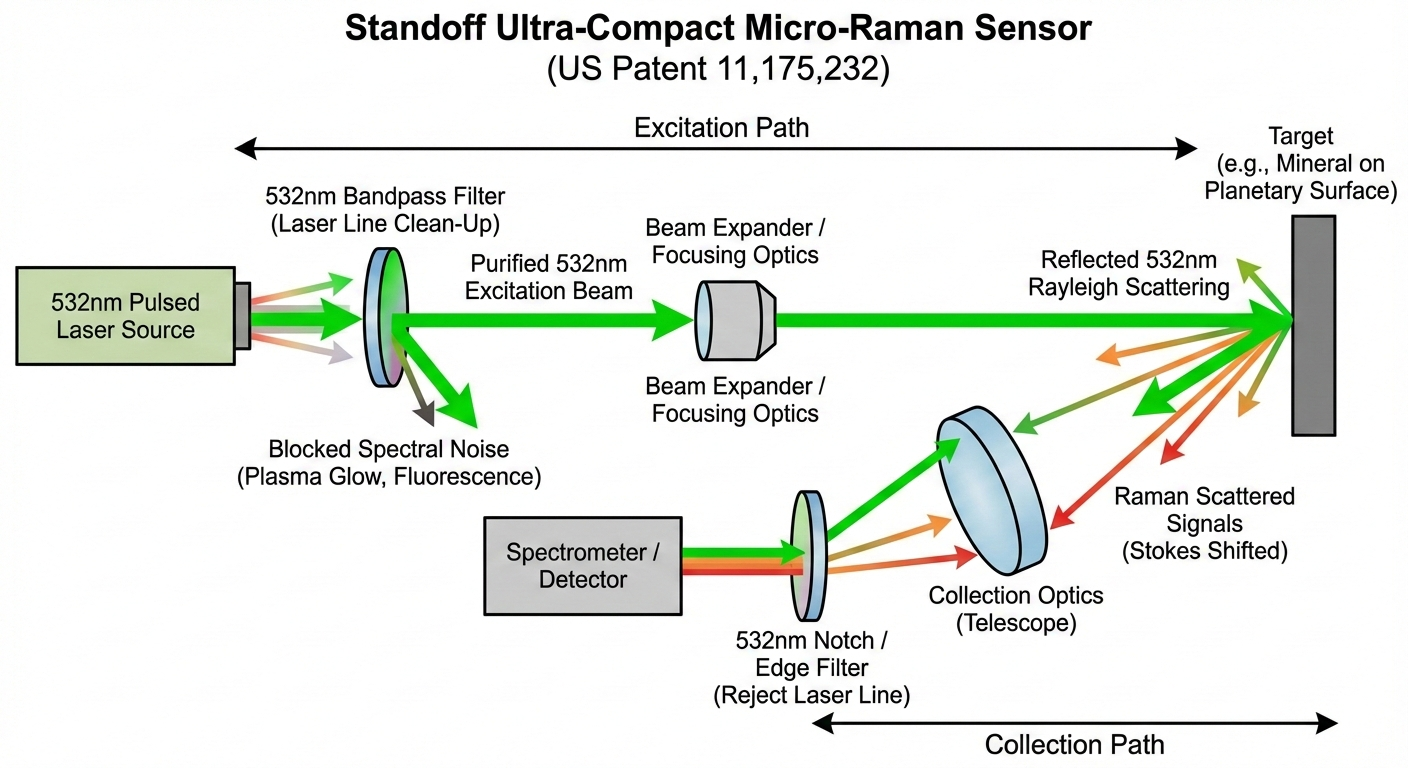

  • Application 3: In environmental monitoring using Raman spectrometers, the 532nm bandpass filter suppresses intense scattered light and noise, allowing only the 532nm excitation light to focus on samples—enabling clear acquisition of characteristic Raman signals from molecular vibrations for precise contaminant composition analysis.

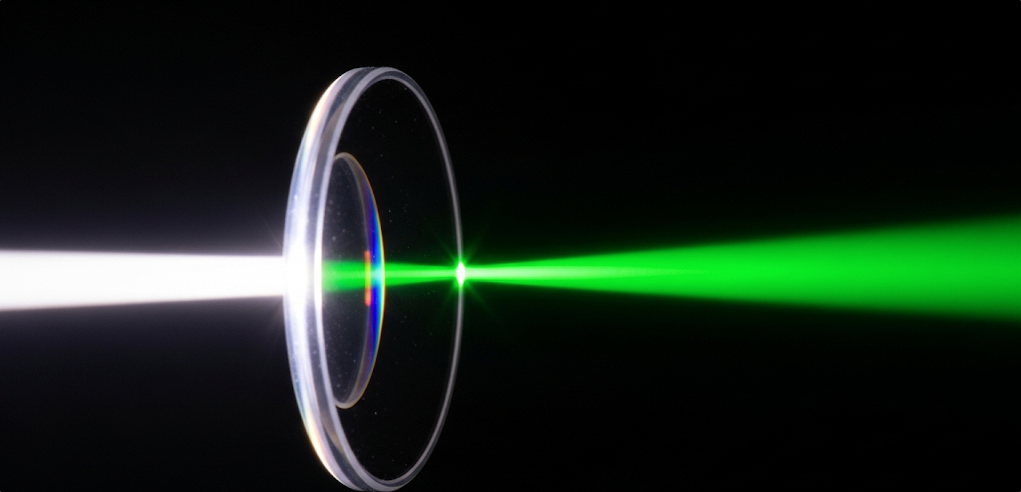

532nm Bandpass Filter

532nm Filter Selection Guide: Key Applications and Configuration Logic

1. Filter Configuration for Laser Rangefinders

Core Requirement

Accurately identify 532nm laser echo signals in high-light environments while suppressing interference from sunlight and ambient stray light.

Critical Parameter Specifications

a. Central Wavelength & Bandwidth

Select a narrowband filter with a central wavelength of 532nm ±5nm and a bandwidth of 10–30nm. The narrow bandwidth effectively filters out non-laser ambient light (e.g., visible and infrared components in sunlight), ensuring the receiver captures only laser pulse signals. For example, a 10nm bandwidth filter restricts the signal within the laser source's spectral width, minimizing crosstalk from adjacent wavelengths.

b. Peak Transmittance & Cut-off Depth

Require peak transmittance >80% and a cut-off rate T<0.1% (OD4) in non-passband regions (400–510nm and 552–1100nm). High transmittance minimizes laser signal loss, while deep cut-off reduces ambient light intensity by over 99.99%, significantly improving the signal-to-noise ratio (SNR). In direct sunlight, an OD4 filter attenuates background interference to levels that do not affect ranging accuracy.

c. Anti-Reflective Coating

Apply multi-layer anti-reflective coatings to reduce surface reflectance to <0.2%. This design minimizes reflection loss at the filter surface, particularly in multi-layer optical systems (e.g., lens-filter assemblies), preventing stray light interference caused by reflected laser beams.

Design Considerations

The primary challenge for laser rangefinders is extracting weak laser echoes from intense background light. The wavelength selectivity of narrowband filters isolates laser signals from complex ambient spectra, while high cut-off depth and anti-reflective coatings enhance signal purity. This configuration ensures stable operation under extreme conditions—e.g., a rangefinder using a 20nm bandwidth OD4 filter reduced outdoor ranging error from ±0.5m to ±0.1m in sunny environments.

2. Filter Set Configuration for Raman Spectrometers

Core Requirement

Separate 532nm excitation light from weak Raman scattering signals while suppressing stray light and fluorescence interference.

Critical Parameter Specifications

a. Excitation Light Isolation Filter

Use a notch filter with a central wavelength of 532nm and cut-off depth ≥OD8. This filter attenuates excitation light to <0.0001% of its original intensity, preventing it from overwhelming Raman signals. For low-scattering materials like graphene, an OD8 filter ensures detected Raman signals exceed residual excitation noise.

b. Raman Signal Bandpass Filter

Select a narrowband filter with 10–20nm bandwidth, covering the wavelength range corresponding to target Raman shifts (200–4000cm⁻¹). For example, a 16cm⁻¹ bandwidth filter clearly resolves the second-order peak of silicon wafers, avoiding spectral overlap with adjacent peaks.

c. Dichroic Mirror & Long-Pass Filter Combination

Employ a dichroic mirror (e.g., RT532rdc) to reflect 532nm excitation light and transmit Raman signals, paired with a long-pass filter (e.g., RET537lp) to further eliminate residual excitation light. This combination enables efficient separation of excitation and signal light while maintaining high Raman signal throughput.

Design Considerations

Raman spectroscopy faces the challenge of excitation light being 4–6 orders of magnitude stronger than Raman signals. The ultra-deep cut-off of notch filters reduces excitation residuals to detector noise levels, while the 协同作用 of narrowband filters and dichroic mirrors ensures high Raman signal transmission and suppression of fluorescent backgrounds. A portable Raman spectrometer using an OD8 notch filter achieved single-cell-level detection of chicken adipocyte Raman signals, demonstrating improved sensitivity.

3. Key Selection Criteria

- Spectral Characteristics of Application Scenarios

  • Laser Rangefinders: Prioritize ambient light spectral distribution and select narrowband filters precisely matched to the laser wavelength.
  • Raman Spectrometers: Consider both excitation light purity and Raman signal spectral range, often requiring collaborative filter set designs.

- Optical System Compatibility

Ensure filter dimensions (e.g., 25mm×25mm or custom sizes) and mounting methods (threaded interfaces, snap rings) match the optical path structure. Compact rangefinders may require 2mm-thick filters to minimize optical path length.

- Long-Term Stability Requirements

In industrial/medical environments, choose filters with robust coatings (e.g., ion-assisted deposition hard coatings) to withstand temperature changes, humidity, and mechanical vibrations.By following this configuration logic, users can achieve precise 532nm filter selection for specific applications, optimizing signal purity, detection sensitivity, and long-term reliability.
