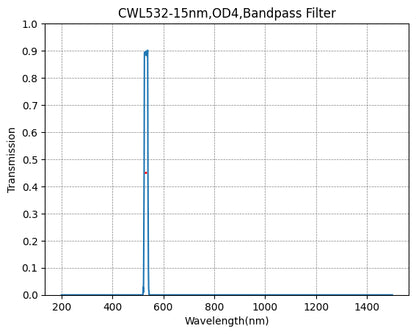

• Graph showing the transmission verses wavelength for a bandpass filter with a central wavelength of 532nm and a bandwidth of 15nm.
1 2

BP532-15 Bandpass Filter(CWL=532nm,FWHM=15nm)

BP532-15 Bandpass Filter(CWL=532nm,FWHM=15nm)

PN:SO3010257

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

High-Precision Narrow-Band Filter - BP532-15

Achieve exceptional spectral precision with our BP532-15 bandpass filter, engineered for high-precision applications requiring narrow-band transmission at 532nm wavelength.

Key Specifications:

  • Center Wavelength (CWL): 532nm - Precise green wavelength transmission
  • Full Width Half Maximum (FWHM): 15nm - Narrow bandwidth for high selectivity
  • Superior Transmission: Advanced coating technology for optimal light throughput
  • Sharp Edge Performance: Steep spectral transitions for excellent out-of-band rejection
  • Low Passband Ripple: Smooth transmission characteristics for consistent performance

High-Precision Applications:

  • LiDAR systems - Perfect for 532nm laser-based ranging and detection applications
  • High-resolution fluorescence microscopy
  • Precision spectroscopy and analytical systems
  • Laser line filtering and cleanup applications
  • Advanced flow cytometry with narrow emission band detection
  • Scientific imaging with enhanced contrast
  • Research-grade optical instrumentation
  • Quality control and metrology applications

Technical Advantages:

The narrow 15nm bandwidth provides exceptional spectral purity, making this filter ideal for applications where precise wavelength discrimination is critical. The sharp filter edges minimize crosstalk from adjacent spectral regions while maintaining sufficient light collection for sensitive applications.

Performance Benefits:

Engineered for systems requiring high spectral selectivity without compromising signal strength. The carefully optimized bandwidth delivers excellent wavelength discrimination while preserving adequate light intensity for sensitive detection applications.

Why Choose SyronOptics BP532-15?

Our precision-manufactured bandpass filters deliver consistent performance with tight wavelength tolerances. Each filter undergoes comprehensive optical testing to ensure it meets demanding specifications for research and industrial applications.

Professional-grade optical component trusted by researchers, optical engineers, and system integrators worldwide for critical narrow-band filtering applications requiring high spectral precision.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
