• Spectral transmission graph with a peak at around 500 nm on a white background
1 2

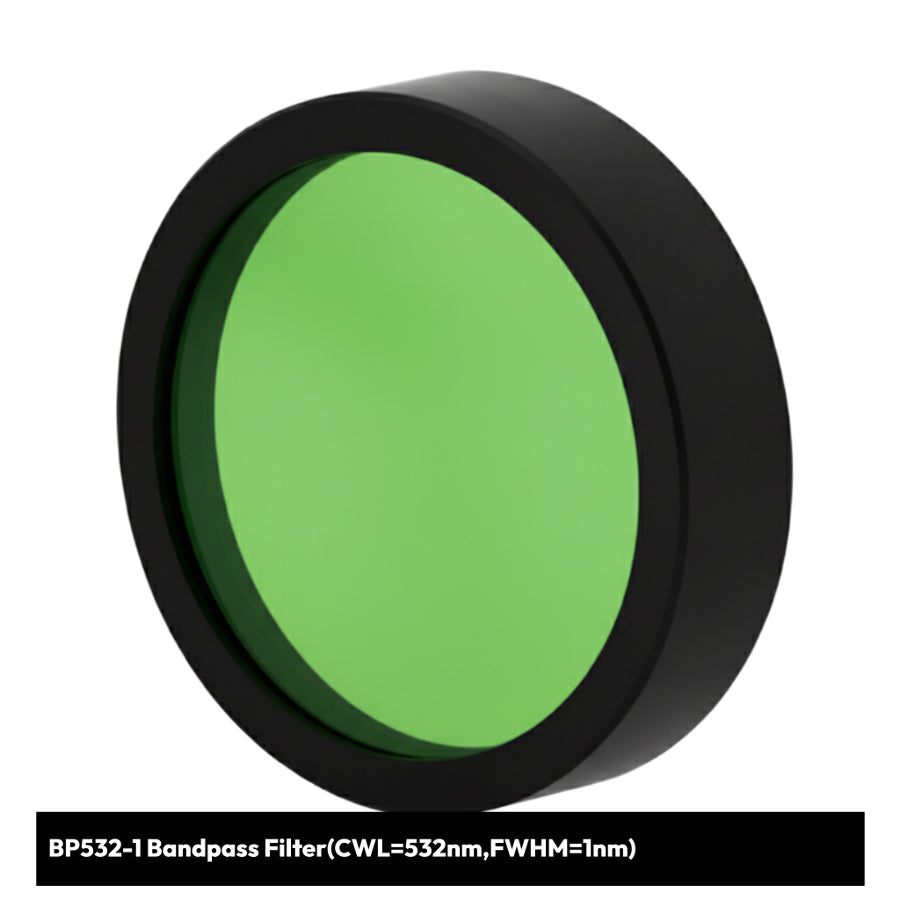

BP532-1 Bandpass Filter(CWL=532nm,FWHM=1nm)

BP532-1 Bandpass Filter(CWL=532nm,FWHM=1nm)

PN:SO3010255

$375.00 USD
$375.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Ultimate Precision Green Laser Bandpass Filter

The BP532-1 Bandpass Filter represents the absolute pinnacle of spectral precision at 532nm with an extraordinarily narrow 1nm full-width half-maximum (FWHM). This ultra-premium filter delivers unmatched wavelength selectivity for the most critical laser and sensing applications where absolute spectral purity is non-negotiable.

Key Features & Benefits

  • Ultimate Wavelength Precision: CWL=532nm ±0.5nm for unparalleled green laser accuracy
  • Extraordinarily Narrow Bandwidth: 1nm FWHM provides the ultimate in spectral selectivity
  • High Transmission: >90% peak transmission despite ultra-narrow bandwidth
  • Exceptional Blocking: Superior out-of-band rejection eliminates all unwanted wavelengths
  • Premium Construction: Advanced hard-coated surfaces ensure maximum stability and performance

Mission-Critical Applications

Essential for LiDAR remote sensing, Raman spectroscopy, Nd:YAG laser line clean-up, and ultra-high-precision laser applications. The 532nm wavelength with 1nm precision is indispensable for systems requiring absolute spectral purity and zero tolerance for any wavelength contamination.

Unmatched Excellence

When your application demands the absolute ultimate in spectral precision and purity at 532nm, this filter stands alone. The extraordinarily narrow 1nm bandwidth ensures you capture only the exact wavelength required while completely eliminating all spectral interference, making it the definitive choice for LiDAR systems, Raman spectroscopy, laser line clean-up, and the most demanding optical measurements where perfection is the only acceptable standard.

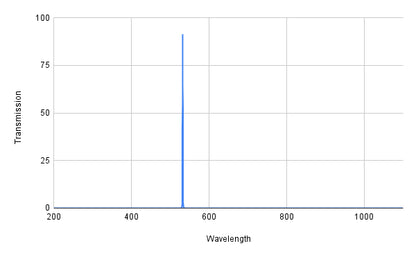

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
