BP594-70 대역 통과 필터(CWL=594nm, FWHM=70nm)

BP594-70 대역 통과 필터(CWL=594nm, FWHM=70nm)

부품 번호: SO3010333

$55.00 USD
$55.00 USD
할인 품절
배송료는 결제 시 계산됩니다.

중심 파장(CWL) // FWHM
광학 밀도 // 최대 투과율(Tpk)
차원

In Stock.

Ships within 5 working days of order. Customs handling including. (DDP)

Net 30 payment terms for organizational purchase orders.

Email shop@syronoptics.com For Customization Options

  • 파장: 황색-주황색 조명 응용 분야에 적합한 594nm 중심 파장(CWL)
  • 분광 특성: 높은 처리량과 광대역 커버리지를 위한 70nm FWHM 대역폭
  • 광학 밀도: OD4+ 차단으로 효과적인 대역 외 차단
  • 필터 크기 및 장착 옵션: 표준 광학 시스템에 맞는 다양한 장착 옵션을 사용할 수 있습니다.

전송 및 OD 데이터

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

배송 및 배달

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

반품 및 환불

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

사용자 정의 크기

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

지불

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

전체 세부 정보 보기

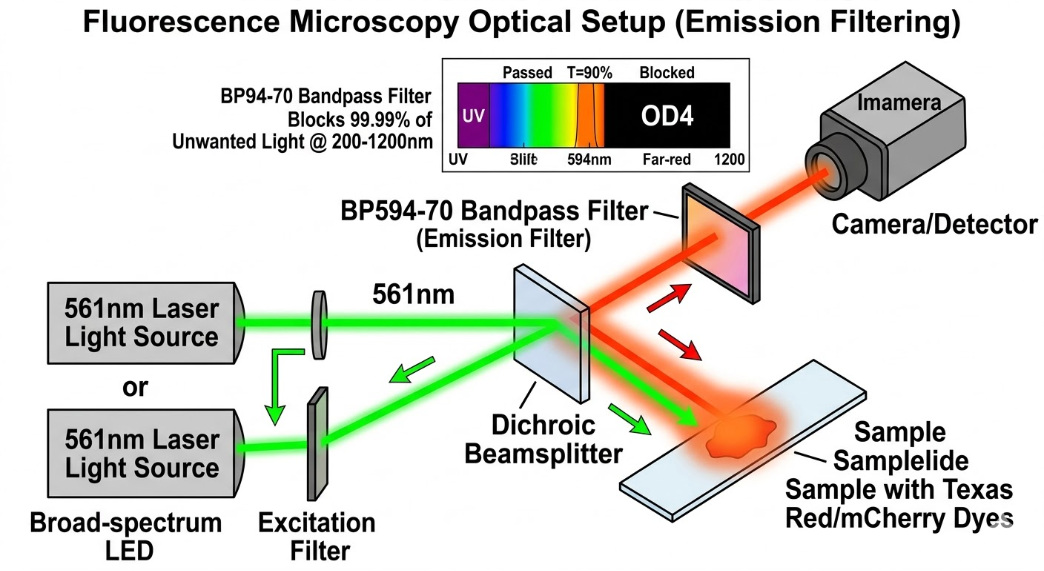

  • BP594-70 Bandpass Filter - Fluorescence Microscopy (Life Sciences)

    BP594-70 Bandpass Filter - Fluorescence Microscopy (Life Sciences)

    Fluorescence Microscopy (Life Sciences)

    Scientists use special glowing dyes (like "Texas Red" or "mCherry") to tag and study specific parts of microscopic cells. This filter acts as a perfect "emission filter." It captures the specific glowing orange/red light emitted by these dyes while using its high OD4 rating to completely block out all other harsh background light, making the cells light up clearly against a dark background.

    Recommended light source:

    • 561nm or 594nm Laser light source: highly concentrated and powerful, making it perfect for exciting the fluorescent dyes to glow brightly without bleeding into the filter's viewing window.
    • Broad-spectrum LED (paired with an excitation filter) light source: a safer, more cost-effective option for general lab microscopes that still provides enough energy to make the cellular dyes glow.

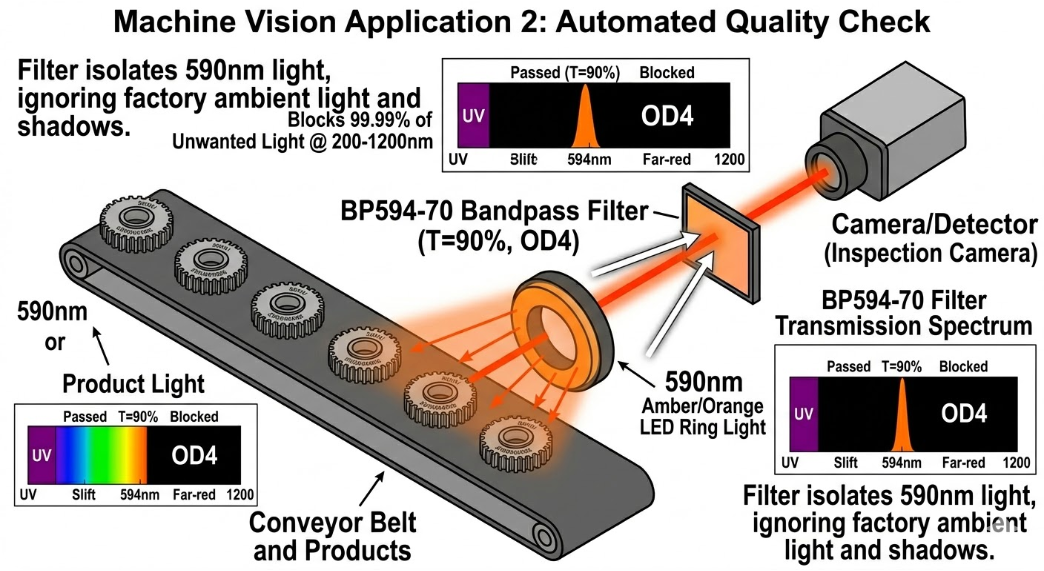

  • BP594-70 Bandpass Filter - Machine Vision and Automated Inspection

    BP594-70 Bandpass Filter - Machine Vision and Automated Inspection

    Machine Vision and Automated Inspection

    Factories use cameras to automatically check products on fast-moving conveyor belts. By equipping the camera with this filter and shining a matching colored light on the products, the camera easily ignores bright overhead factory lights, sunlight from windows, and moving shadows. It only "sees" the illuminated product, making automated quality checks incredibly stable and accurate.

    Recommended light source:

    • 590nm (Amber/Orange) LED Ring light source: highly energy-efficient, lasts a very long time, and perfectly matches the filter's "window" to create bright, high-contrast images of the inspected parts.
    • Halogen lamp light source: produces a massive amount of warm light (heavy in yellows and reds), which is useful if you need to illuminate a very large area on the factory floor and are relying on the camera's filter to cut out the rest.

자주 묻는 질문

마운팅의 차이점은 무엇인가요?

다양한 유형의 필터 마운팅

광학 필터의 두께는 얼마입니까?

광학 필터의 두께는 어떻게 되나요?

Can I request a custom wavelength or size?

Yes, we support custom center wavelength (CWL), bandwidth (FWHM), dimensions, and mounting options. Contact us with your requirements for recommendations.

What is the difference between mounted and unmounted filters?

Unmounted filters are bare optics suitable if you already have a holder. Mounted filters come in an anodized aluminum ring (with or without threading) for easier system integration.

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    >90%

    장착 두께:

    n.a

    내부/외부 스레드:

    n.a / n.a

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia9mm

    장착 두께:

    3.5mm

    내부/외부 스레드:

    n.a / n.a

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia21mm

    장착 두께:

    3.5mm

    내부/외부 스레드:

    n.a / n.a

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    >90%

    장착 두께:

    n.a

    내부/외부 스레드:

    n.a / n.a

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia9mm

    장착 두께:

    7.62mm

    내부/외부 스레드:

    SM05 / SM05

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia21mm

    장착 두께:

    7.62mm

    내부/외부 스레드:

    SM1 / SM1

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia21mm

    장착 두께:

    내부/외부 스레드:

    C-Mount / C-Mount

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia20.5mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M25.5x0.5mm / M25.5x0.5mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia22mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M27x0.5mm / M27x0.5mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia25.5mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M30.5x0.5mm / M30.5x0.5mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia29mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M34x0.5mm / M34x0.5mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia30.5mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M35.5x0.5mm / M35.5x0.5mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia32mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M37x0.5mm / M37x0.5mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia47mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M52x0.75mm / M52x0.75mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    dia50mm

    장착 두께:

    6.5mm

    내부/외부 스레드:

    M55x0.75mm / M55x0.75mm

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    >90%

    장착 두께:

    n.a

    내부/외부 스레드:

    n.a / n.a

  • 직경 25mm(장착됨)

    클리어 어퍼처:

    >90%

    장착 두께:

    n.a

    내부/외부 스레드:

    n.a / n.a
