LP500 롱패스 필터(T>85%@510-1200nm, OD5@200-490nm)

LP500 롱패스 필터(T>85%@510-1200nm, OD5@200-490nm)

정가 $50.00 USD
정가 할인가 $50.00 USD
할인 품절
배송료는 결제 시 계산됩니다.
컷온 파장
전송 // 차단
차원

In Stock.

Ships within 5 working days of order.

  • 파장: LP500 장파장 통과 필터는 510~1200nm의 녹색광에서 근적외선(NIR) 응용 분야에 최적화되어 있습니다.
  • 분광 특성: 500nm에서 날카로운 차단 특성을 보이며 510nm 이상에서 85% 이상의 투과율을 제공하여 안정적인 신호 선명도를 보장합니다.
  • 광학 밀도: 200~490nm 범위에서 OD5 차단 기능으로 청색 및 자외선 파장을 효과적으로 차단합니다.
  • 필터 크기: 다양한 크기를 제공합니다. 맞춤형 크기 및 장착 옵션에 대해서는 당사에 문의하십시오.

전송 및 OD 데이터

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

배송 및 배달

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

반품 및 환불

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

지불 통지

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

사용자 정의 크기

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

SKU(재고 관리 코드):

전체 세부 정보 보기

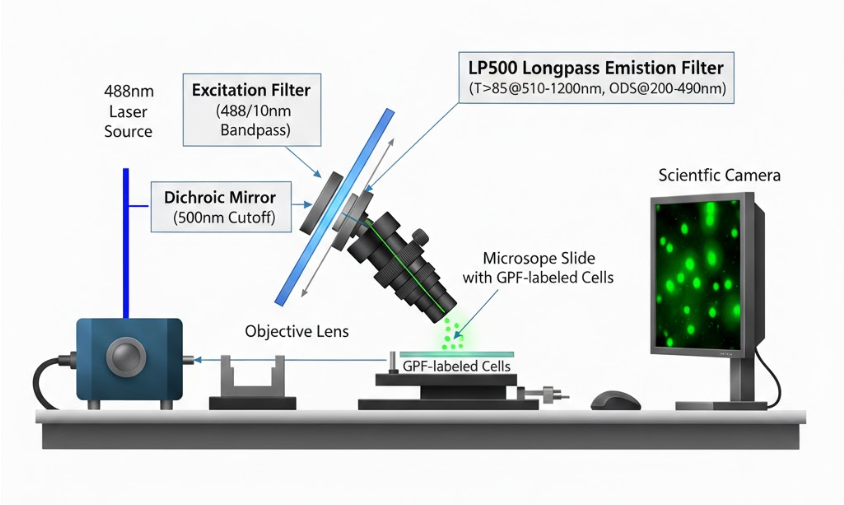

  • LP500 Longpass Filter - Fluorescence Microscopy

    LP500 Longpass Filter - Fluorescence Microscopy

    Fluorescence Microscopy

    This is the most common use. The filter acts as an "emission filter" to block the high-intensity blue or UV excitation light (e.g., 450nm or 488nm) while allowing the camera to capture the faint green or yellow fluorescence (emitted at >500nm) from markers like GFP (Green Fluorescent Protein) or FITC.

    Recommended Light Sources

    • Blue LEDs (450nm - 485nm): Narrow spectral output that minimizes thermal noise and provides a stable, long-lasting excitation source specifically tuned for green fluorophores.
    • Argon-Ion Lasers (488nm): Extremely high photon density and beam coherence, allowing for deep tissue penetration and high-resolution confocal imaging.
    • Mercury/Xenon Arc Lamps: Broad-spectrum high intensity across UV and blue wavelengths, making them versatile for multiple fluorophores when paired with the correct excitation filter.
    • Laser Diodes (473nm/488nm): Compact and cost-effective alternatives to gas lasers that offer high-speed modulation capabilities for specialized imaging techniques.

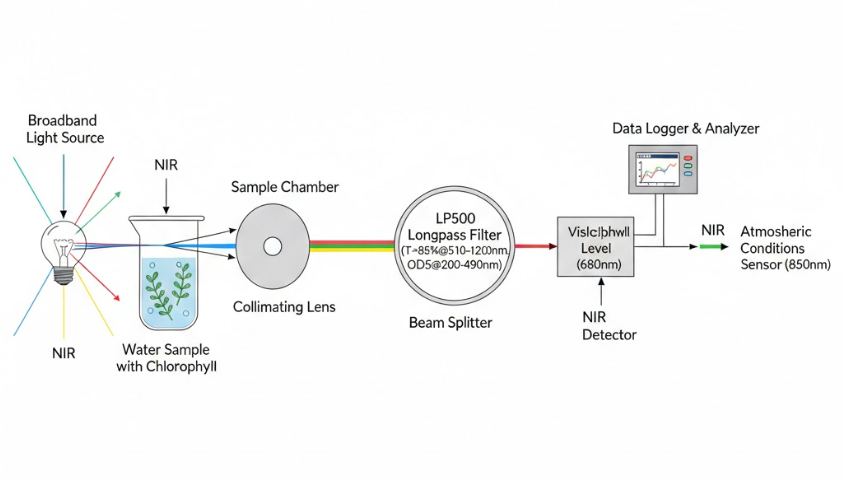

  • LP500 Longpass Filter - Environmental Monitoring

    LP500 Longpass Filter - Environmental Monitoring

    Environmental Monitoring

    Used in sensors to detect chlorophyll levels or atmospheric conditions by isolating specific bands of visible and near-infrared light.

    Recommended Light Sources

    • Tungsten-Halogen Lamps: Provides a smooth, continuous output from the visible range through the NIR (up to 2500nm), which is essential for measuring broad atmospheric absorption bands.
    • Broadband White LEDs: Offers a cost-effective, low-power solution for portable sensors, providing consistent illumination across the 500–700nm range where chlorophyll activity is monitored.
    • Infrared (IR) LEDs: Allows for targeted sensing of atmospheric gases or moisture levels by providing high-intensity light in the NIR region (700nm+) where the LP500 has maximum transmission.
    • Solar Radiation (Passive Sensing): Uses natural sunlight as the source for remote sensing applications, where the LP500 filter helps isolate the "Red Edge" (approx. 700nm) used to calculate vegetation indices like NDVI.
    • Xenon Flash Lamps: Delivers high-energy pulses across a wide spectrum, ideal for field instruments that need to overcome high ambient background light during spot measurements.
