MVBP1050-50 Bandpass Filter(CWL=1050nm,FWHM=50nm)

CWL=1050nm // FWHM=50nm / OD2@300-1100nm // T＞90% / dia12.5mm(unmounted)

$35.00

MVBP1050-50 Bandpass Filter(CWL=1050nm,FWHM=50nm)

SO3010012

Center Wavelength (CWL) // FWHM

CWL=1050nm // FWHM=50nm

Optical Density // Peak Transmission (Tpk)

OD2@300-1100nm // T＞90%

Dimension

SO3010012-d12.5u

재고 있음

$35.00

이 상품은 직접 주문 가능한가요?

주문제작 사이즈 또는 설치 옵션을 요청할 수 있나요?

변환 곡선 또는 스펙트럼 데이터를 요청할 수 있나요?

배송에는 보통 얼마나 걸리나요?

결제 조건

수입 관세 및 세금

This MVBP1050-50 Bandpass Filter is designed to transmit a narrow band around 1050 nm while reducing out-of-band light. It is suitable for NIR sensing, machine vision, and laser diode systems systems using NIR LED, VCSEL, or laser diode illumination. It helps isolate the target signal, reduce background light, and improve contrast.

Key specifications:

Wavelength / main spec: 1050 nm center wavelength (CWL)
Bandwidth / transition spec: 50 nm FWHM
Transmission / blocking: T >90%; OD2 blocking from 300-1100 nm

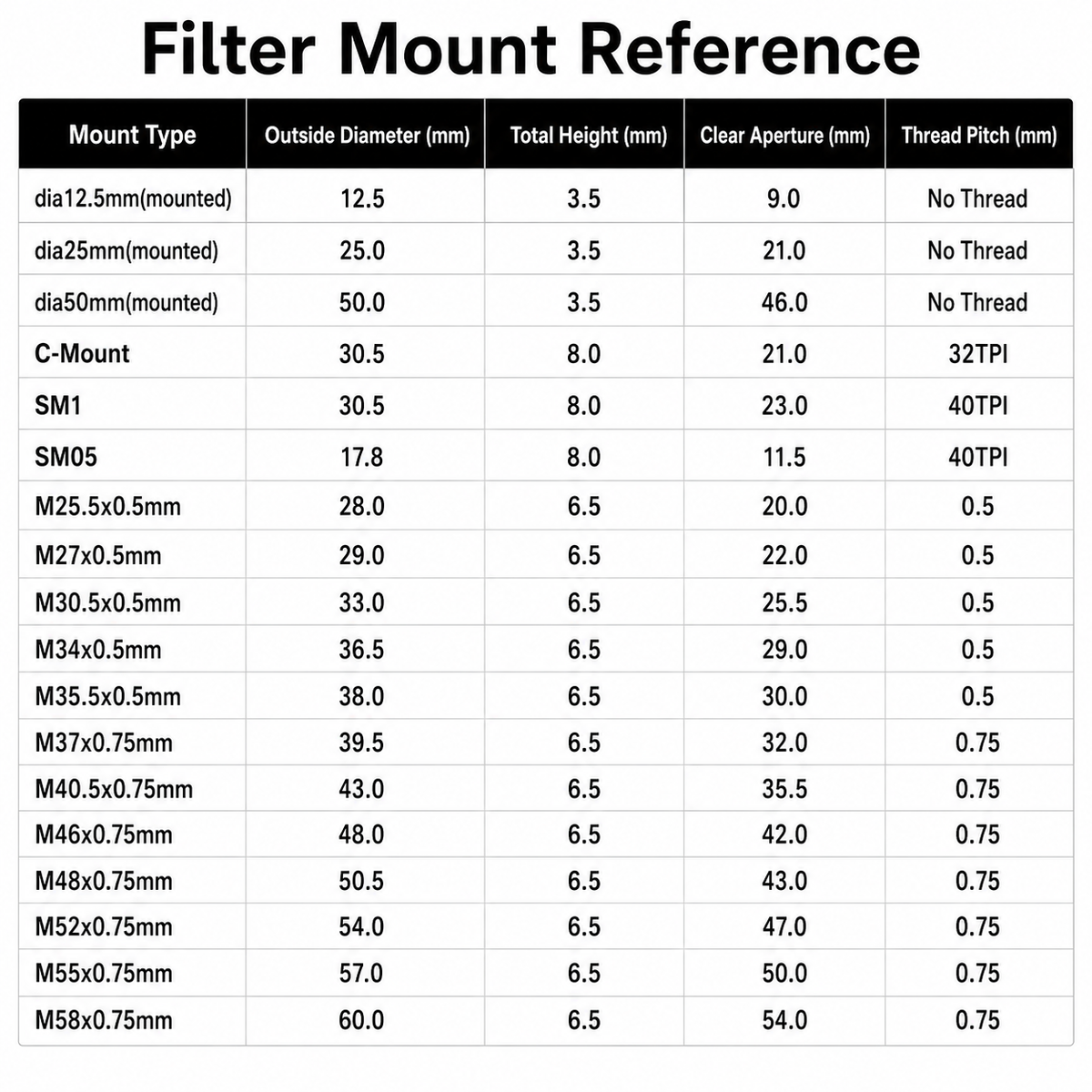

Format / custom option: Available in dia 12.5mm to dia 25mm (mounted/unmounted); Custom sizes and mounting options available on request
