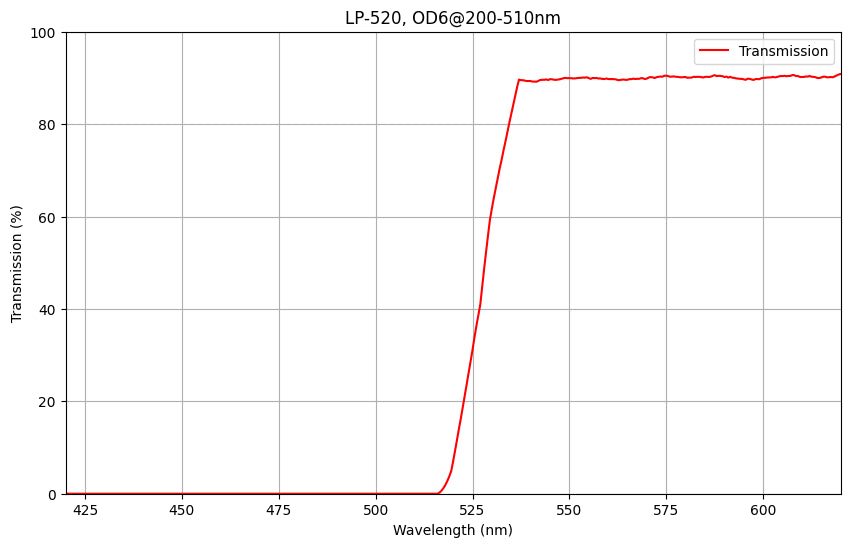

• Graph showing the transmission percentage of a LP520 longpass filter against wavelength, with a cut-on wavelength of 525nm and a blocking range indicating OD6 at 200-510nm.
1 1

LP520 롱패스 필터(T>90%@525-1200nm, OD6@200-510nm)

LP520 롱패스 필터(T>90%@525-1200nm, OD6@200-510nm)

$50.00 USD
$50.00 USD
할인 품절
배송료는 결제 시 계산됩니다.
컷온 파장
전송 // 차단
차원

In Stock.

Ships within 5 working days of order.
  • 파장: LP520 롱패스 필터는 525~1200nm의 녹색광에서 근적외선(NIR) 응용 분야에 최적화되어 있습니다.
  • 분광 특성: 520nm에서 날카로운 차단 특성을 보이며 525nm 이상에서 90% 이상의 투과율을 제공하여 탁월한 신호 선명도를 보장합니다.
  • 광학 밀도: 200~510nm 범위에서 OD6 차단 성능을 제공하여 청색 및 자외선 파장을 탁월하게 차단합니다.
  • 필터 크기: 다양한 크기를 제공합니다. 맞춤형 크기 및 장착 옵션에 대해서는 당사에 문의하십시오.

전송 및 OD 데이터

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

배송 및 배달

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

반품 및 환불

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

지불 통지

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

사용자 정의 크기

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

lp360-d12.5

전체 세부 정보 보기

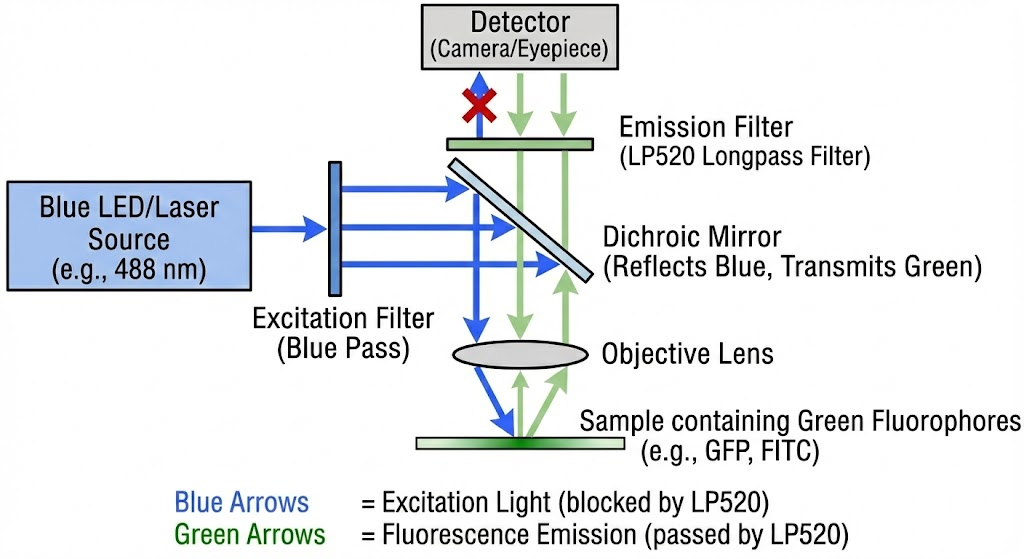

  • LP520 Longpass Filter - Fluorescence Microscopy & Imaging

    LP520 Longpass Filter - Fluorescence Microscopy & Imaging

    Fluorescence Microscopy & Imaging

    The most common and "perfect fit" application for this filter is as an Emission Filter for green fluorophores.

    • Target Fluorophores: Green Fluorescent Protein (GFP), FITC (Fluorescein isothiocyanate), Alexa Fluor 488, and Cy2.

    Recommended Light Sources

    • High-Power Blue LEDs (470 nm or 490 nm):

    Why recommended: These are the modern standard for widefield microscopy. They are stable, instant-on/off, and emit a narrow spectrum of blue light that sits perfectly within the blocking range of your LP520 filter (OD6 blocking).

    • 488 nm Solid-State or Argon Lasers:

    Why recommended: Used primarily in confocal microscopy or flow cytometry. They provide coherent, intense light exactly at the excitation peak of GFP.

    • Mercury or Metal Halide Arc Lamps (with Excitation Filter):

    Why recommended: These are traditional broadband "white light" sources. To use them, you must place a Blue Bandpass Excitation Filter (e.g., 470/40 nm) in front of the lamp to discard all wavelengths except the blue light needed for excitation.

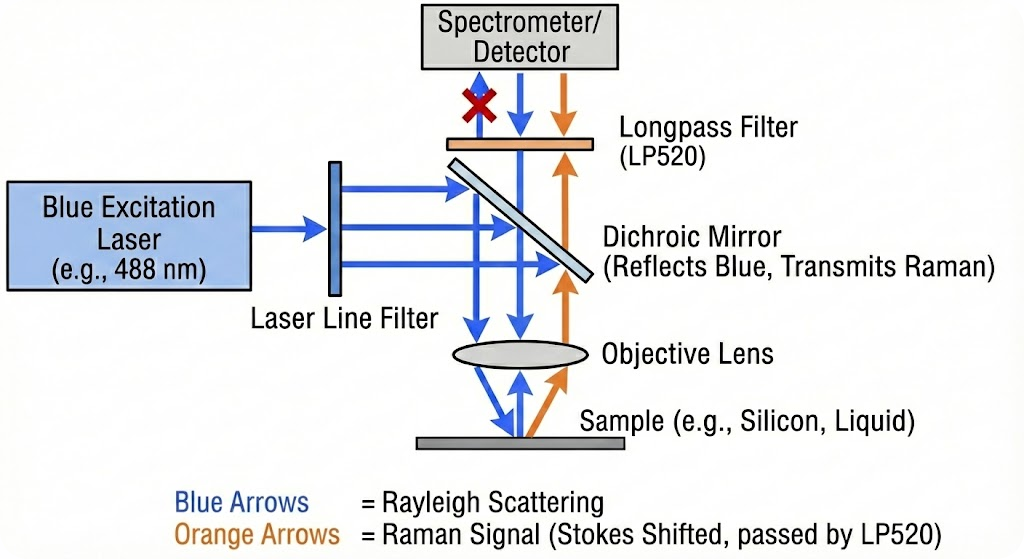

  • LP520 Longpass Filter - Raman Spectroscopy

    LP520 Longpass Filter - Raman Spectroscopy

    Raman Spectroscopy

    Used to block the Rayleigh scattering from blue excitation lasers (e.g., 488 nm) while allowing the Stokes-shifted Raman signal (which appears at longer wavelengths) to pass.

    Recommended Light Sources

    • 488 nm Blue Laser

    For the Raman Spectroscopy setup you described (blocking Rayleigh scattering while passing Stokes-shifted signals), the recommended light source is a 488 nm Blue Laser.

    • 488 nm CW Laser

    Unlike fluorescence microscopy which can use LEDs, Raman spectroscopy requires a Laser (Light Amplification by Stimulated Emission of Radiation).
