LP980 롱패스 필터(T>85%@990-1100nm, OD2@350-970nm)
LP980 롱패스 필터(T>85%@990-1100nm, OD2@350-970nm)
In Stock.
Ships within 5 working days of order.
픽업 사용 가능 여부를 로드할 수 없습니다.
- 파장: LP980 장파장 통과 필터는 990~1100nm의 근적외선(NIR) 응용 분야에 최적화되어 있습니다.
- 분광 특성: 980nm에서 날카로운 차단 특성을 보이며 990nm 이상에서 85% 이상의 투과율을 제공하여 안정적인 신호 선명도를 보장합니다.
- 광학 밀도: 350~970nm 범위에서 OD2 차단 기능으로 더 짧은 파장의 빛을 효과적으로 차단합니다.
- 필터 크기: 다양한 크기를 제공합니다. 맞춤형 크기 및 장착 옵션에 대해서는 당사에 문의하십시오.

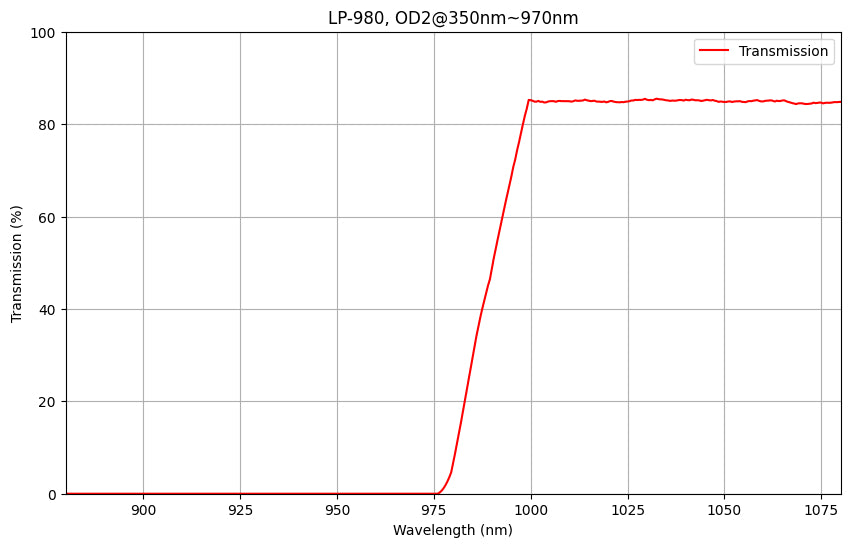

전송 및 OD 데이터
전송 및 OD 데이터
You can request the raw transmission data from us.
Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
배송 및 배달
배송 및 배달
- Stocked products ship within 5 business days after order confirmation.
- Custom-made products typically ship within 4–8 weeks.
- Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
- Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
- Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
- General international parcel shipping cost: USD 35 (for reference).
반품 및 환불
반품 및 환불
1. Eligible Products
Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.
Custom-made or non-stock items are not eligible for no-reason returns.
2. No-Reason Return (Buyer’s Remorse)
If you wish to return an item for reasons other than product defect or seller error:
- Please email shop@syronoptics.com to request a return authorization and return address.
- Buyer is responsible for all return shipping costs.
- Items must be unused, in original condition, and with original packaging.
- Refund will be issued after inspection of the returned item.
3. Seller’s Fault (Defective / Wrong / Damaged Item)
If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):
Please provide clear evidence (photos or videos) showing the issue.
We will evaluate the case and either:
- Provide a replacement, or
Issue a refund (with or without requiring the item to be returned). - Return shipping cost will be covered by the seller in confirmed seller-fault cases.
4. Important Notes
- Returned items are subject to inspection before refund approval.
- Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
- Unauthorized returns will not be accepted.
지불 통지
지불 통지
Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.
If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.
If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.
All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.
사용자 정의 크기
사용자 정의 크기
Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.
Pricing is not significantly lower for small-size orders in low quantities due to operational costs.
SKU(재고 관리 코드):lp360-d12.5
전체 세부 정보 보기
| Specifications | |
|---|---|
Cut-On Wavelength |
980nm
|
Optical Density |
오디2
|
Part Number |
SO3040076
|
-
LP980 Longpass Filter - Laser Pump Rejection
Laser Pump Rejection
- Application: Many solid-state lasers and fiber amplifiers (like EDFAs) use a 980 nm laser diode as a "pump" source to excite ions (like Erbium or Ytterbium). This filter is used to block that bright 980 nm excitation light while allowing the longer wavelength fluorescence or lasing signal (e.g., at 1030 nm, 1064 nm, or 1550 nm) to reach the detector.
- Why: Without the filter, the intense 980 nm pump light would saturate or damage the sensor intended to see the weaker emission signal.
Recommended Light Sources
- 980 nm Pump Laser Diode
t acts as the energy source for the system. It emits intense light specifically at 980 nm to "excite" the rare-earth ions (Erbium or Ytterbium) inside the fiber or crystal. This excitation creates the energy required to amplify or generate the longer signal wavelengths (like 1550 nm or 1064 nm).
-

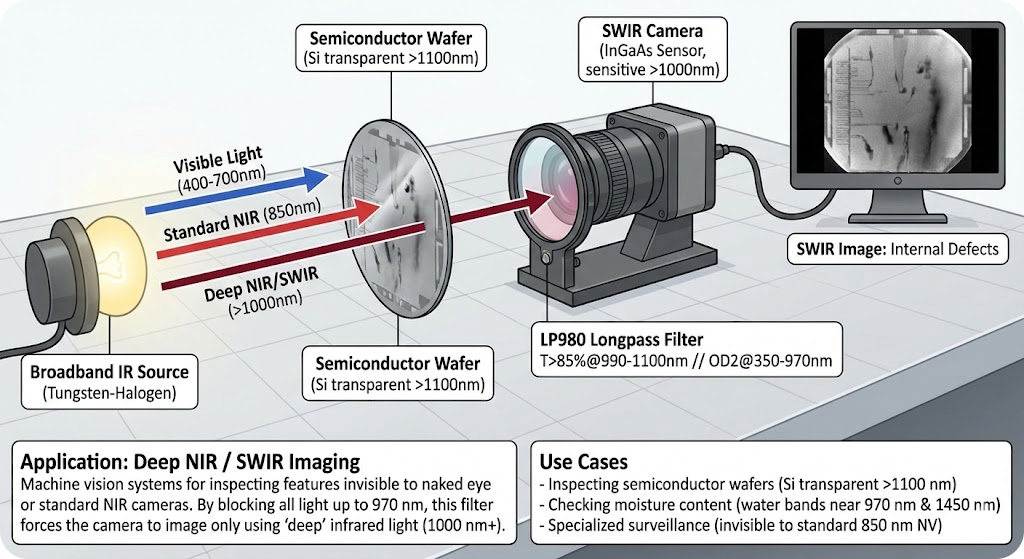

LP980 Longpass Filter - Deep NIR / SWIR Imaging
Deep NIR / SWIR Imaging
Application: Machine vision systems that need to inspect features invisible to the naked eye or standard NIR cameras. By blocking all light up to 970 nm, this filter forces the camera to image only using "deep" infrared light (1000 nm+).
Use Cases: Inspecting semiconductor wafers (silicon becomes transparent >1100 nm, so this is right on the edge), checking moisture content (water absorbs strongly at 1450 nm, but has bands near 970 nm), or specialized surveillance that must remain invisible even to standard 850 nm night-vision cameras.
Recommended Light Sources
- Broadband Tungsten-Halogen Lamps (The Versatile Choice)
Description: These lamps operate by heating a filament, producing a smooth, continuous spectrum of light that spans from visible light all the way out to ~2500 nm.
Why it fits: It naturally provides the high-intensity photons needed for the specific use cases you mentioned:
- >1100 nm: Required to see through Silicon wafers.
- 1450 nm: Required to detect water absorption bands.
- High-Power SWIR LEDs (The Targeted Choice)
Description: Unlike standard LEDs, these are engineered (often using InGaAs technology) to emit centered at specific wavelengths like 1050 nm, 1200 nm, 1300 nm, or 1550 nm.
Why it fits:
- 1050 nm / 1200 nm LEDs: often used for "covert" surveillance or semi-transparent material inspection where you need to be just outside the range of standard silicon sensors.
- 1550 nm LEDs: Ideal for moisture detection or telecommunications component inspection.
