• Graph showing transmission versus wavelength with a peak at around 1550 nm.
1 1

LP1580 롱패스 필터(T>95%@1590-2500nm, OD3@200-1540nm)

LP1580 롱패스 필터(T>95%@1590-2500nm, OD3@200-1540nm)

$60.00 USD
$60.00 USD
할인 품절
배송료는 결제 시 계산됩니다.
컷온 파장
전송 // 차단
차원

In Stock.

Ships within 5 working days of order.
  • 파장: LP1580 롱패스 필터는 1590~2500nm의 넓은 근적외선(NIR) 영역에 최적화되어 있습니다.
  • 분광 특성: 1580nm에서 날카로운 차단 특성을 보이며 1590nm 이상에서 95% 이상의 투과율을 제공하여 뛰어난 신호 선명도를 보장합니다.
  • 광학 밀도: 200~1540nm 범위에서 OD3 차단 기능으로 더 짧은 파장의 빛을 효과적으로 차단합니다.
  • 필터 크기: 다양한 크기를 제공합니다. 맞춤형 크기 및 장착 옵션에 대해서는 당사에 문의하십시오.

전송 및 OD 데이터

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

배송 및 배달

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

반품 및 환불

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

지불 통지

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

사용자 정의 크기

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

전체 세부 정보 보기

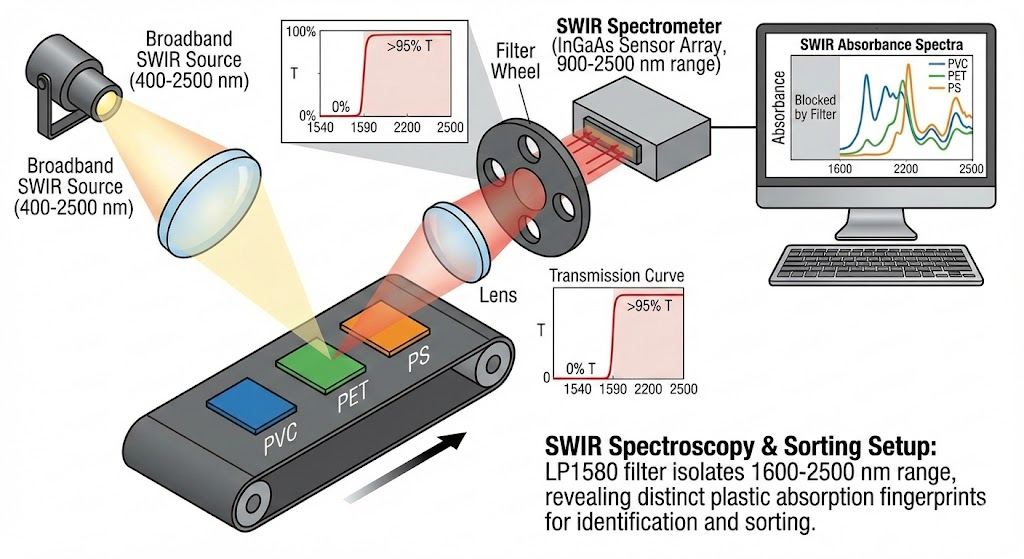

  • LP1580 Longpass Filter - SWIR Spectroscopy & Sorting (Plastic & Chemical Analysis)

    LP1580 Longpass Filter - SWIR Spectroscopy & Sorting (Plastic & Chemical Analysis)

    SWIR Spectroscopy & Sorting (Plastic & Chemical Analysis)

    • Many organic compounds, including lipids and specific plastics (like PVC, PET, and PS), have distinct absorption fingerprints in the 1600–2500 nm range. This filter allows a sensor to focus entirely on these longer wavelengths to distinguish materials in recycling or industrial sorting.

    Recommended Light Sources

    • Tungsten-Halogen Lamps: They emit a continuous, stable broadband spectrum that covers the entire 1600–2500 nm range, which is essential for capturing the complete absorption "fingerprints" needed to distinguish between complex organic materials like PVC, PET, and PS.
    • Supercontinuum Lasers: They provide high-intensity, broadband light with the focus ability of a laser, allowing for rapid signal detection on high-speed industrial conveyor belts where standard lamps might not provide enough photon flux for fast integration times.

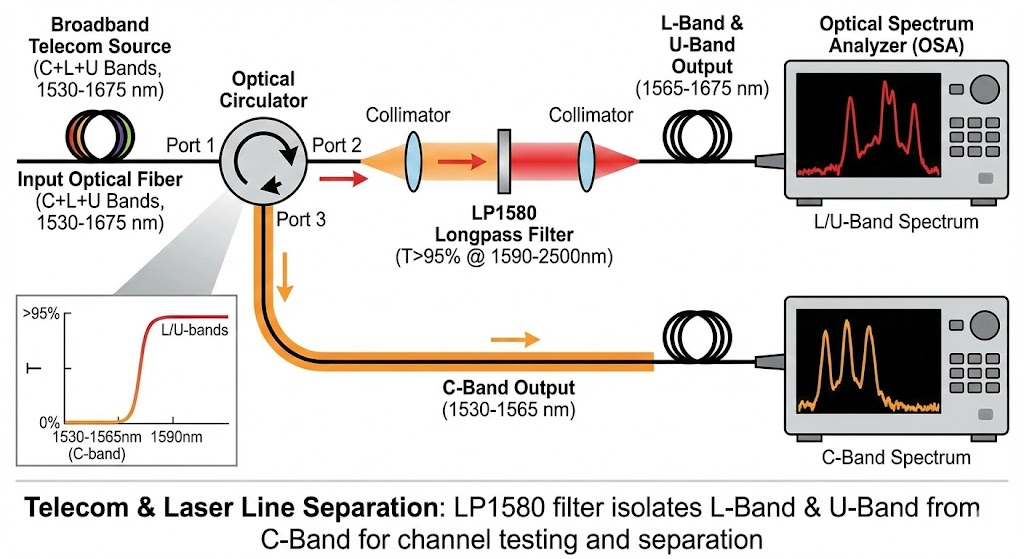

  • LP1580 Longpass Filter - Telecom & Laser Line Separation

    LP1580 Longpass Filter - Telecom & Laser Line Separation

    Telecom & Laser Line Separation

    • L-Band and U-Band Isolation: Standard telecom optical fibers use the C-band (1530–1565 nm). This filter effectively blocks the C-band while passing the L-band (1565–1625 nm) and U-band (1625–1675 nm), making it useful for testing or separating these specific communication channels.

    Recommended Light Sources

    • Tunable Lasers (L-Band/U-Band): These allow for precise wavelength selection across the 1565–1675 nm range, which is critical for characterizing the performance of individual communication channels and verifying that the filter is correctly isolating them from the C-band.
    • Amplified Spontaneous Emission (ASE) Sources: They provide a stable, high-power broadband spectrum specifically covering the L and U bands, making them ideal for measuring the total spectral insertion loss and crosstalk of passive components in a single sweep.
