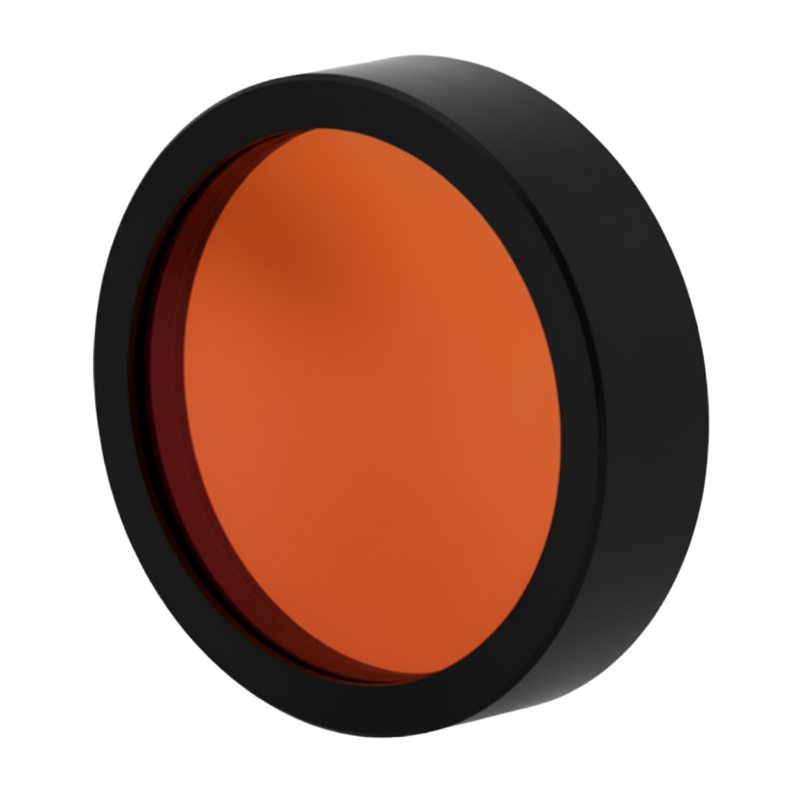

BP625-30 대역통과 필터(CWL=625nm, FWHM=30nm)
BP625-30 대역통과 필터(CWL=625nm, FWHM=30nm)
부품 번호: SO3014395
재고 66개
In Stock.
Ships within 5 working days of order. Customs handling including. (DDP)
Net 30 payment terms for organizational purchase orders.
SKU(재고 관리 코드):SO3014395-d12.5u
픽업 사용 가능 여부를 로드할 수 없습니다.
Email shop@syronoptics.com For Customization Options
이 BP625-30 대역 통과 필터는 625nm 주변의 좁은 대역을 전송하면서 대역 외 빛을 줄이도록 설계되었습니다. 이 필터는 적색 LED 또는 적색 레이저 다이오드 조명을 사용하는 머신 비전, 광학 검사 및 감지 시스템에 적합합니다. 이 필터는 대상 신호를 분리하고 배경광을 줄이며 대비를 개선하는 데 도움이 됩니다.
주요 사양:
- 파장 / 주요 사양: 625nm 중심 파장(CWL)
- 대역폭 / 전환 사양: 30nm FWHM
- 투과율 / 차단: T >90%; 200-900nm에서 OD6 차단
- 형식 / 맞춤형 옵션: 직경 12.5mm ~ 직경 34mm(장착/미장착), M25.5x0.5mm ~ M55x0.75mm(장착)로 제공 가능; 요청 시 맞춤형 크기 및 장착 옵션 제공
전송 및 OD 데이터
전송 및 OD 데이터
You can request the raw transmission data from us.
Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
배송 및 배달
배송 및 배달
- Stocked products ship within 5 business days after order confirmation.
- Custom-made products typically ship within 4–8 weeks.
- Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
- Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
- Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
- General international parcel shipping cost: USD 35 (for reference).
반품 및 환불
반품 및 환불
1. Eligible Products
Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.
Custom-made or non-stock items are not eligible for no-reason returns.
2. No-Reason Return (Buyer’s Remorse)
If you wish to return an item for reasons other than product defect or seller error:
- Please email shop@syronoptics.com to request a return authorization and return address.
- Buyer is responsible for all return shipping costs.
- Items must be unused, in original condition, and with original packaging.
- Refund will be issued after inspection of the returned item.
3. Seller’s Fault (Defective / Wrong / Damaged Item)
If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):
Please provide clear evidence (photos or videos) showing the issue.
We will evaluate the case and either:
- Provide a replacement, or
Issue a refund (with or without requiring the item to be returned). - Return shipping cost will be covered by the seller in confirmed seller-fault cases.
4. Important Notes
- Returned items are subject to inspection before refund approval.
- Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
- Unauthorized returns will not be accepted.
사용자 정의 크기
사용자 정의 크기
Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.
Pricing is not significantly lower for small-size orders in low quantities due to operational costs.
지불
지불
Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.
If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.
If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.
All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

| Optical Specification | |
|---|---|
Center Wavelength (CWL) |
625nm
|
CWL Tolerance |
±2nm ~ ±5nm
|
FWHM |
30nm
|
FWHM Tolerance |
±5nm
|
Blocking Region Wavelength range where light is strongly suppressed
|
OD6@200-900nm
|
Peak Transmission (%) |
90
|
Transmission Curve |
|
Filtering Mechanism How the filter selects wavelengths (typically by reflection)
|
Reflective
|
| Operating Conditions | |
Angle of Incidence Larger angles can shift the center wavelength
|
0 ± 3°
|
Operating Temperature |
-40 to 90 °C
|
Transmitted Wavefront (RMS) Affects image quality and beam distortion
|
λ/2
|
| Material & Coating | |
Substrate |
Borosilicate Glass
|
Coating Method |
E-Beam
|
Filter Construction Single-piece or laminated structure depending on application and coating design
|
Single Piece
|
Surface Quality Indicates surface defects that may cause scattering
|
40-20 Before Coating
|
| Mechanical | |
Size Tolerance |
+0.5mm / -0.0mm
|
| Part Number | |
PN |
SO3014395
|
| Document | |
Drawing PDF |
|
-
BP625-30 Bandpass Filter - Machine Vision & Industrial Inspection
Machine Vision & Industrial Inspection
This filter is designed to increase contrast. It makes red objects appear bright white to the camera while making other colors (green, blue) appear jet black.
- Barcode/OCR Reading: Reading red ink codes on white paper or laser-etched codes on metal.
- Semiconductor Wafer Inspection: Inspecting photoresist layers that are sensitive to shorter wavelengths (blue/UV).
- Defect Detection: Detecting rust (red/orange) on steel parts.
Recommended Light Sources
- Red LED: This is the standard "Red" LED wavelength. The filter matches the LED output curve almost perfectly.
- Red Diode Laser: This is on the upper edge of the filter's bandwidth (640 nm cutoff). If the light enters at an angle, the filter will "blue shift" and might block this laser. Use 625 nm lasers instead.
- Orange-Red LED: Fits well within the bandwidth; often used for specific color separation tasks.
-
BP625-30 Bandpass Filter - 3D Profilometry & Laser Triangulation
3D Profilometry & Laser Triangulation
- Used in front of a camera to detect a red laser line projected onto an object while blocking out overhead factory lighting or sunlight.
Recommended Light Sources
- 625 nm Red Laser Line Generator
자주 묻는 질문
마운팅의 차이점은 무엇인가요?
광학 필터의 두께는 얼마입니까?
Can I request a custom wavelength or size?
What is the difference between mounted and unmounted filters?
Unmounted filters are bare optics suitable if you already have a holder. Mounted filters come in an anodized aluminum ring (with or without threading) for easier system integration.
-
직경 25mm(장착됨)
클리어 어퍼처:
>90%
장착 두께:
n.a
내부/외부 스레드:
n.a / n.a
-
직경 25mm(장착됨)
클리어 어퍼처:
dia9mm
장착 두께:
3.5mm
내부/외부 스레드:
n.a / n.a
-
직경 25mm(장착됨)
클리어 어퍼처:
dia21mm
장착 두께:
3.5mm
내부/외부 스레드:
n.a / n.a
-
직경 25mm(장착됨)
클리어 어퍼처:
>90%
장착 두께:
n.a
내부/외부 스레드:
n.a / n.a
-
직경 25mm(장착됨)
클리어 어퍼처:
dia9mm
장착 두께:
7.62mm
내부/외부 스레드:
SM05 / SM05
-
직경 25mm(장착됨)
클리어 어퍼처:
dia21mm
장착 두께:
7.62mm
내부/외부 스레드:
SM1 / SM1
-
직경 25mm(장착됨)
클리어 어퍼처:
dia21mm
장착 두께:
내부/외부 스레드:
C-Mount / C-Mount
-
직경 25mm(장착됨)
클리어 어퍼처:
dia20.5mm
장착 두께:
6.5mm
내부/외부 스레드:
M25.5x0.5mm / M25.5x0.5mm
-
직경 25mm(장착됨)
클리어 어퍼처:
dia22mm
장착 두께:
6.5mm
내부/외부 스레드:
M27x0.5mm / M27x0.5mm
-
직경 25mm(장착됨)
클리어 어퍼처:
dia25.5mm
장착 두께:
6.5mm
내부/외부 스레드:
M30.5x0.5mm / M30.5x0.5mm
-
직경 25mm(장착됨)
클리어 어퍼처:
dia29mm
장착 두께:
6.5mm
내부/외부 스레드:
M34x0.5mm / M34x0.5mm
-
직경 25mm(장착됨)
클리어 어퍼처:
dia30.5mm
장착 두께:
6.5mm
내부/외부 스레드:
M35.5x0.5mm / M35.5x0.5mm
-
직경 25mm(장착됨)
클리어 어퍼처:
dia32mm
장착 두께:
6.5mm
내부/외부 스레드:
M37x0.5mm / M37x0.5mm
-
직경 25mm(장착됨)
클리어 어퍼처:
dia47mm
장착 두께:
6.5mm
내부/외부 스레드:
M52x0.75mm / M52x0.75mm
-
직경 25mm(장착됨)
클리어 어퍼처:
dia50mm
장착 두께:
6.5mm
내부/외부 스레드:
M55x0.75mm / M55x0.75mm
-
직경 25mm(장착됨)
클리어 어퍼처:
>90%
장착 두께:
n.a
내부/외부 스레드:
n.a / n.a
-
직경 25mm(장착됨)
클리어 어퍼처:
>90%
장착 두께:
n.a
내부/외부 스레드:
n.a / n.a
이 필터가 시스템에 맞는지 확실하지 않으신가요?
파장, 광원, 설정에 따라 적절한 필터를 선택하는 데 도움을 드릴 수 있습니다.
