LP590 롱패스 필터(T>95%@590-1200nm, OD6@200-580nm)

LP590 롱패스 필터(T>95%@590-1200nm, OD6@200-580nm)

컷온=590nm / T>95%@590-1200nm // OD6@200-580nm / 직경 12.5mm(미장착)
$50.00
할인가  $50.00 정가
제품 정보로 건너뛰기
LP590 롱패스 필터(T>95%@590-1200nm, OD6@200-580nm)

LP590 롱패스 필터(T>95%@590-1200nm, OD6@200-580nm)

SO3040047

컷온 파장
컷온 파장
컷온=590nm
전송 // 차단
전송 // 차단
T>95%@590-1200nm // OD6@200-580nm
SO3040047n-d12.5u
재고 있음
$50.00
할인가  $50.00 정가
연말연시 배송 서비스

맞춤형 크기 요청

결제 방법
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa
Stock Availability
이 제품을 직접 주문할 수 있습니까?
Custom Size & Mounting
주문제작 사이즈 또는 설치 옵션을 요청할 수 있나요?
Request Raw Data
변환 곡선 또는 스펙트럼 데이터를 요청할 수 있나요?
Shipment & Delivery

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost
  • Shipping is generally USD 5–40 per parcel
  • Orders above USD 300 are eligible for free shipping
  • Final cost depends on destination, package size, order value, and shipping method
  • Shipping cost is shown during checkout or confirmed before payment
Shipping coverage
  • We generally ship to Europe, North America, Asia, the Middle East, and Oceania
  • Some countries may be unavailable depending on logistics or customs conditions
Delivery time
  • Most stocked products need 1–5 working days for preparation before shipment
  • After shipment, delivery time depends on destination and shipping method
  • Tracking information will be provided when available
Note
  • If your destination is not available during checkout, please contact us before ordering.

Payment & Quotation

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?
  • Yes, formal quotations are available before payment
  • Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
  • Please send the product link, quantity, destination country, and billing details if available
What online payment methods are available?
  • Credit card
  • Apple Pay
  • Google Pay
Do you support bank transfer?
  • Yes, bank transfer is available
  • We support multi-currency payment through local banking where available
  • Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
  • For payment in Chinese RMB inside Mainland China, please contact our local partner
  • VAT fapiao may be supported for eligible Mainland China transactions
Do you support company purchase orders?
  • Company purchase orders may be supported after confirmation
  • Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching
Are NET payment terms available? (Pay after received)
  • NET 7 or NET 30 terms may be available for eligible organizations
  • Approval depends on company type, order value, payment history, and internal review
  • Please contact us before ordering if you need NET payment terms
Import, Duties & Customs
수입 관세 및 세금

이 LP590 장파장 통과 필터는 컷온 영역보다 긴 파장을 투과하면서 짧은 파장의 가시광선은 감소시키도록 설계되었습니다. 이 필터는 형광 이미징, 광학 검사 및 긴 파장 신호를 가시광선 여기 또는 짧은 파장 배경으로부터 분리해야 하는 가시광선 대역 광학 측정 시스템에 적합합니다. 짧은 파장 여기로부터 긴 파장 방출을 분리하고 가시광선 배경 간섭을 줄이는 데 도움이 됩니다.

주요 사양:

  • 파장/주요 사양: 590nm 컷온 파장
  • 대역폭/전이 사양: 전이 특성은 사양 표 참조
  • 투과율/차단율: 590-1200nm에서 T>95%; 200-580nm에서 OD6
  • 형식/맞춤 옵션: 25.4mm 직경 및 60x60mm로 제공, 장착 옵션

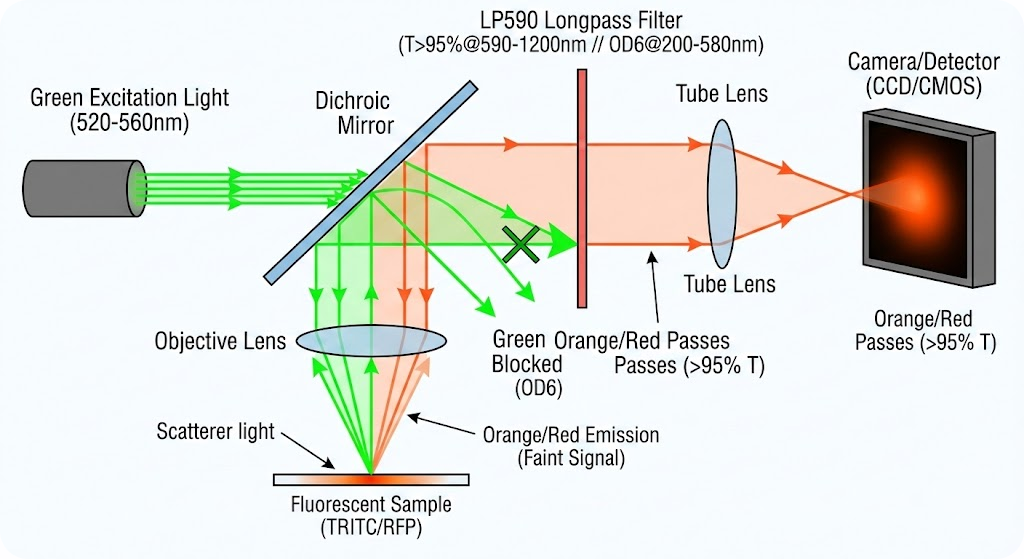

LP590 Longpass Filter - Fluorescence Microscopy (Emission Side)

LP590 Longpass Filter - Fluorescence Microscopy (Emission Side)

Fluorescence Microscopy (Emission Side)

This is the primary application. The filter is used to block the bright "excitation" light (green) while letting the faint "emission" light (orange/red) pass through to the camera/detector.

Recommended Light Sources

For this specific setup, the recommended light source is a high-intensity Green LED or Green Laser (typically centered between 520nm and 560nm).

  • 532nm DPSS Laser
  • 530nm High-Power Green LED
  • 546nm Mercury Arc Lamp Line (filtered)

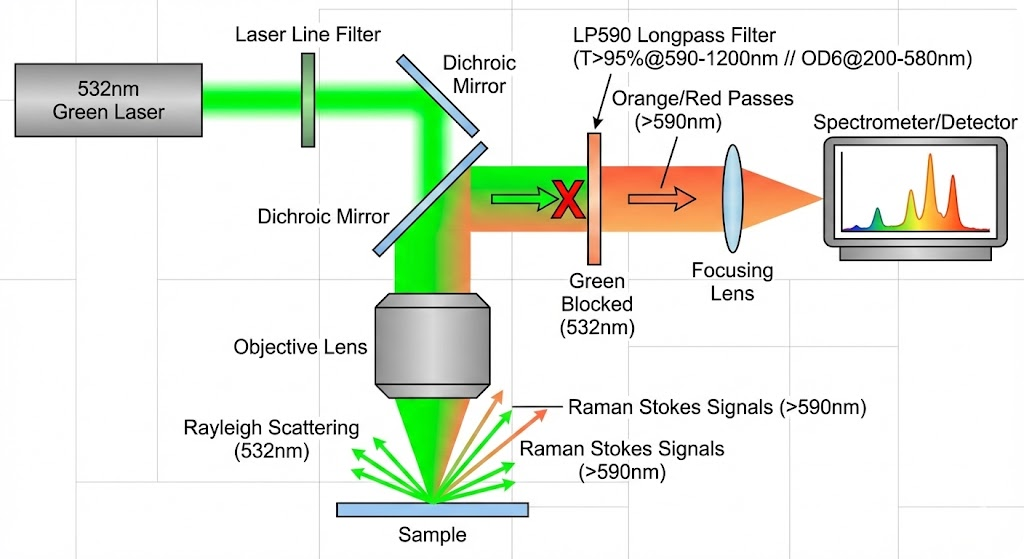

LP590 Longpass Filter - Raman Spectroscopy

LP590 Longpass Filter - Raman Spectroscopy

Raman Spectroscopy

It blocks the Rayleigh scattering line from a 532nm (Green) laser, allowing you to analyze the Raman Stokes shift signals that occur at longer wavelengths (>590nm).

Recommended Light Sources

For this specific Raman setup, the recommended light source is a 532nm Diode-Pumped Solid State (DPSS) Laser.

It is a "sweet spot" for Raman. It provides a strong signal (Raman scattering intensity scales with 1/lambda^4, so green generates much stronger signals than red/IR) while still being visible for easy alignment.

유사 대역 통과 필터

제품 FAQ

차단 파장 / 차단 한계 파장

컷온/컷오프 파장은 에지패스 필터가 빛을 투과하기 시작하거나 멈추는 전환 지점입니다. 실제 시스템에서는 어떤 파장 범위가 통과되고 어떤 범위가 감소되거나 차단되는지를 정의합니다.

차단 영역

차단 영역은 필터가 원치 않는 빛을 억제하도록 설계된 파장 범위입니다. 실제 시스템에서는 더 강력하거나 넓은 차단이 배경 신호, 산란광 및 검출기 간섭을 줄이는 데 도움이 됩니다.

광학 밀도 (OD)

차단 깊이 / 광학 밀도(OD)는 차단 영역에서 원치 않는 빛이 얼마나 강하게 억제되는지를 나타냅니다. 예를 들어, OD6 @ 200–1200nm는 필터가 200–1200nm 파장을 약 0.0001% 투과율로 차단하여 미광, 배경 신호 및 감지기 과부하를 줄이도록 설계되었음을 의미합니다.

입사각(AOI)

입사각(AOI)은 빛이 필터 표면에 도달하는 각도입니다. AOI가 증가하면 간섭 필터는 스펙트럼 이동을 보일 수 있으며, 일반적으로 투과 또는 전이 파장이 더 짧은 파장 쪽으로 이동합니다.

이 필터 확인에 도움이 필요하신가요?

기존 부품을 교체하시거나 새 시스템을 구축하시는 경우, 다음 정보를 보내주십시오:
- 원래 부품 번호 또는 목표 사양
- 필요한 크기 및 수량
- 적용 분야 또는 시스템 목표

저희가 제품 적합성을 확인해 드리거나 재고/맞춤형 대안을 제안해 드리겠습니다.

제품 적합성 확인
