Bandpass Filters for Range Finder

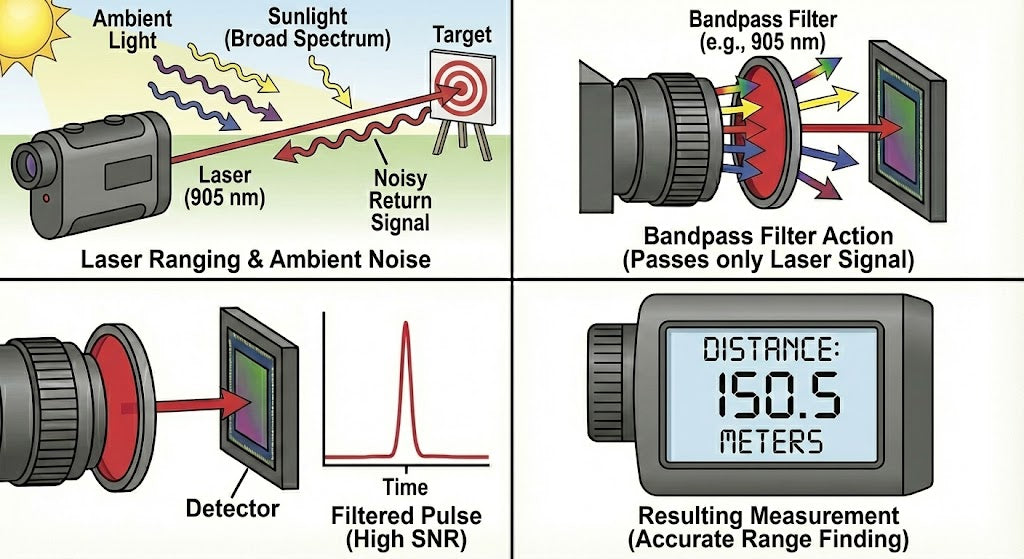

Bandpass filters are used in rangefinders mainly on the receiver side to help the detector see the returned laser signal more clearly.

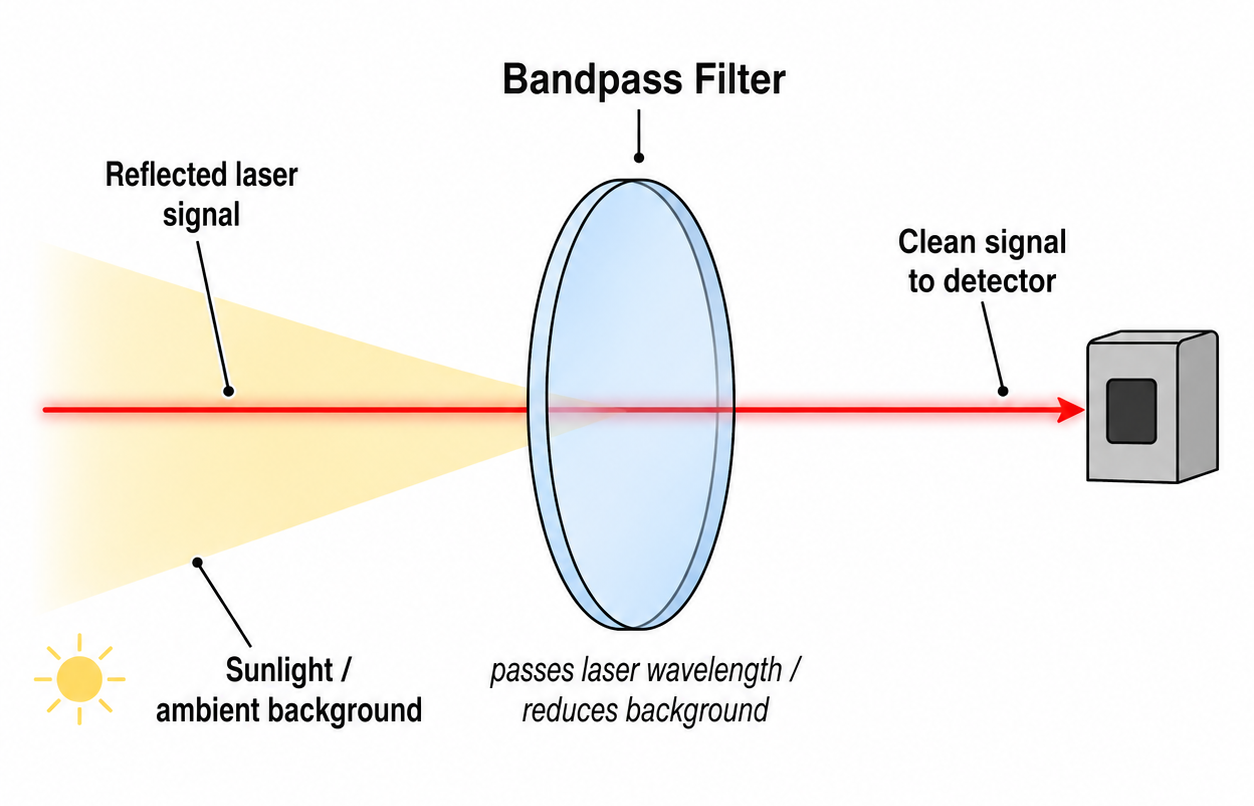

Diagram showing a laser rangefinder receiver using a bandpass filter to pass the reflected laser signal while reducing unwanted sunlight and ambient background before the detector.
Skip to results list

Filters

11 items
Center Wavelength (nm)
FWHM (nm)
Optical Density(OD)

Filter

Center Wavelength (nm)
FWHM (nm)
Optical Density(OD)

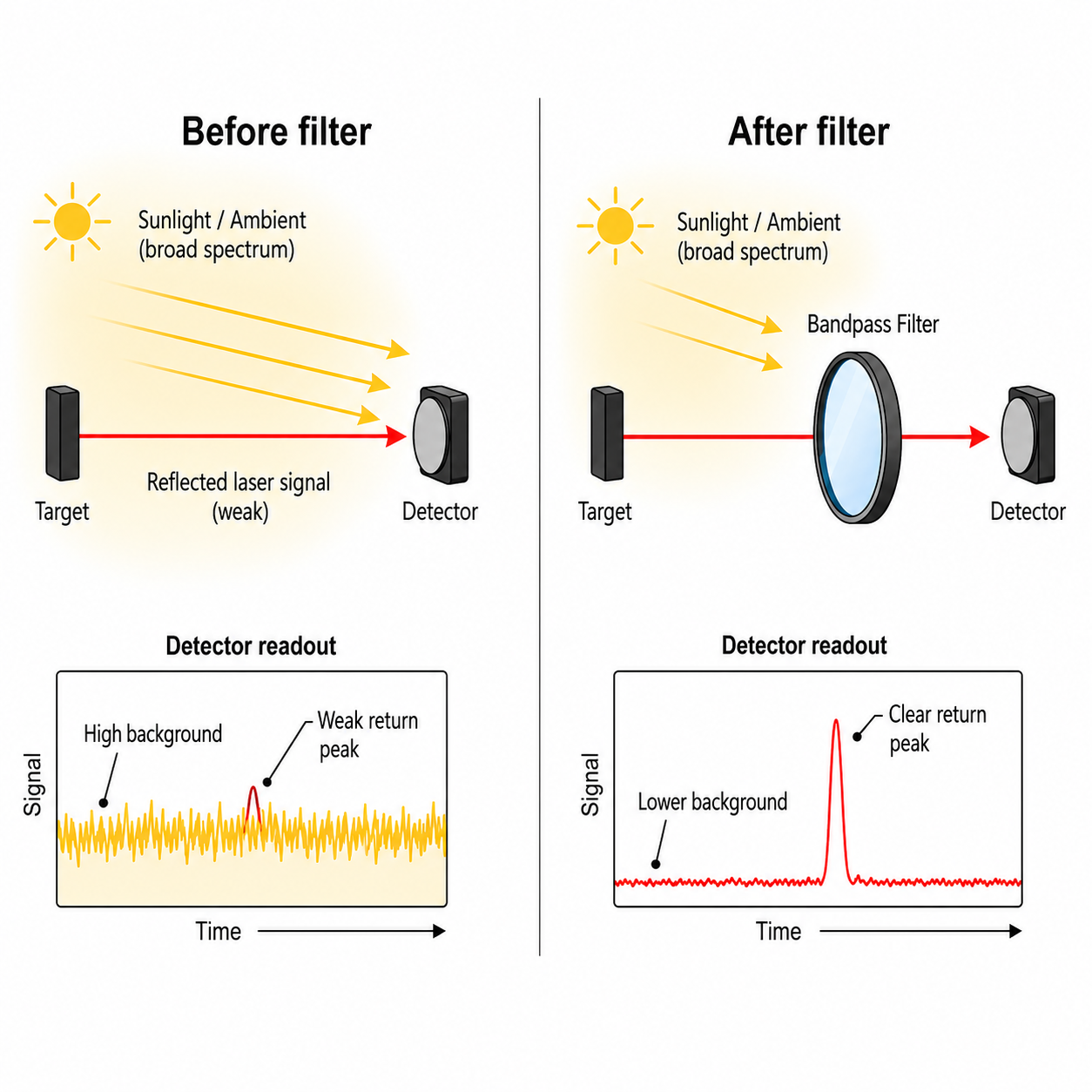

Before-and-after diagram showing how a bandpass filter reduces sunlight and ambient background so a rangefinder detector receives a clearer return signal.

Reduces sunlight and background light

Outdoor rangefinders receive a lot of unwanted light:

  • sunlight
  • sky background
  • reflections from surroundings
  • LED / lamp background
  • thermal or broadband background

A bandpass filter blocks much of this out-of-band light before it reaches the detector.

This helps improve:

  • signal-to-background ratio
  • detection stability
  • measurement reliability
  • maximum useful range

Match the Filter to the Rangefinder Laser Wavelength

Select the bandpass filter center wavelength to match the rangefinder laser source.

850nm → BP850
905nm → BP905
940nm → BP940
1064nm → BP1064
1550nm → BP1550

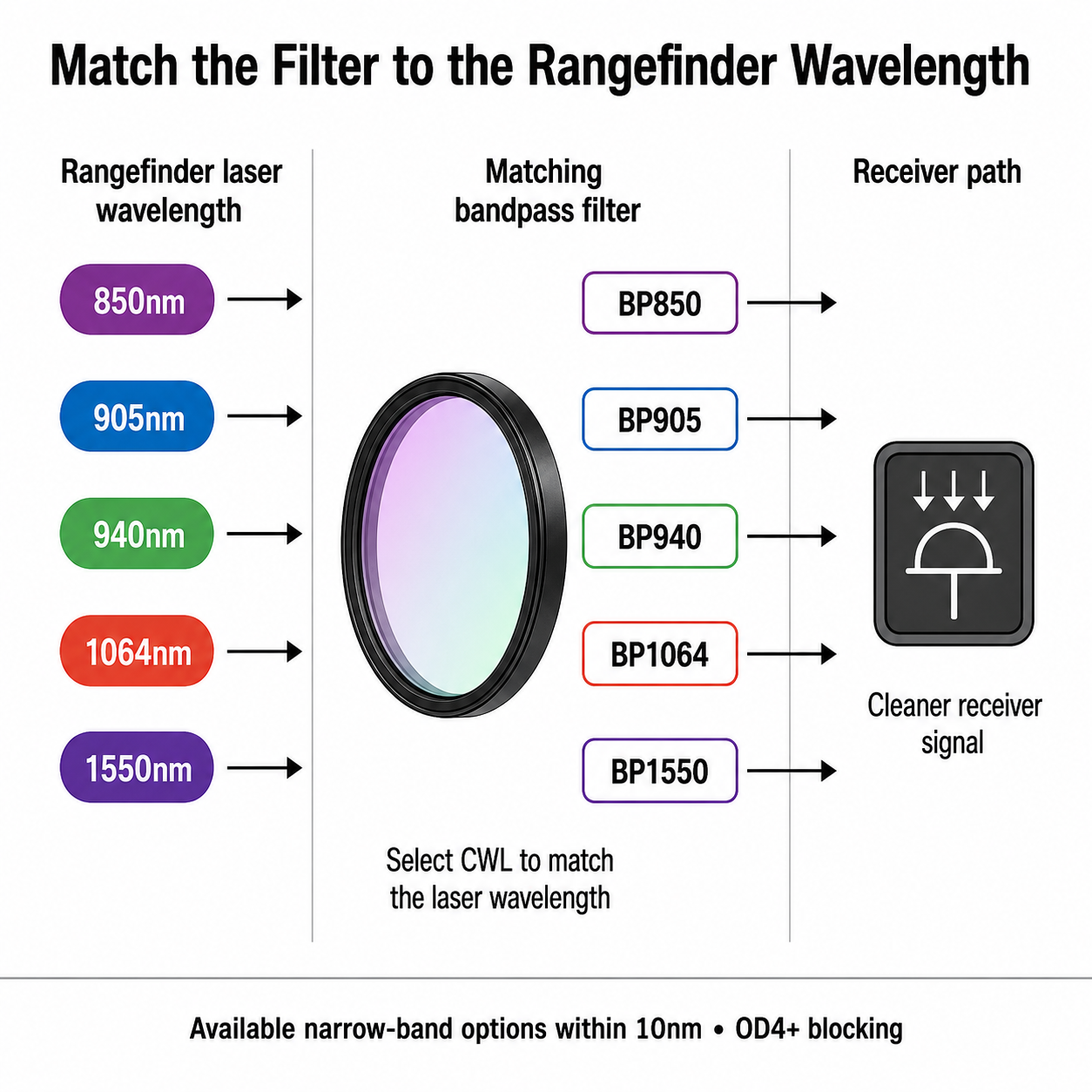

Diagram showing rangefinder laser wavelengths matched to corresponding bandpass filters, including 850nm, 905nm, 940nm, 1064nm, and 1550nm options.

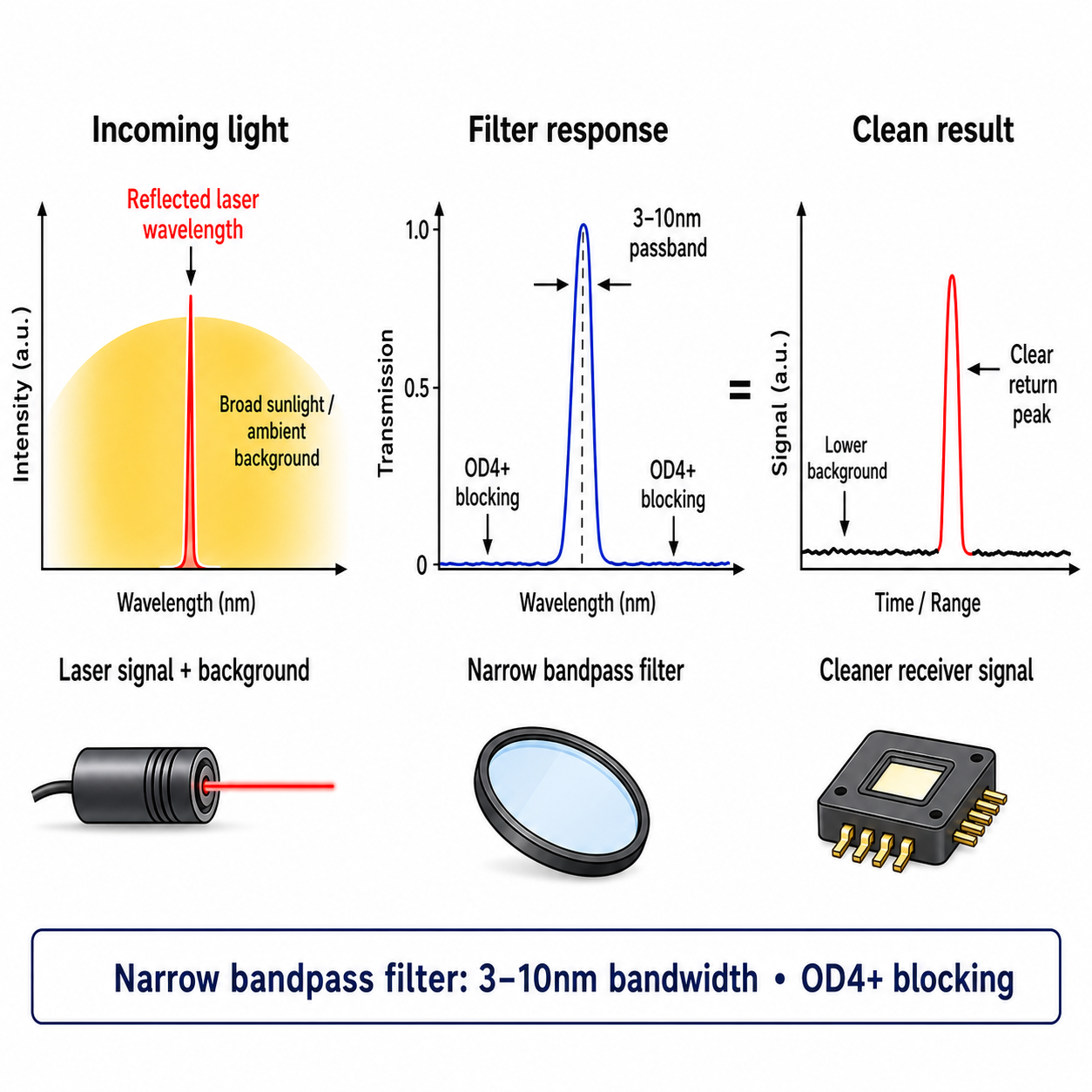

Infographic showing how a 3–10nm narrow bandpass filter with OD4+ blocking passes the laser return wavelength while reducing out-of-band background for a cleaner receiver signal.

Narrow Bandwidth and High Blocking for Receiver Filtering

  • 3–10nm bandwidth helps isolate the return signal
  • OD4+ blocking reduces unwanted background light
  • Cleaner receiver signal improves detection stability
