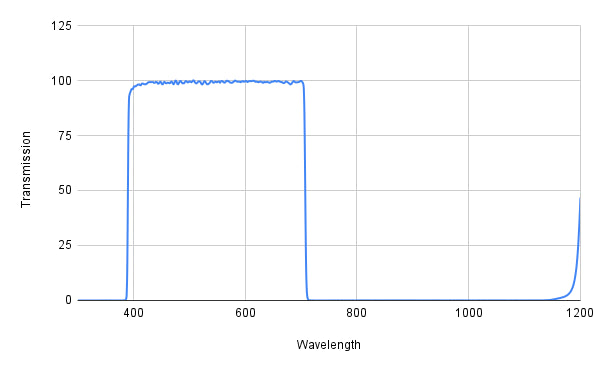

Spectral transmission curve with a blue line on a white background

SP700 Shortpass Filter (T＞95%@400-690nm, OD5@715-1080nm)

Cut-off = 700nm / T＞95%@400-690nm // OD5@715-1080nm / dia12.5mm(unmounted)
$50.00
Skip to product information
Spectral transmission curve with a blue line on a white background
  • Spectral transmission curve with a blue line on a white background
  • SP700 Shortpass Filter (T＞95%@400-690nm, OD5@715-1080nm)
  • SP700 Shortpass Filter (T＞95%@400-690nm, OD5@715-1080nm)
  • SP700 Shortpass Filter (T＞95%@400-690nm, OD5@715-1080nm)
  • SP700 Shortpass Filter (T＞95%@400-690nm, OD5@715-1080nm)
SP700 Shortpass Filter (T＞95%@400-690nm, OD5@715-1080nm)

SP700 Shortpass Filter (T＞95%@400-690nm, OD5@715-1080nm)

SO3030044
Cut-off Wavelength
Cut-off Wavelength
Cut-off = 700nm
Transmission // Blocking
Transmission // Blocking
T＞95%@400-690nm // OD5@715-1080nm
SO3030044n-d12.5u
In stock
$50.00
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa
Stock Availability

Yes. Listed filters are generally available from stock, but final availability may depend on size and quantity.

  • Most filters are kept as medium-sized coated pieces
  • Final size is usually diced before shipment
  • Preparation time may vary for urgent orders, custom sizes, or larger quantities
Custom Size & Mounting

We can usually cut optical filters to custom outer sizes, depending on available coated material.

Custom size
  • Typical custom size range: 3 × 3mm to 60 × 60mm
  • Custom sizing changes the outer dimension only
  • Thickness normally follows the original filter specification
  • Final feasibility depends on coated material size and cutting requirements
Mounting
  • Standard mounting options are
    dia12.5mm (mounted) - OD = dia12.5mm,Thickness=3.5mm,No Thread
    dia25mm (mounted) - OD = dia25mm,Thickness=3.5mm,No Thread
  • Mounted options can include non-threaded or threaded mounts
  • Custom mounting may be possible depending on quantity and mechanical requirements
Note
  • Please send the required size, quantity, mounting type, and product link before ordering.
Request Raw Data

Yes. You may request the transmission curve or related spectral data for engineering review.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
Shipment & Delivery

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost
  • Shipping is generally USD 5–40 per parcel
  • Orders above USD 300 are eligible for free shipping
  • Final cost depends on destination, package size, order value, and shipping method
  • Shipping cost is shown during checkout or confirmed before payment
Shipping coverage
  • We generally ship to Europe, North America, Asia, the Middle East, and Oceania
  • Some countries may be unavailable depending on logistics or customs conditions
Delivery time
  • Most stocked products need 1–5 working days for preparation before shipment
  • After shipment, delivery time depends on destination and shipping method
  • Tracking information will be provided when available
Note
  • If your destination is not available during checkout, please contact us before ordering.
Payment & Quotation

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?
  • Yes, formal quotations are available before payment
  • Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
  • Please send the product link, quantity, destination country, and billing details if available
What online payment methods are available?
  • Credit card
  • Apple Pay
  • Google Pay
Do you support bank transfer?
  • Yes, bank transfer is available
  • We support multi-currency payment through local banking where available
  • Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
  • For payment in Chinese RMB inside Mainland China, please contact our local partner
  • VAT fapiao may be supported for eligible Mainland China transactions
Do you support company purchase orders?
  • Company purchase orders may be supported after confirmation
  • Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching
Are NET payment terms available? (Pay after received)
  • NET 7 or NET 30 terms may be available for eligible organizations
  • Approval depends on company type, order value, payment history, and internal review
  • Please contact us before ordering if you need NET payment terms
Import, Duties & Customs

mport duties, taxes, and customs handling depend on your destination country and shipping method.

Are duties and taxes included?
  • For express courier services such as DHL or FedEx, duties, taxes, and customs handling are usually paid by the buyer
  • The final import cost depends on destination country, declared value, and local customs rules
  • Duties and taxes are not included unless clearly confirmed before payment
Can SyronOptics help with import clearance?
  • Import-handled delivery may be available for selected regions
  • Supported regions may include USA, Canada, United Kingdom,Europe, Mainland China, Hong Kong, Singapore, Australia, and New Zealand
  • With import-handled delivery, we help arrange clearance and local delivery
  • This option may be slower than express courier
Note
  • If you are not sure, please contact us to confirm whether import-handled delivery is supported in your region.

This SP700 shortpass filter is designed to transmit shorter wavelengths while reducing longer-wavelength infrared light. It is suitable for imaging, sensing, and optical inspection systems where shorter-wavelength signal needs to be separated from longer-wavelength background using broadband illumination or wavelength-centered signal detection setups. It helps reduce long-wavelength interference, protect detectors from unwanted infrared light, and improve signal clarity in shorter-wavelength measurements.

Key specifications:

  • Wavelength / main spec: 700 nm cut-off wavelength
  • Bandwidth / transition spec: See specification table for transition characteristics
  • Transmission / blocking: T >95%; OD5 blocking from 715-1080 nm
  • Format / custom option: Available in Dia 12.5mm to dia 25mm (mounted/unmounted), 60x60mm(unmounted); Custom sizes and mounting options available on request
SP700 Shortpass Filter - Microscopy and Projection

SP700 Shortpass Filter - Microscopy and Projection

Microscopy and Projection (Protecting Heat-Sensitive Samples)

Very bright lights used in medical microscopes or video projectors produce intense infrared radiation, which is essentially pure heat. If left unchecked, this heat can literally cook a delicate biological sample on a microscope slide or melt the plastic components inside a projector. This filter acts as a "heat shield" (often called a hot mirror), letting the useful bright light through while stopping the destructive heat.

Recommended light source:

  • Tungsten-Halogen lamps: These are heavily used in biology microscopes to illuminate cells. The advantage of using them with this filter is that you get the bright, continuous light needed to see tiny details without drying out or burning the live cells you are studying.
  • Xenon Arc lamps: These are incredibly bright, intense lights used in theater projectors and advanced science equipment. They produce a huge amount of heat. Using this filter allows you to harness the sun-like brightness of the Xenon bulb while safely reflecting the dangerous heat away from the equipment.

SP700 Shortpass Filter - Laser Safety Windows and Surgery

Laser Safety Windows and Surgery (Blocking Dangerous Lasers)

In industrial cutting, welding, or medical surgeries, powerful invisible lasers (like Nd:YAG lasers at 1064nm or diode lasers at 808nm) are used. Because these lasers are invisible, they are very dangerous to the human eye and to security cameras. This filter can be used as a viewing window. It completely completely blocks the dangerous invisible laser from escaping, while letting the operator safely see what is happening inside the machine in normal color.

Recommended light source:

  • Standard White Room Lighting (Fluorescent or LED): The primary advantage is that the filter lets almost 100% of this everyday light pass through. This allows the human operator or standard security camera to monitor the workspace clearly and naturally without the window looking heavily tinted or dark.
  • Visible Red Aiming Lasers (e.g., 650nm): Because the main cutting laser is invisible, operators often use a weak visible red laser to show where the machine is aiming. The advantage of this filter is that it allows the safe red aiming laser to pass right through to the viewer's eye, while aggressively blocking the dangerous invisible cutting laser.

Similar Bandpass Filters

Product Faqs

Cut-on / Cut-off Wavelength

Need Help Confirming This Filter?

Whether you are replacing an existing part or building a new system, send us:
- Original part number or target specification
- Required size and quantity
- Application or system goal

We will help check product fit or suggest a stock/custom alternative.
