SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)

SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)

Cut-off = 600nm / T＞90%@400-590nm // OD4@610-1200nm / dia12.5mm(unmounted)
$45.00
Skip to product information
SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)
  • SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)
  • SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)
  • SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)
  • SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)
  • SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)
SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)

SP600 Shortpass Filter (T＞90%@400-590nm, OD4@610-1200nm)

SO3030039
Cut-off Wavelength
Cut-off Wavelength
Cut-off = 600nm
Transmission // Blocking
Transmission // Blocking

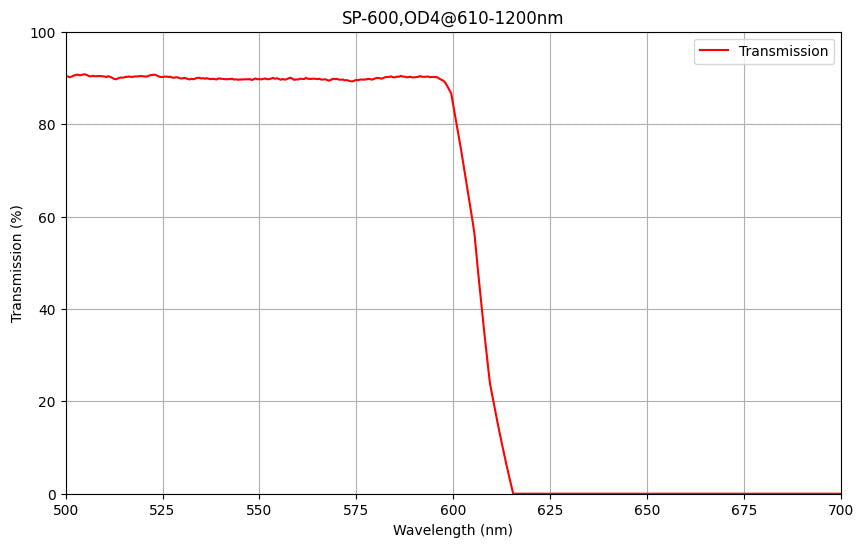

T＞90%@400-590nm // OD4@610-1200nm
SO3030039n-d12.5u
In stock
$45.00
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa
Stock Availability

Yes. Listed filters are generally available from stock, but final availability may depend on size and quantity.

  • Most filters are kept as medium-sized coated pieces
  • Final size is usually diced before shipment
  • Preparation time may vary for urgent orders, custom sizes, or larger quantities
Custom Size & Mounting

We can usually cut optical filters to custom outer sizes, depending on available coated material.

Custom size
  • Typical custom size range: 3 × 3mm to 60 × 60mm
  • Custom sizing changes the outer dimension only
  • Thickness normally follows the original filter specification
  • Final feasibility depends on coated material size and cutting requirements
Mounting
  • Standard mounting options are
    dia12.5mm (mounted) - OD = dia12.5mm,Thickness=3.5mm,No Thread
    dia25mm (mounted) - OD = dia25mm,Thickness=3.5mm,No Thread
  • Mounted options can include non-threaded or threaded mounts
  • Custom mounting may be possible depending on quantity and mechanical requirements
Note
  • Please send the required size, quantity, mounting type, and product link before ordering.
Request Raw Data

Yes. You may request the transmission curve or related spectral data for engineering review.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
Shipment & Delivery

We ship optical products to most supported regions, with shipping cost and delivery method confirmed before payment.

Shipping cost
  • Shipping is generally USD 5–40 per parcel
  • Orders above USD 300 are eligible for free shipping
  • Final cost depends on destination, package size, order value, and shipping method
  • Shipping cost is shown during checkout or confirmed before payment
Shipping coverage
  • We generally ship to Europe, North America, Asia, the Middle East, and Oceania
  • Some countries may be unavailable depending on logistics or customs conditions
Delivery time
  • Most stocked products need 1–5 working days for preparation before shipment
  • After shipment, delivery time depends on destination and shipping method
  • Tracking information will be provided when available
Note
  • If your destination is not available during checkout, please contact us before ordering.
Payment & Quotation

You can order online, request a quotation, or use bank transfer depending on your purchasing process.

Can I request a quotation before ordering?
  • Yes, formal quotations are available before payment
  • Recommended for company purchases, larger quantities, custom sizes, or special shipping requirements
  • Please send the product link, quantity, destination country, and billing details if available
What online payment methods are available?
  • Credit card
  • Apple Pay
  • Google Pay
Do you support bank transfer?
  • Yes, bank transfer is available
  • We support multi-currency payment through local banking where available
  • Local receiving accounts may include US, UK, Germany, Singapore, and Hong Kong bank accounts
  • For payment in Chinese RMB inside Mainland China, please contact our local partner
  • VAT fapiao may be supported for eligible Mainland China transactions
Do you support company purchase orders?
  • Company purchase orders may be supported after confirmation
  • Please contact us before ordering if your organization requires PO processing, quotation, or invoice matching
Are NET payment terms available? (Pay after received)
  • NET 7 or NET 30 terms may be available for eligible organizations
  • Approval depends on company type, order value, payment history, and internal review
  • Please contact us before ordering if you need NET payment terms
Import, Duties & Customs

mport duties, taxes, and customs handling depend on your destination country and shipping method.

Are duties and taxes included?
  • For express courier services such as DHL or FedEx, duties, taxes, and customs handling are usually paid by the buyer
  • The final import cost depends on destination country, declared value, and local customs rules
  • Duties and taxes are not included unless clearly confirmed before payment
Can SyronOptics help with import clearance?
  • Import-handled delivery may be available for selected regions
  • Supported regions may include USA, Canada, United Kingdom,Europe, Mainland China, Hong Kong, Singapore, Australia, and New Zealand
  • With import-handled delivery, we help arrange clearance and local delivery
  • This option may be slower than express courier
Note
  • If you are not sure, please contact us to confirm whether import-handled delivery is supported in your region.

This SP600 shortpass filter is designed to transmit shorter wavelengths while reducing longer-wavelength infrared light. It is suitable for imaging, sensing, and optical inspection systems where shorter-wavelength signal needs to be separated from longer-wavelength background using broadband illumination or wavelength-centered signal detection setups. It helps reduce long-wavelength interference, protect detectors from unwanted infrared light, and improve signal clarity in shorter-wavelength measurements.

Key specifications:

  • Wavelength / main spec: 600 nm cut-off wavelength
  • Bandwidth / transition spec: See specification table for transition characteristics
  • Transmission / blocking: T >90%; OD4 blocking from 610-1200 nm
  • Format / custom option: Available in Dia 12.5mm to dia 25mm (mounted/unmounted), 60x60mm(unmounted); Custom sizes and mounting options available on request
SP600 Shortpass Filter - Heat Shielding for Medical & Biological Imaging

SP600 Shortpass Filter - Heat Shielding for Medical & Biological Imaging

Heat Shielding for Medical & Biological Imaging

Because this filter heavily blocks the 610-1200nm range (which contains mostly heat-carrying near-infrared energy), it acts as a thermal shield. It allows a camera, microscope, or medical scope to clearly see a subject in visible light (up to yellow) without accidentally burning or drying out sensitive biological tissues and expensive camera sensors with infrared heat.

Recommended light source:

  • Tungsten-Halogen Lamps: These traditional bulbs are notorious for throwing off a massive amount of infrared heat. The filter's main advantage is acting as a safety barrier, stripping away the dangerous heat while letting the useful, safe visible light pass through.
  • High-Power Fiber Optic Illuminators: Often used in endoscopes or close-up industrial scopes, the filter ensures the intense, concentrated light being piped through doesn't overheat the delicate area being examined.
SP600 Shortpass Filter - Machine Vision and Factory Automation

SP600 Shortpass Filter - Machine Vision and Factory Automation

Machine Vision and Factory Automation

Automated cameras on assembly lines often need high contrast to quickly spot defects, read barcodes, or align parts. This filter helps the camera focus exclusively on cool colors (violet to yellow) while acting like heavy-duty sunglasses to block out distracting red light, infrared glare from hot machinery, or ambient sunlight bouncing around the factory floor.

Recommended light source:

  • Blue/Green LED Ring Lights: These provide bright, shadow-free illumination. The filter ensures the camera only sees this specific lighting and entirely ignores stray infrared background noise.
  • High-Intensity White LEDs: The filter neatly chops off the red and near-infrared tail of the white light, providing the camera with a cleaner, high-contrast view of the inspected materials without sensor glare.

Similar Bandpass Filters

Product Faqs

Cut-on / Cut-off Wavelength

Need Help Confirming This Filter?

Whether you are replacing an existing part or building a new system, send us:
- Original part number or target specification
- Required size and quantity
- Application or system goal

We will help check product fit or suggest a stock/custom alternative.
