BP1030-10 Bandpass Filter(CWL=1030nm,FWHM=10nm)
BP1030-10 Bandpass Filter(CWL=1030nm,FWHM=10nm)
PN:SO3010007
Couldn't load pickup availability
Advanced Near-Infrared Filter - BP1030-10
Unlock advanced near-infrared capabilities with our BP1030-10 bandpass filter, precision-engineered for demanding applications at 1030nm. This high-performance filter delivers exceptional spectral selectivity with a narrow 10nm full width at half maximum (FWHM) and superior OD3+ blocking, making it the ideal choice for laser systems, biomedical applications, and precision NIR spectroscopy requiring maximum wavelength control.
Superior Performance:
- Center Wavelength: 1030nm - Optimized for advanced near-infrared applications
- Narrow Bandwidth: 10nm FWHM for exceptional spectral precision
- Superior Blocking: OD3+ optical density for outstanding out-of-band rejection
- Laser Compatible: Designed for high-performance laser and photonic systems
- Precision Grade: Built for demanding measurement and analytical applications
Critical Applications:
Essential for Yb:YAG laser systems, advanced biomedical imaging, precision spectroscopy, and optical coherence tomography (OCT). The 1030nm wavelength is particularly valuable for fiber laser applications, medical diagnostics, materials processing, and applications requiring deep tissue penetration with minimal water absorption interference.
Laser System Excellence:
The BP1030-10 is specifically optimized for 1030nm laser systems where precise wavelength selection is critical for optimal performance. The narrow 10nm bandwidth ensures maximum laser efficiency while effectively blocking unwanted spectral components that could compromise beam quality and system performance.
Biomedical Applications:
Widely adopted in advanced biomedical imaging systems, including OCT, multiphoton microscopy, and deep tissue imaging applications. The 1030nm wavelength provides excellent tissue penetration characteristics while the narrow bandwidth enables precise spectral discrimination for enhanced imaging contrast and resolution.
Technical Advantages:
The BP1030-10's narrow 10nm passband delivers unmatched spectral purity at 1030nm, essential for applications where precise wavelength control directly impacts system performance. This exceptional selectivity eliminates spectral interference and ensures reliable operation in demanding optical environments.
Advanced Spectroscopy:
Perfect for high-resolution NIR spectroscopy, materials characterization, and analytical instrumentation requiring precise 1030nm wavelength isolation. The filter's superior blocking characteristics ensure clean spectral measurements free from unwanted background radiation.
SyronOptics Engineering Excellence:
Each BP1030-10 filter undergoes comprehensive testing to ensure precise center wavelength accuracy, consistent transmission characteristics, and reliable blocking performance. Our advanced manufacturing processes guarantee the exceptional quality your most critical near-infrared applications demand.

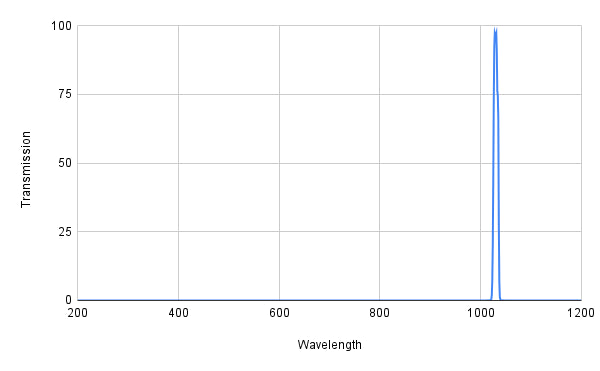

Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
