BP1064-60 Bandpass Filter(CWL=1064nm,FWHM=60nm)
BP1064-60 Bandpass Filter(CWL=1064nm,FWHM=60nm)
PN:SO3010027
Couldn't load pickup availability
Balanced Performance Nd:YAG Laser Bandpass Filter
The BP1064-60 Bandpass Filter is precision-engineered for Nd:YAG laser applications requiring optimal balance between spectral selectivity and bandwidth tolerance. With its 1064nm center wavelength and moderate 60nm FWHM, this filter delivers excellent performance for laser systems, industrial processing, and biomedical applications requiring reliable Nd:YAG wavelength filtering.
Key Features:
- Nd:YAG Optimized: 1064nm center wavelength ±2nm tolerance for laser applications
- Balanced Bandwidth: 60nm FWHM for optimal spectral performance
- High Transmission: >88% peak transmission in passband
- Superior Blocking: Excellent rejection of harmonics and unwanted wavelengths
- Laser-Grade Quality: Hard-coated surfaces for high-power applications
- Temperature Stable: Minimal wavelength shift across operating range
Versatile Applications:
- Nd:YAG laser systems and processing
- Industrial laser cutting and welding
- Medical laser applications
- Laser rangefinding and LIDAR systems
- Scientific research and spectroscopy
- Laser safety and protection systems
Technical Specifications:
- Center Wavelength (CWL): 1064nm
- Full Width Half Maximum (FWHM): 60nm
- Passband Range: ~1034nm to 1094nm
- Substrate: Laser-grade optical glass
- Coating: Multi-layer dielectric coating
- Surface Quality: 40-20 scratch-dig
- Parallelism: <30 arcseconds
- Clear Aperture: >90% of diameter
Balanced Performance Advantages:
The 60nm bandwidth provides the ideal balance for:
- Good spectral selectivity without overly restrictive bandwidth
- Tolerance to laser wavelength variations and temperature effects
- Compatibility with various Nd:YAG laser configurations
- Optimal performance for both CW and pulsed laser systems
- Reduced sensitivity to manufacturing and alignment tolerances
This filter is specifically designed for the fundamental 1064nm line of Nd:YAG lasers, providing excellent transmission while effectively blocking harmonics (532nm, 355nm) and other unwanted wavelengths that could interfere with system performance.
Perfect for engineers and researchers working with Nd:YAG laser systems where reliable performance and practical bandwidth tolerance are essential. Each filter undergoes comprehensive testing to ensure consistent optical performance and long-term reliability in demanding laser applications.

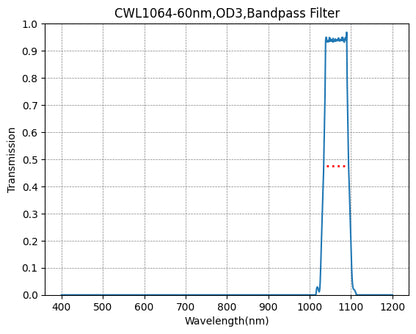

Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
