• Graph showing the transmission rate on the y-axis against wavelength on the x-axis for a bandpass filter with a central wavelength of 1080nm and a bandwidth of 140nm.
1 2

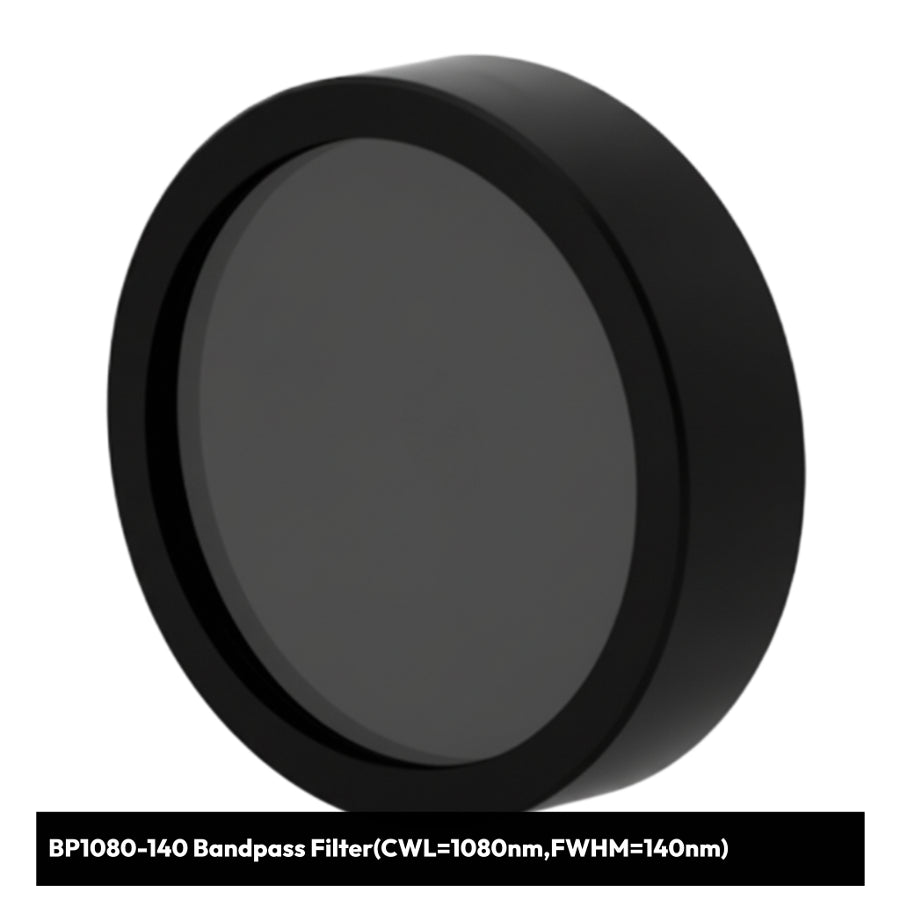

BP1080-140 Bandpass Filter(CWL=1080nm,FWHM=140nm)

BP1080-140 Bandpass Filter(CWL=1080nm,FWHM=140nm)

PN:SO3010037

$115.00 USD
$115.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Filter Sizes

Wide-Bandwidth Near-Infrared Bandpass Filter

The BP1080-140 Bandpass Filter is designed for near-infrared applications requiring extensive spectral coverage with excellent out-of-band rejection. With its 1080nm center wavelength and wide 140nm FWHM, this filter provides comprehensive NIR transmission ideal for broadband spectroscopy, multi-wavelength imaging, and applications requiring tolerance to wavelength variations.

Key Features:

  • NIR Optimized: 1080nm center wavelength for optimal NIR performance
  • Wide Bandwidth: 140nm FWHM for extensive spectral coverage
  • High Transmission: >80% average transmission across passband
  • Effective Blocking: Superior rejection of visible and far-IR radiation
  • Robust Construction: Hard-coated surfaces for industrial durability
  • Stable Performance: Minimal temperature-induced wavelength drift

Versatile Applications:

  • Broadband NIR spectroscopy and analysis
  • Multi-wavelength laser systems
  • Agricultural and food quality assessment
  • Biomedical imaging and diagnostics
  • Industrial process monitoring
  • Telecommunications and fiber optics

Technical Specifications:

  • Center Wavelength (CWL): 1080nm
  • Full Width Half Maximum (FWHM): 140nm
  • Passband Range: ~1010nm to 1150nm
  • Substrate: NIR-optimized optical glass
  • Coating: Multi-layer broadband coating
  • Surface Quality: 40-20 scratch-dig
  • Parallelism: <30 arcseconds
  • Clear Aperture: >90% of diameter

Wide Bandwidth Advantages:

The generous 140nm bandwidth makes this filter perfect for:

  • Applications with multiple NIR wavelengths or broadband sources
  • Systems requiring tolerance to laser wavelength drift
  • Temperature-sensitive applications with varying operating conditions
  • Multi-channel NIR systems and LED arrays
  • Spectroscopic applications covering wide NIR ranges

This filter effectively isolates a broad NIR spectrum while blocking unwanted visible light and longer infrared wavelengths that could interfere with NIR detectors and sensors.

Ideal for researchers and engineers working with broadband NIR applications where comprehensive wavelength coverage is essential. Each filter is manufactured using advanced coating techniques and undergoes rigorous testing to ensure consistent optical performance across the entire passband.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
