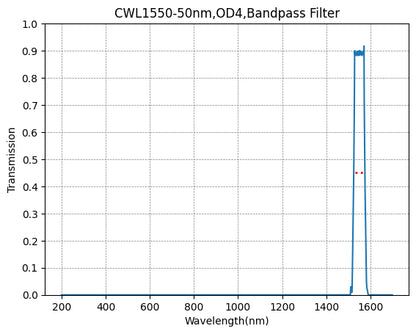

• A graph showing the transmission levels across different wavelengths for a bandpass filter, with a central wavelength (CWL) marked at 1550nm and a bandwidth (FWHM) of 50nm.

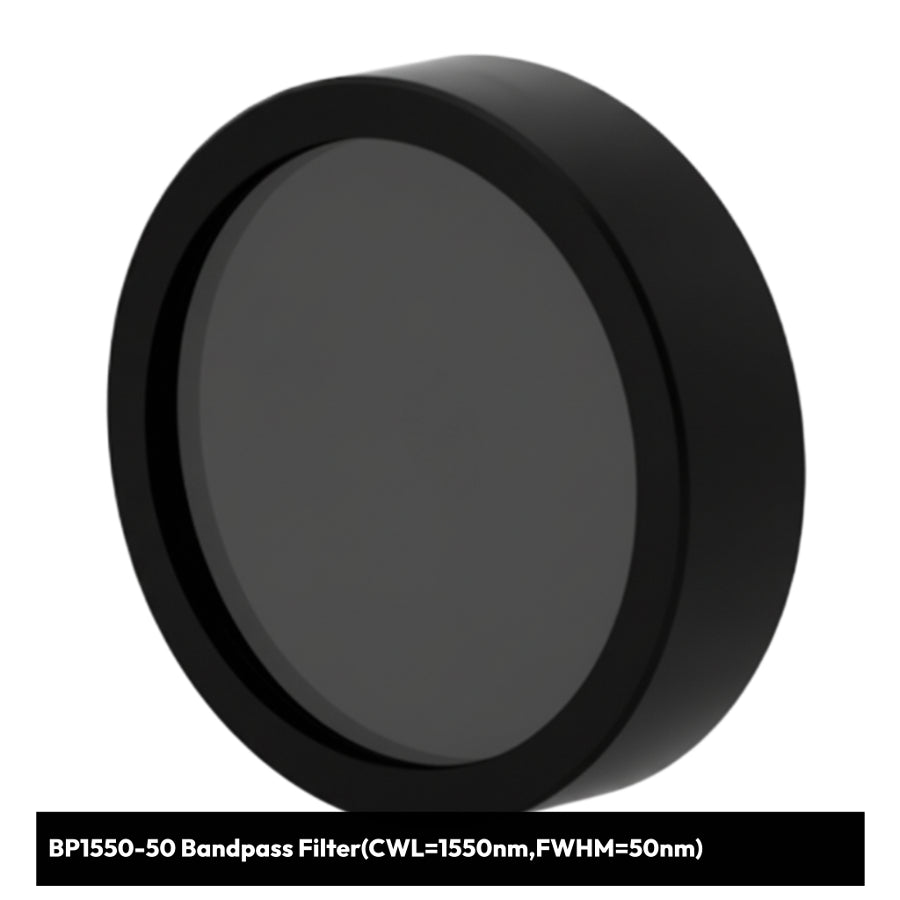

  • Black bandpass filter with technical specifications on a white background
1 2

BP1550-50 Bandpass Filter(CWL=1550nm,FWHM=50nm)

BP1550-50 Bandpass Filter(CWL=1550nm,FWHM=50nm)

PartNumber:SO3010049

$115.00 USD
$115.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Filter Sizes

In Stock.

Ships within 5 working days of order.

Holiday notice: Orders placed Feb 10–25 may ship later than usual. Free shipping applies during this period.
  • Wavelength: Center wavelength 1550nm with 50nm FWHM bandwidth for short-wave infrared spectrum transmission
  • Spectral Features: Wide bandwidth with smooth passband for versatile SWIR filtering applications
  • Optical Density: OD4+ blocking outside passband for superior background suppression
  • Filter Dimension Availability: Available in standard round and square formats to fit common optical mounts

Request Raw Data

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

Shipment & Delivery

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

Return & Refund

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

Custom Sizing

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

Payment Terms

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

View full details
  • BP1550-50 Bandpass Filter - LiDAR (Automotive & Autonomous Systems)

    BP1550-50 Bandpass Filter - LiDAR (Automotive & Autonomous Systems)

    LiDAR (Automotive & Autonomous Systems)

    • Why: 1550 nm is a popular wavelength for LiDAR because it is "eye-safe." The fluid in the human eye absorbs this wavelength before it reaches the retina, allowing systems to use higher power levels for longer range detection without risking eye damage.
    • Function: The filter blocks sunlight and other ambient noise, ensuring the sensor only detects the returning laser pulse.

    Recommended Light Sources

    • 1550 nm Pulsed Laser Diode / Fiber Laser: High peak power handling allows for long-range detection while remaining "eye-safe," as the 1550 nm wavelength is absorbed by the eye's cornea and lens rather than damaging the retina.
  • BP1550-50 Bandpass Filter - Biomedical Imaging (OCT)

    BP1550-50 Bandpass Filter - Biomedical Imaging (OCT)

    Biomedical Imaging (OCT)

    • Why: This wavelength offers deeper tissue penetration with reduced scattering compared to visible light.
    • Function: Used in Optical Coherence Tomography (OCT) for high-resolution imaging of biological tissues.

    Recommended Light Sources

    • Swept-Source Laser (or Superluminescent Diode): These sources provide the broad bandwidth (or rapid wavelength tuning) essential for high-resolution depth profiling (coherence gating), allowing the system to fully exploit the 1550 nm window for deep tissue penetration where scattering is minimized.

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For standard mounting (mounted,non-thread):

  • 3.5mm (by default)
  • 6mm (by request)

For unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount:

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a
