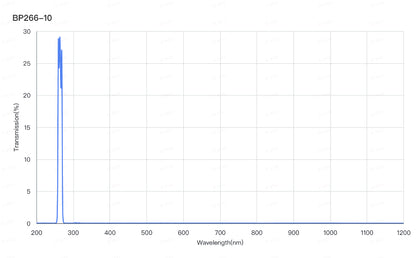

• A plot of a bandpass filter with a central wavelength of 266nm and a width of 10nm, labeled as BP266-10.
1 2

BP266-10 Bandpass Filter(CWL=266nm,FWHM=10nm)

BP266-10 Bandpass Filter(CWL=266nm,FWHM=10nm)

PN:SO3010062

$60.00 USD
$60.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Premium Deep UV Laser Line Bandpass Filter

The BP266-10 bandpass filter is engineered for the critical 266nm deep UV laser line, delivering exceptional performance for the most demanding ultraviolet applications. With its ultra-narrow 10nm full-width half-maximum (FWHM), this filter provides outstanding spectral selectivity and laser line cleanup in the challenging deep UV spectrum.

Exceptional Specifications:

  • Center Wavelength: 266nm ± 2nm precision
  • Ultra-Narrow Bandwidth: 10nm FWHM for maximum selectivity
  • High Deep UV Transmission: >80% peak transmission
  • Superior Blocking: OD3+ out-of-band rejection
  • Deep UV Resistant: Hard-coated for extreme UV durability

Critical Applications:

  • Nd:YAG fourth harmonic laser line cleanup
  • Deep UV laser spectroscopy and analysis
  • Semiconductor laser-based inspection systems
  • Advanced photolithography processes
  • Deep UV fluorescence microscopy
  • Precision laser micromachining

The 266nm Deep UV Laser Advantage:

At 266nm, this filter targets the fourth harmonic of Nd:YAG lasers, a critical wavelength for semiconductor inspection and advanced materials processing. The ultra-narrow 10nm bandwidth ensures exceptional laser line cleanup, removing unwanted spectral components that can compromise precision in deep UV applications.

Trust SyronOptics for your most demanding deep UV laser applications. Our specialized deep UV coatings and precision manufacturing ensure reliable performance in extreme ultraviolet environments where accuracy is paramount.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

bp266-10-m12.7

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
