• Black bandpass filter with technical specifications on a white background
1 2

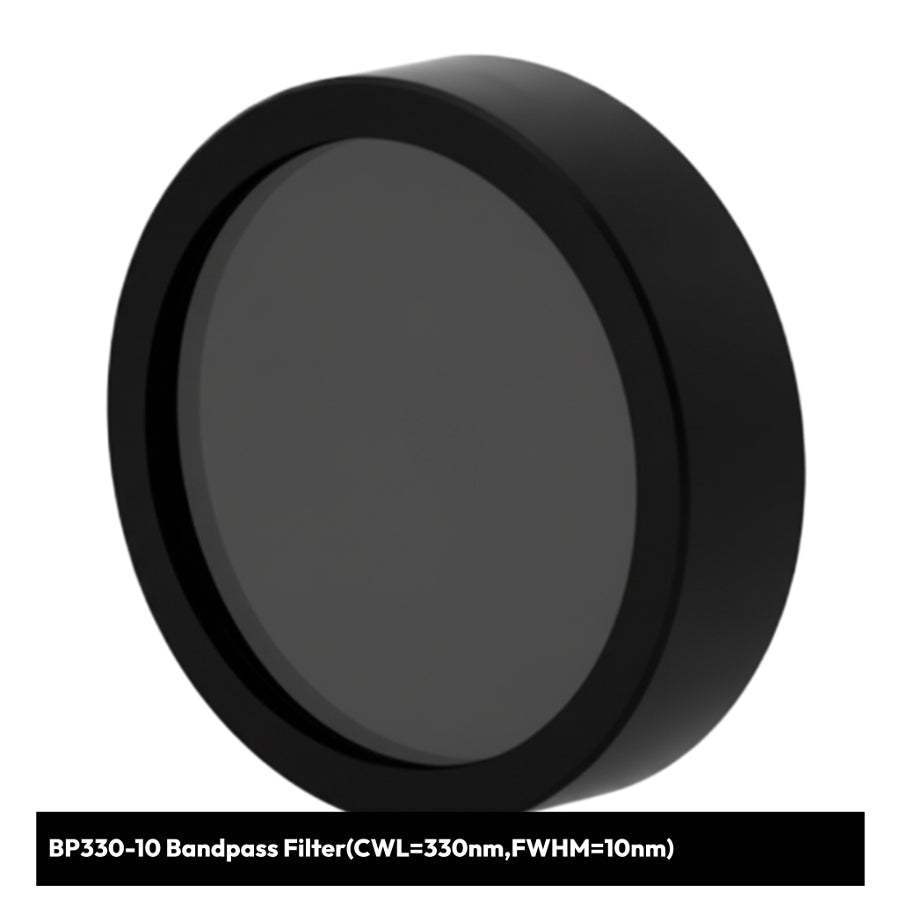

BP330-10 Bandpass Filter(CWL=330nm,FWHM=10nm)

BP330-10 Bandpass Filter(CWL=330nm,FWHM=10nm)

PartNumber:SO3010072

$60.00 USD
$60.00 USD
Sale Sold out
Shipping calculated at checkout.

55 in stock

Center Wavelength (CWL)
Optical Density // Peak Transmission (Tpk)
Dimension

In Stock.

Ships within 5 working days of order. Customs handling including. (DDP)

Net 30 payment terms for organizational purchase orders.

SO3010072-d12.5mt

Email shop@syronoptics.com For Customization Options

  • Wavelength: Center wavelength 330nm with 10nm FWHM bandwidth for narrow-band UV-B spectrum transmission
  • Spectral Features: Ultra-narrow bandwidth with steep edge transitions for precise UV spectral isolation
  • Optical Density: OD4+ blocking outside passband for superior background suppression
  • Filter Dimension Availability: Available in standard round and square formats to fit common optical mounts

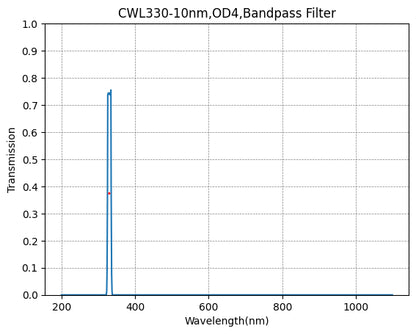

Request Raw Data

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

Shipment & Delivery

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

Return & Refund

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

Custom Sizing

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

Payment Terms

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

View full details

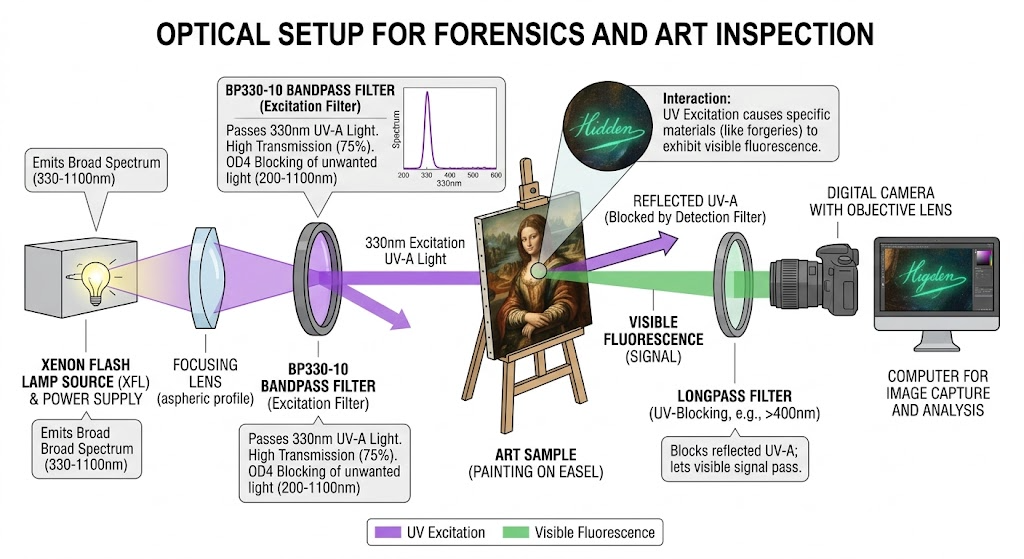

  • BP330-10 Bandpass Filter - Forensics and Art Inspection

    BP330-10 Bandpass Filter - Forensics and Art Inspection

    Forensics and Art Inspection

    Investigators and art historians use this exact wavelength of UV light to spot things the naked eye cannot see. It can reveal forged signatures on paintings, hidden chemical traces at a crime scene, or alterations in important documents by making specific hidden materials glow.

    Recommended light source:

    • Xenon Flash Lamp light source: Delivers an incredibly bright, intense burst of light (like a camera flash) that is great for taking clear, high-contrast UV photographs.
    • Broad UV-A Blacklight light source: A portable and cost-effective option that allows investigators to scan large areas, relying on the filter to block out everything but the exact 330nm target.

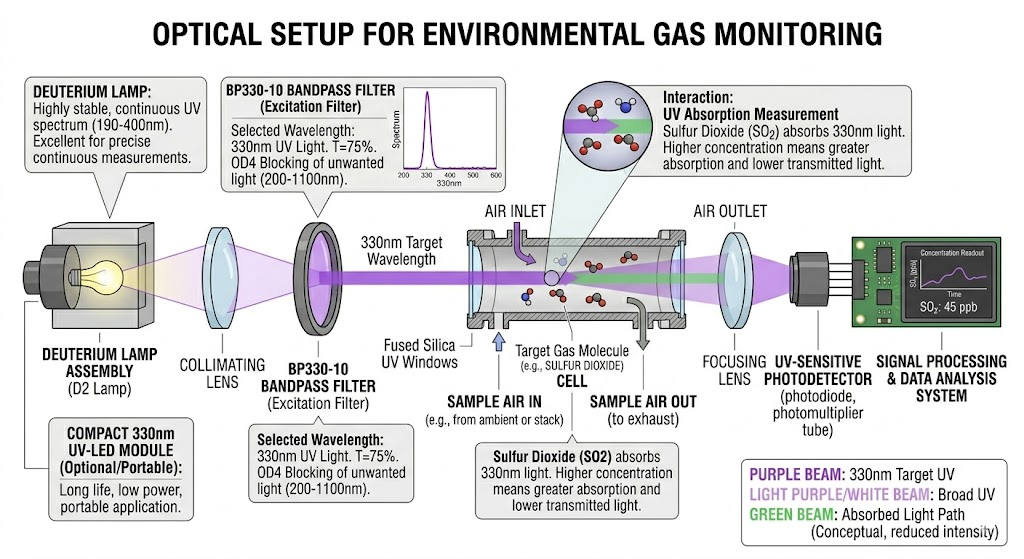

  • BP330-10 Bandpass Filter - Environmental Gas Monitoring

    BP330-10 Bandpass Filter - Environmental Gas Monitoring

    Environmental Gas Monitoring

    Used inside air quality sensors to detect invisible pollution. Certain gases and chemicals absorb very specific wavelengths of UV light. By shining 330nm light through an air sample and using this filter to measure exactly how much light makes it to the other side, scientists can calculate how much of a specific gas is in the air.

    Recommended light source:

    • Deuterium Lamp light source: Produces a highly stable and smooth continuous glow of UV light, which is absolutely critical for taking highly accurate chemical measurements.
    • Compact UV-LED light source: Small, rugged, and uses very little battery power, making it the perfect choice for remote, outdoor air-monitoring stations.

Fequently Asked Questions

Will this filter work at an angle?

This filter is optimized for near normal incidence. At larger angles, the center wavelength may shift, which can affect performance. If your system operates at an angle, we recommend validating with a sample.

Can I stack this filter with other filters?

Yes, filters can be stacked to achieve additional blocking or spectral shaping. However, stacking may introduce reflection losses and should be tested in your system.

Can I request a custom wavelength or size?

Yes, we support custom center wavelength (CWL), bandwidth (FWHM), dimensions, and mounting options. Contact us with your requirements for recommendations.

What is the difference between mounted and unmounted filters?

Unmounted filters are bare optics suitable if you already have a holder. Mounted filters come in an anodized aluminum ring (with or without threading) for easier system integration.

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • SM05(0.535″-40TPI)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM05/SM05

  • SM1(1.035″-40TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM1/SM1

  • C-Mount(1″-32TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    Internal/External Thread:

    C-Mount/C-Mount

Not sure if this filter fits your system?

We can help you choose the right filter based on your wavelength, light source, and setup.
