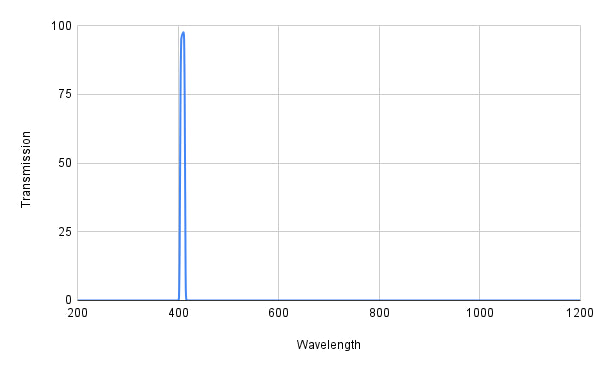

• Spectral transmission curve with a peak at around 400 nm on a graph.

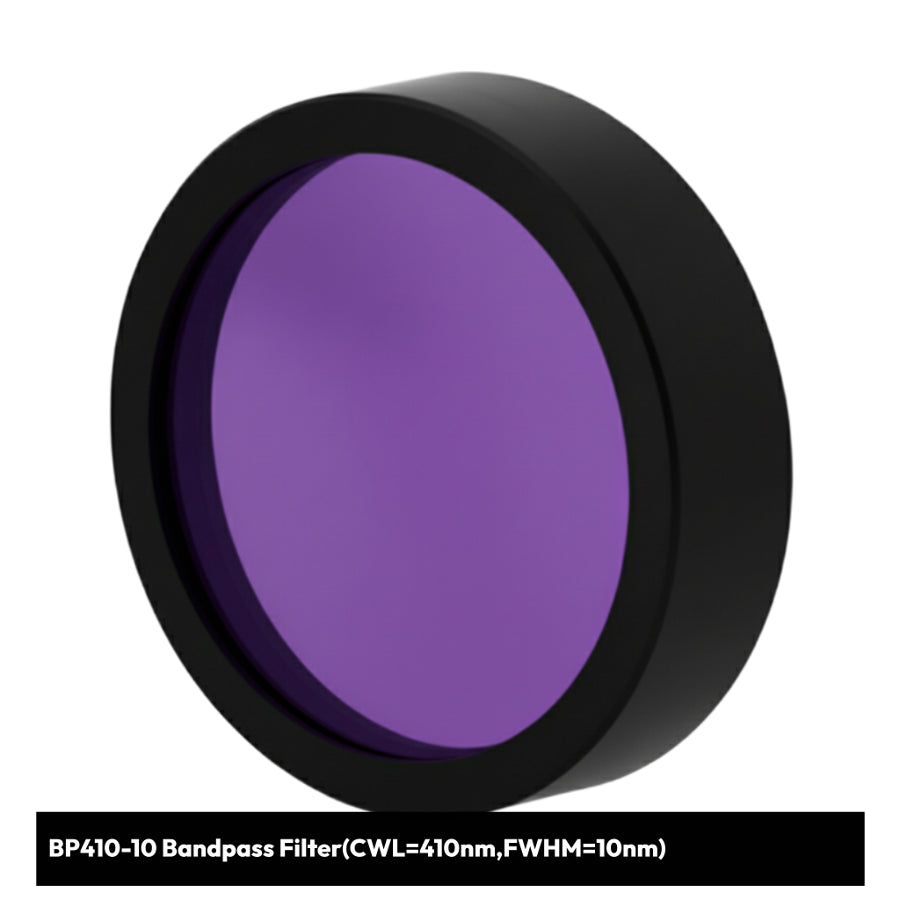

  • Purple bandpass filter with black frame on a white background
1 2

BP410-10 Bandpass Filter(CWL=410nm,FWHM=10nm)

BP410-10 Bandpass Filter(CWL=410nm,FWHM=10nm)

PartNumber:SO3010122

$60.00 USD
$60.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

In Stock.

Ships within 5 working days of order.

Holiday notice: Orders placed Feb 10–25 may ship later than usual. Free shipping applies during this period.
  • Wavelength: Center wavelength at 410nm for precise spectral targeting in the violet region
  • Spectral Features: Full Width Half Maximum (FWHM) of 10nm providing ultra-narrow bandwidth for high-resolution spectroscopy and precision applications
  • Optical Density: OD5 blocking for exceptional out-of-band rejection and superior signal isolation
  • Filter Dimension Availability: Multiple sizes available to fit standard optical systems and custom configurations

Request Raw Data

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

Shipment & Delivery

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

Return & Refund

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

Custom Sizing

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

Payment Terms

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

View full details
  • BP410-10 Bandpass Filter - UV/Violet Fluorescence Imaging

    BP410-10 Bandpass Filter - UV/Violet Fluorescence Imaging

    UV/Violet Fluorescence Imaging

    Many materials (like glues, optical brighteners in paper/fabric, or security inks) fluoresce when hit with UV light. This filter can be placed over a camera to block the excitation UV light (if checking emission) or, more likely with this specific wavelength, to clean up the excitation source or image features that specifically reflect 410nm light.

    Recommended Light Sources

    • High-Power Violet LED (405 nm – 410 nm): LEDs provide the stable, high-intensity area illumination required to excite fluorescence in bulk materials like glues or paper; the BP410-10 filter is essential to "clean up" the LED's naturally broad spectral tail, ensuring that only pure excitation light hits the sample so that no stray source light leaks into the camera to wash out the faint fluorescence signal.
  • BP410-10 Bandpass Filter - 3D Printing (SLA/DLP)

    BP410-10 Bandpass Filter - 3D Printing (SLA/DLP)

    3D Printing (SLA/DLP)

    • Some resin curing systems utilize 405nm lasers or LEDs. A 410-10 filter can be used in monitoring systems to block ambient light while strictly monitoring the curing laser intensity.

    Recommended Light Sources

    • 405 nm Laser Diode / UV LED: These sources provide the specific wavelength required to cure the resin; pairing them with a BP410-10 filter allows the monitoring sensor to optically isolate the curing signal from broad-spectrum ambient room lighting, ensuring that the sensor measures only the active curing energy for precise process control.

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For standard mounting (mounted,non-thread):

  • 3.5mm (by default)
  • 6mm (by request)

For unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount:

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • SM05(0.535″-40TPI)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM05/SM05

  • SM1(1.035″-40TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM1/SM1

  • C-Mount(1″-32TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    Internal/External Thread:

    C-Mount/C-Mount
