• Graph showing transmission versus wavelength with a peak at around 400 nm and another peak at around 1000 nm.

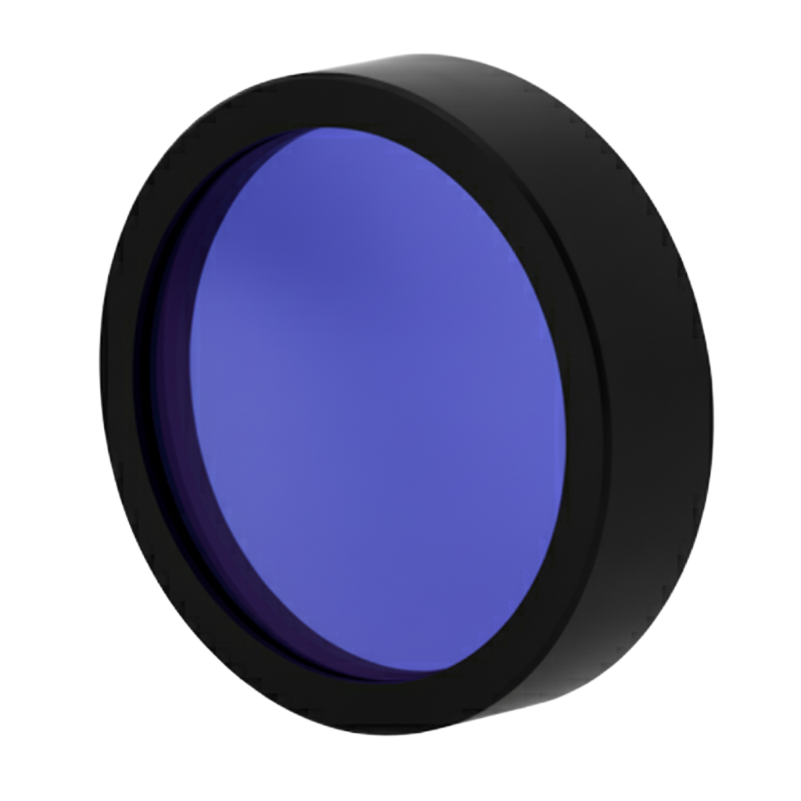

  • Round blue filter with black rim on a white background
1 2

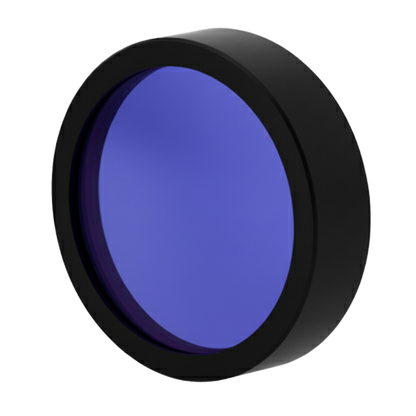

BP420-40 Bandpass Filter(CWL=420nm,FWHM=40nm)

BP420-40 Bandpass Filter(CWL=420nm,FWHM=40nm)

PN:SO3014337

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

In Stock.

Ships within 5 working days of order.
  • Wavelength: Center wavelength 420nm with 40nm FWHM for broadband violet-blue visible spectrum (400-440nm)
  • Spectral Features: High transmission with broadband coverage optimized for DAPI fluorescence, violet-blue imaging, and UV-visible spectroscopy
  • Optical Density: OD>6 blocking ensures exceptional out-of-band rejection and signal isolation for precision applications
  • Filter Dimension Availability: Available in multiple unmounted and mounted configurations for flexible integration

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. For custom cut size, contact shop@syronoptics.com when ordering.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details
  • BP420-20 Bandpass Filter - Hemoglobin & Porphyrin Analysis (Biomedical)

    BP420-20 Bandpass Filter - Hemoglobin & Porphyrin Analysis (Biomedical)

    Hemoglobin & Porphyrin Analysis (Biomedical)

    • The Soret Band (a strong absorption peak of hemoglobin and porphyrins) is located exactly around 415nm–420nm. This filter is ideal for analyzing blood samples, detecting hemolysis, or imaging vasculature by maximizing contrast where blood absorbs light.

    Recommended Light Sources

    • Broadband Xenon or Mercury Arc Lamp: The filter selects the precise 420nm band from the white light to target the Soret absorption peak.

  • BP420-20 Bandpass Filter - Fluorescence Imaging (Emission Filter)

    BP420-20 Bandpass Filter - Fluorescence Imaging (Emission Filter)

    Fluorescence Imaging (Emission Filter)

    • It is often used to detect the blue fluorescence emission from samples excited by deep UV light (e.g., 365nm or 385nm).
    • Specific Dyes/Stains: Used for detecting DAPI (emission peak ~460nm, but the 420nm tail can be relevant in specific setups), BFP (Blue Fluorescent Protein), or Cascade Blue.

    Recommended Light Sources

    • High-Power LED (415nm or 420nm): Cleans up the LED output, ensuring no green/red light hits the sample.
    • UV LED (365nm or 385nm): The light source excites the sample; the filter is placed in front of the camera to block the UV source and pass only the blue fluorescence.

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For standard mounting (mounted,non-thread):

  • 3.5mm (by default)
  • 6mm (by request)

For unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount:

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • SM05(0.535″-40TPI)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM05/SM05

  • SM1(1.035″-40TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM1/SM1

  • C-Mount(1″-32TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    Internal/External Thread:

    C-Mount/C-Mount

  • M25.5x0.5mm(mounted)

    Clear Aperture:

    dia20.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M25.5x0.5mm/M25.5x0.5mm

  • M27x0.5mm(mounted)

    Clear Aperture:

    dia22mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M27x0.5mm/M27x0.5mm

  • M30.5x0.5mm(mounted)

    Clear Aperture:

    dia25.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M30.5x0.5mm/M30.5x0.5mm

  • M34x0.5mm(mounted)

    Clear Aperture:

    dia29mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M34x0.5mm/M34x0.5mm

  • M35.5x0.5mm(mounted)

    Clear Aperture:

    dia30.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M35.5x0.5mm/M35.5x0.5mm

  • M37x0.5mm(mounted)

    Clear Aperture:

    dia32mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M37x0.5mm/M37x0.5mm

  • M52x0.75mm(mounted)

    Clear Aperture:

    dia47mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M52x0.75mm/M52x0.75mm

  • M55x0.75mm(mounted)

    Clear Aperture:

    dia50mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M55x0.75mm/M55x0.75mm

  • dia27mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia34mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a
