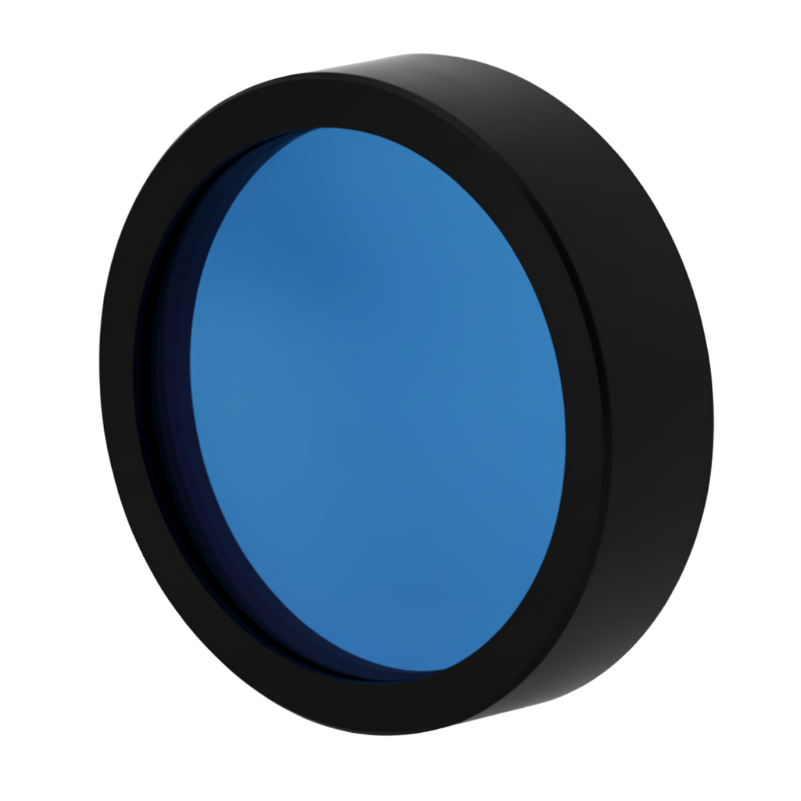

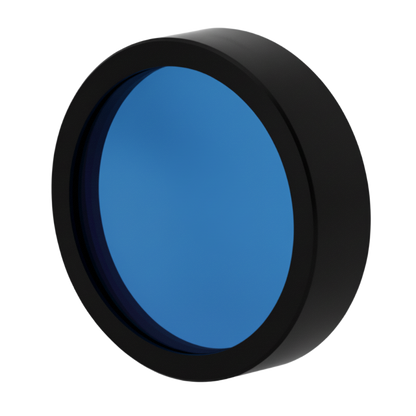

BP455-110 Bandpass Filter(CWL=455nm,FWHM=110nm)

BP455-110 Bandpass Filter(CWL=455nm,FWHM=110nm)

PN:SO3013262

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Ultra-Wide Blue Spectrum Filtering at 455nm

The BP455-110 Bandpass Filter delivers exceptional light collection with a center wavelength (CWL) of 455nm and an ultra-wide full width at half maximum (FWHM) of 110nm. This broad-bandwidth optical component is designed for applications requiring maximum light throughput in the blue spectrum region, making it ideal for high-sensitivity and multi-wavelength blue light applications.

Technical Specifications

  • Center Wavelength: 455nm
  • Ultra-Wide Bandwidth (FWHM): 110nm
  • Transmission Range: 400nm - 510nm
  • Maximum light collection across the blue spectrum
  • Effective out-of-band blocking for clean spectral isolation

Broad Blue Applications

  • Wide-field blue fluorescence microscopy
  • Multi-blue fluorophore imaging
  • Blue LED array characterization
  • Broadband blue light analysis
  • General-purpose blue spectrum filtering
  • Educational and demonstration applications

Maximum Blue Light Collection

The exceptionally wide 110nm bandwidth ensures maximum signal collection across the entire blue spectrum while maintaining effective spectral selectivity. This makes it perfect for applications where maximum blue light gathering is essential, such as low-light blue fluorescence imaging, multi-wavelength blue detection systems, or when working with broadband blue sources that require spectral conditioning without significant signal loss.

Ultra-Wide Blue Performance

Whether you're conducting wide-field blue microscopy, need maximum sensitivity for challenging blue imaging conditions, or require comprehensive blue spectrum coverage, this filter provides unmatched light-gathering capability in the blue region. The ultra-wide passband accommodates multiple blue fluorophores and various blue light sources while delivering the consistent optical quality expected from professional components.

The ultimate solution for researchers and engineers who need maximum blue light collection with comprehensive spectral coverage in the blue region.

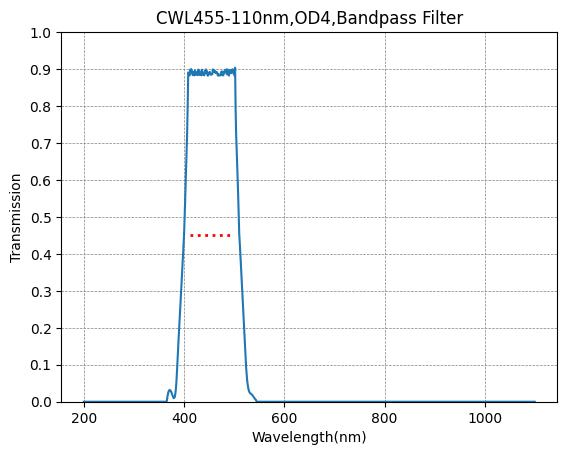

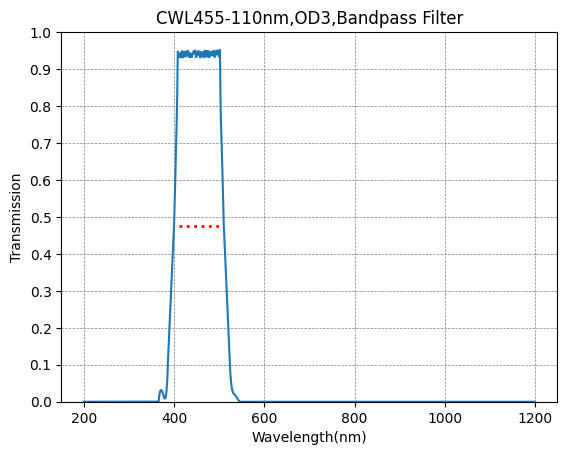

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
