• Spectral transmission graph with a peak at around 400 nm on a white background

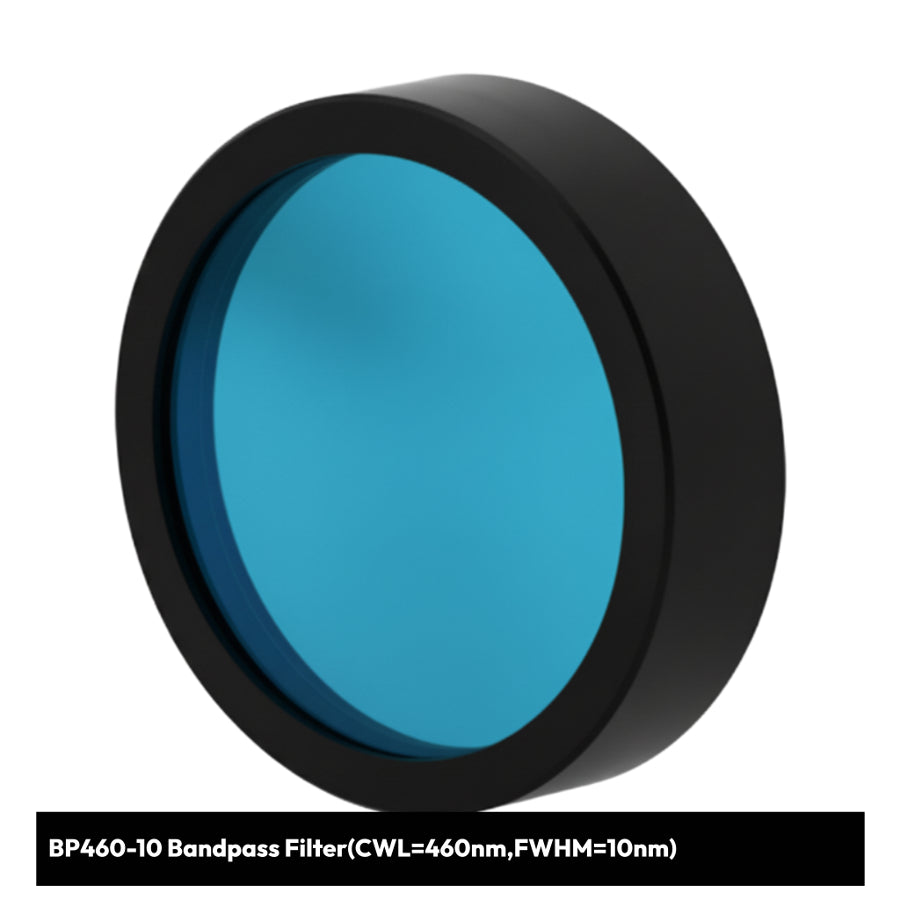

  • Blue bandpass filter with black rim on a white background
1 2

BP460-10 Bandpass Filter(CWL=460nm,FWHM=10nm)

BP460-10 Bandpass Filter(CWL=460nm,FWHM=10nm)

PartNumber:SO3010166

$60.00 USD
$60.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

In Stock.

Ships within 5 working days of order.

Holiday notice: Orders placed Feb 10–25 may ship later than usual. Free shipping applies during this period.
  • Wavelength: Center wavelength at 460nm for precise spectral targeting in the blue region
  • Spectral Features: Full Width Half Maximum (FWHM) of 10nm providing ultra-narrow bandwidth for high-resolution spectroscopy and precision applications
  • Optical Density: OD5 blocking for exceptional out-of-band rejection and superior signal isolation
  • Filter Dimension Availability: Multiple sizes available to fit standard optical systems and custom configurations

Request Raw Data

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

Shipment & Delivery

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

Return & Refund

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

Custom Sizing

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

Payment Terms

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

View full details
  • BP460-10 Bandpass Filter - Fluorescence Excitation (Life Sciences)

    BP460-10 Bandpass Filter - Fluorescence Excitation (Life Sciences)

    Fluorescence Excitation (Life Sciences)

    • This is the primary application for such a filter. It is used to "clean up" a light source to excite fluorophores that absorb blue light.
    • Target Fluorophores: It is ideal for exciting Green Fluorescent Proteins (GFP), FITC (Fluorescein), Auramine O, and Acridine Orange. While many of these peak around 480 nm, 460 nm is a common "blue excitation" wavelength used to energize them without overlapping with their emission signal.
    • Note: It is likely too narrow to be an emission filter (which usually needs to capture more light), but it is perfect for the excitation side to ensure no stray light hits the detector.

    Recommended Light Sources

    • Blue LED (460 nm / 465 nm "Royal Blue")
    • Blue Laser Diode (450 nm - 460 nm)
    • Xenon or Mercury Arc Lamps
    • Halogen / Tungsten Lamp
  • BP460-10 Bandpass Filter - Laser Line Cleanup

    BP460-10 Bandpass Filter - Laser Line Cleanup

    Laser Line Cleanup

    • Used to filter 460 nm Blue Lasers. Diode lasers often emit "noise" (Amplified Spontaneous Emission) at nearby wavelengths. This filter cleans the output so only the pure 460 nm laser line passes through, which is critical for Raman spectroscopy or fluorescence measurements.

    Recommended Light Sources

    • Blue Diode Laser (InGaN)

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For standard mounting (mounted,non-thread):

  • 3.5mm (by default)
  • 6mm (by request)

For unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount:

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • SM05(0.535″-40TPI)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM05/SM05

  • SM1(1.035″-40TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM1/SM1

  • C-Mount(1″-32TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    Internal/External Thread:

    C-Mount/C-Mount
