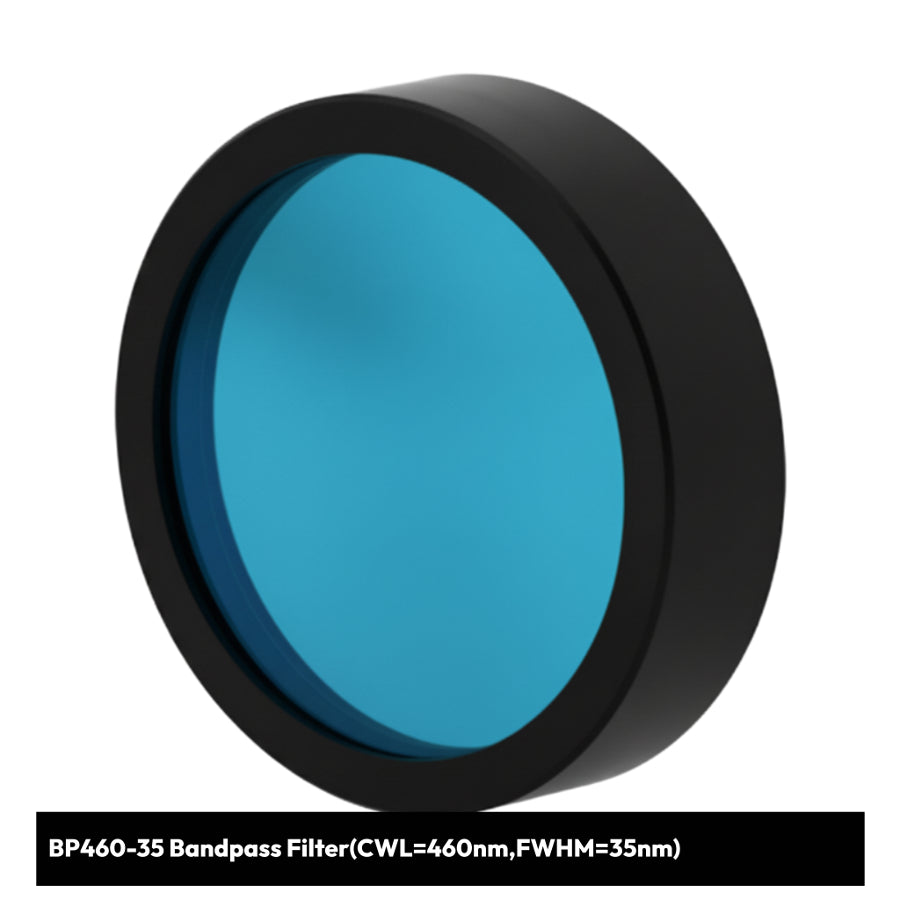

BP460-35 Bandpass Filter(CWL=460nm,FWHM=35nm)
BP460-35 Bandpass Filter(CWL=460nm,FWHM=35nm)
PartNumber:SO3010699
In Stock.
Ships within 5 working days of order.
Couldn't load pickup availability
- Wavelength: 460nm center wavelength (CWL) for blue fluorescence imaging and DAPI emission
- Spectral Features: 35nm FWHM bandwidth with high transmission and controlled edge slopes
- Optical Density: OD5 blocking for superior out-of-band rejection
- Filter Dimension Availability: Multiple mounting diameters available to fit standard optical systems
Request Raw Data
Request Raw Data
You can request the raw transmission data from us.
Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.
Shipment & Delivery
Shipment & Delivery
- Stocked products ship within 5 business days after order confirmation.
- Custom-made products typically ship within 4–8 weeks.
- Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
- Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
- Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
- General international parcel shipping cost: USD 35 (for reference).
Return & Refund
Return & Refund
1. Eligible Products
Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.
Custom-made or non-stock items are not eligible for no-reason returns.
2. No-Reason Return (Buyer’s Remorse)
If you wish to return an item for reasons other than product defect or seller error:
- Please email shop@syronoptics.com to request a return authorization and return address.
- Buyer is responsible for all return shipping costs.
- Items must be unused, in original condition, and with original packaging.
- Refund will be issued after inspection of the returned item.
3. Seller’s Fault (Defective / Wrong / Damaged Item)
If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):
Please provide clear evidence (photos or videos) showing the issue.
We will evaluate the case and either:
- Provide a replacement, or
Issue a refund (with or without requiring the item to be returned). - Return shipping cost will be covered by the seller in confirmed seller-fault cases.
4. Important Notes
- Returned items are subject to inspection before refund approval.
- Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
- Unauthorized returns will not be accepted.
Custom Sizing
Custom Sizing
Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.
Pricing is not significantly lower for small-size orders in low quantities due to operational costs.
Payment Terms
Payment Terms
Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.
If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.
If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.
All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

| Part Number | |
|---|---|
PN |
SO3010699
|

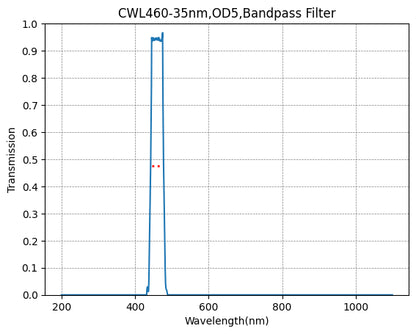

| Optical Specification | |
Center Wavelength |
460nm
|
FWHM |
35nm
|
Optical Density |
OD5@200-1100nm
|
-

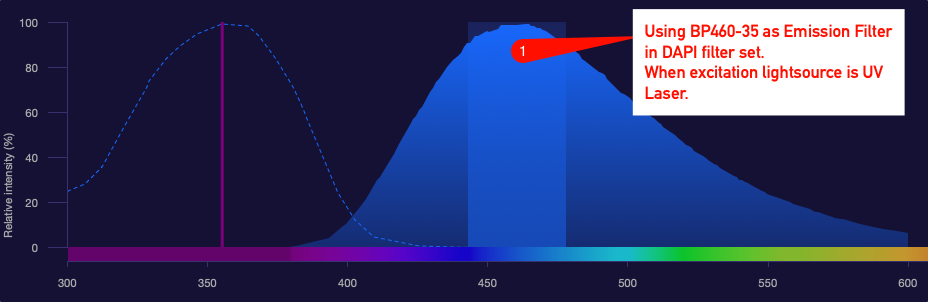

BP460-35 Bandpass Filter - Fluorescence Microscopy (DAPI Emission)
Fluorescence Microscopy (DAPI Emission)
This filter is perfectly suited as an Emission Filter for the fluorophore DAPI, which is widely used to stain DNA in cells.
- How it works: DAPI is excited by UV light and emits a blue fluorescence centered around 461 nm. This filter allows the faint blue signal to pass to the camera while completely blocking the intense UV excitation light (thanks to the OD5 blocking).
Recommended Light Sources
- UV LED (365 nm)
- Mercury Arc Lamp
-
BP460-35 Bandpass Filter - Outdoor/High-Ambient Imaging
Machine Vision & Industrial Inspection - Outdoor/High-Ambient Imaging
The OD5 blocking ensures that sunlight or overhead factory lighting (which contains broad spectrum light) does not wash out the image; only the specific blue LED inspection light is seen.
Recommended Light Sources
- Blue LED (460 nm - 470 nm)
Fequently Asked Questions
Different Types of Filter Mountings
Unmounted:
- a bare glass optical filter
Mounted:
- Smooth Mount for protection of the optics. No thread is there on the mount.
Metric Mount:
- Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters
Imperial Mount:
- Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)
C-Mount:
- Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.
What are the Thickness of the Optical Filters?
For Unmounted Optics:
- 0.5mm
- 1.1mm
- 2.0mm
*Most of our optics are coming with 1.1mm and 2.0mm
With Standard Mounting (Mounted, No Thread):
- 3.5mm (Default)
- 6mm (Upon Request)
Thread Mounted:
- 6mm - 8mm
-
dia12.5mm(unmounted)
Clear Aperture:
>90%
Mounting Thickness:
n.a
Internal/External Thread:
n.a/n.a
-
dia12.5mm(mounted)
Clear Aperture:
dia9mm
Mounting Thickness:
3.5mm
Internal/External Thread:
n.a/n.a
-
dia25mm(mounted)
Clear Aperture:
dia21mm
Mounting Thickness:
3.5mm
Internal/External Thread:
n.a/n.a
-
dia25mm(unmounted)
Clear Aperture:
>90%
Mounting Thickness:
n.a
Internal/External Thread:
n.a/n.a
-
SM05(0.535″-40TPI)
Clear Aperture:
dia9mm
Mounting Thickness:
7.62mm
Internal/External Thread:
SM05/SM05
-
SM1(1.035″-40TPI)
Clear Aperture:
dia21mm
Mounting Thickness:
7.62mm
Internal/External Thread:
SM1/SM1
-
C-Mount(1″-32TPI)
Clear Aperture:
dia21mm
Mounting Thickness:
Internal/External Thread:
C-Mount/C-Mount
-
M25.5x0.5mm(mounted)
Clear Aperture:
dia20.5mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M25.5x0.5mm/M25.5x0.5mm
-
M27x0.5mm(mounted)
Clear Aperture:
dia22mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M27x0.5mm/M27x0.5mm
-
M30.5x0.5mm(mounted)
Clear Aperture:
dia25.5mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M30.5x0.5mm/M30.5x0.5mm
-
M34x0.5mm(mounted)
Clear Aperture:
dia29mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M34x0.5mm/M34x0.5mm
-
M35.5x0.5mm(mounted)
Clear Aperture:
dia30.5mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M35.5x0.5mm/M35.5x0.5mm
-
M37x0.5mm(mounted)
Clear Aperture:
dia32mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M37x0.5mm/M37x0.5mm
-
M52x0.75mm(mounted)
Clear Aperture:
dia47mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M52x0.75mm/M52x0.75mm
-
M55x0.75mm(mounted)
Clear Aperture:
dia50mm
Mounting Thickness:
6.5mm
Internal/External Thread:
M55x0.75mm/M55x0.75mm
-
dia27mm(unmounted)
Clear Aperture:
>90%
Mounting Thickness:
n.a
Internal/External Thread:
n.a/n.a
-
dia34mm(unmounted)
Clear Aperture:
>90%
Mounting Thickness:
n.a
Internal/External Thread:
n.a/n.a
