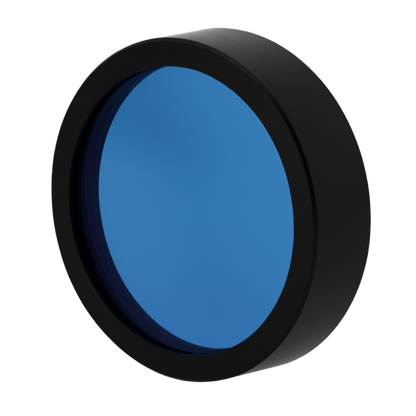

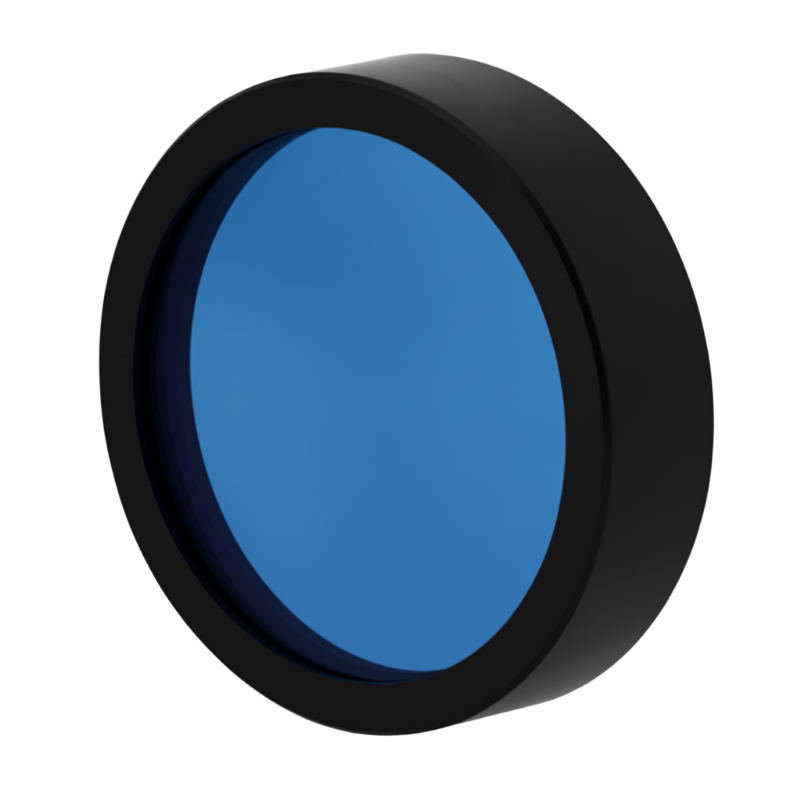

BP460-50 Bandpass Filter(CWL=460nm,FWHM=50nm)

BP460-50 Bandpass Filter(CWL=460nm,FWHM=50nm)

PN:SO3014343

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

In Stock.

Ships within 5 working days of order.
  • Wavelength: Center wavelength 460nm with 50nm FWHM for broadband blue visible spectrum (435-485nm)
  • Spectral Features: High transmission with broadband coverage optimized for DAPI fluorescence, blue imaging, and multi-wavelength applications
  • Optical Density: OD>6 blocking ensures exceptional out-of-band rejection and signal isolation for precision applications
  • Filter Dimension Availability: Available in multiple unmounted and mounted configurations for flexible integration

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. For custom cut size, contact shop@syronoptics.com when ordering.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

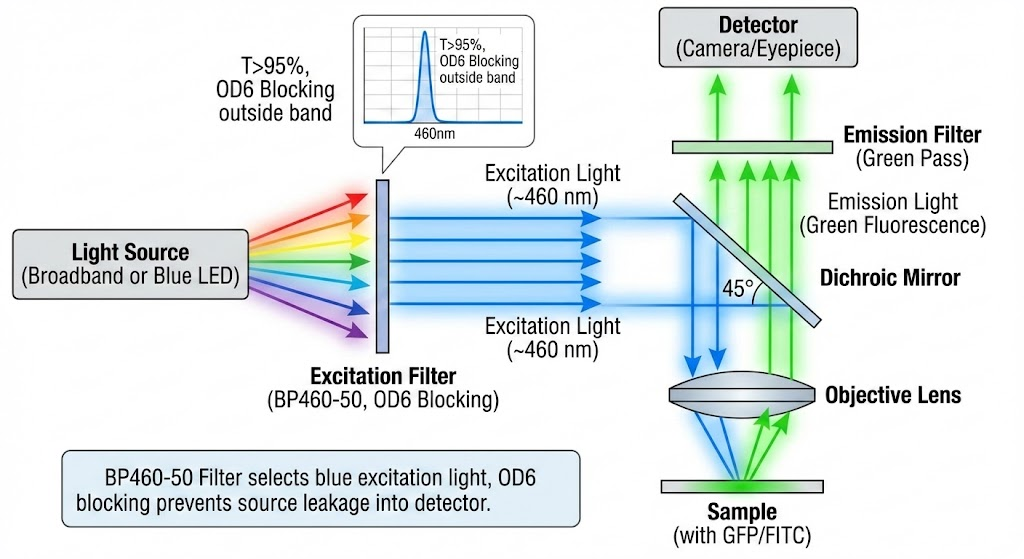

  • BP460-50 Bandpass Filter - Fluorescence Microscopy

    BP460-50 Bandpass Filter - Fluorescence Microscopy

    Fluorescence Microscopy (Excitation Filter):

    • This is the most common application. A 460 nm filter with a 50 nm bandwidth is the standard excitation filter for Green Fluorescent Protein (GFP), FITC, and EGFP.
    • It passes blue light to excite the sample, causing it to emit green fluorescence. The OD6 blocking is crucial here to prevent the powerful excitation light from leaking into the detector.

    Recommended Light Sources

    • High-Power Blue LEDs (450 nm - 465 nm)
    • Broadband Arc Lamps (Xenon or Mercury)
    • Blue Diode Lasers (445 nm / 450 nm)

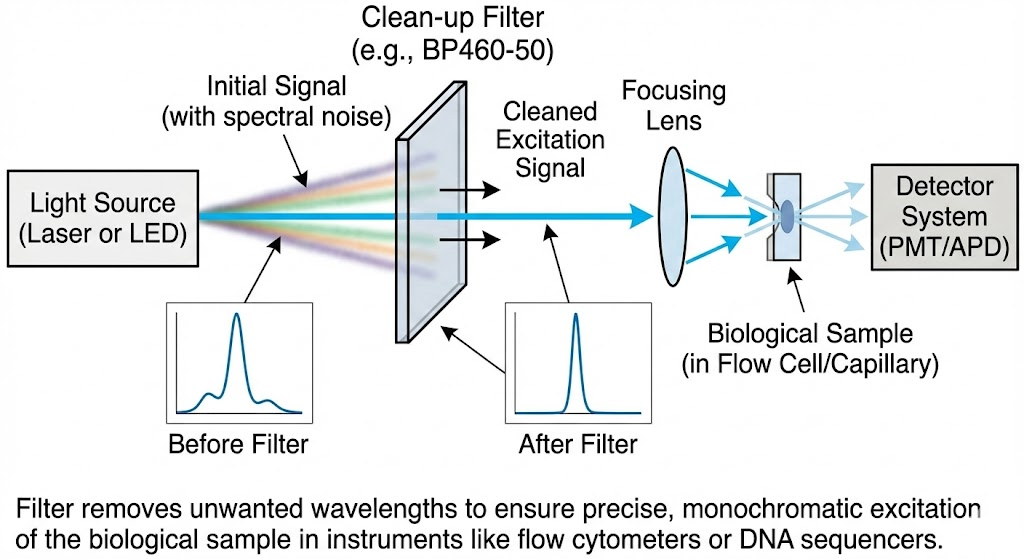

  • BP460-50 Bandpass Filter - Biomedical Instrumentation

    BP460-50 Bandpass Filter - Biomedical Instrumentation

    Biomedical Instrumentation

    Used in flow cytometers or DNA sequencers to clean up laser lines or LED signals before they hit the biological sample.

    Recommended Light Sources

    • High-Power Blue LEDs (Center Wavelength: 450 nm – 460 nm)
    • Blue Diode Lasers (Wavelength: 445 nm or 450 nm)

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For standard mounting (mounted,non-thread):

  • 3.5mm (by default)
  • 6mm (by request)

For unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount:

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • SM05(0.535″-40TPI)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM05/SM05

  • SM1(1.035″-40TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM1/SM1

  • C-Mount(1″-32TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    Internal/External Thread:

    C-Mount/C-Mount

  • M25.5x0.5mm(mounted)

    Clear Aperture:

    dia20.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M25.5x0.5mm/M25.5x0.5mm

  • M27x0.5mm(mounted)

    Clear Aperture:

    dia22mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M27x0.5mm/M27x0.5mm

  • M30.5x0.5mm(mounted)

    Clear Aperture:

    dia25.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M30.5x0.5mm/M30.5x0.5mm

  • M34x0.5mm(mounted)

    Clear Aperture:

    dia29mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M34x0.5mm/M34x0.5mm

  • M35.5x0.5mm(mounted)

    Clear Aperture:

    dia30.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M35.5x0.5mm/M35.5x0.5mm

  • M37x0.5mm(mounted)

    Clear Aperture:

    dia32mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M37x0.5mm/M37x0.5mm

  • M52x0.75mm(mounted)

    Clear Aperture:

    dia47mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M52x0.75mm/M52x0.75mm

  • M55x0.75mm(mounted)

    Clear Aperture:

    dia50mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M55x0.75mm/M55x0.75mm

  • dia27mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia34mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a
