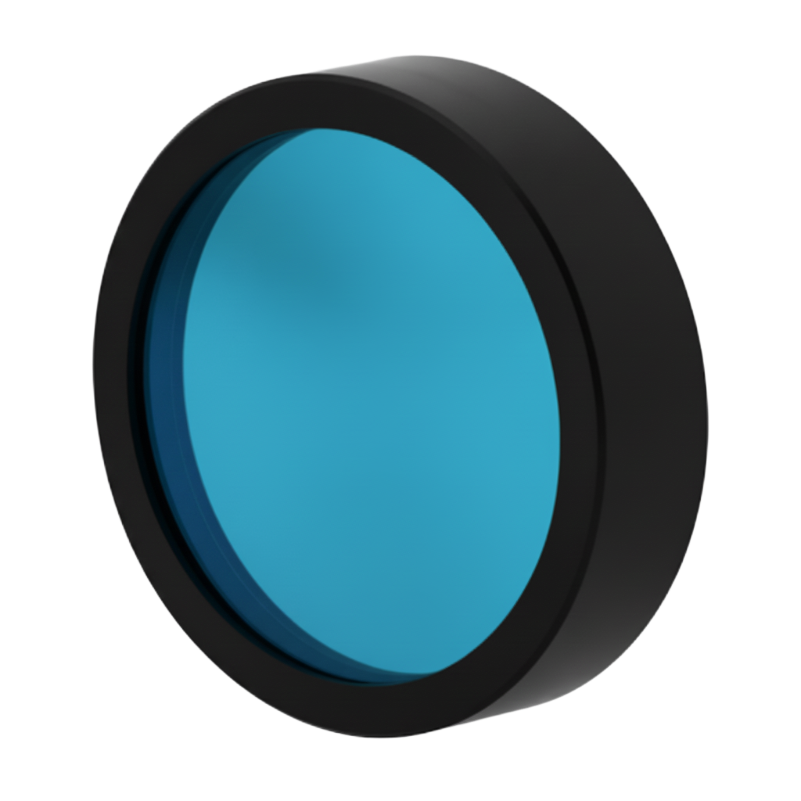

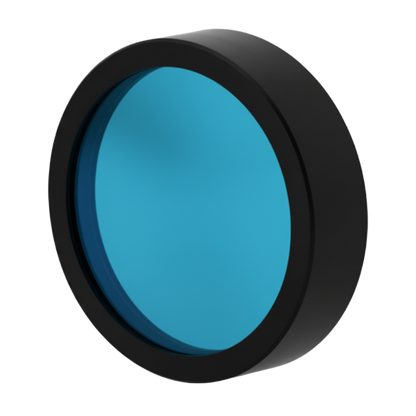

BP470-10 Bandpass Filter(CWL=470nm,FWHM=10nm)

BP470-10 Bandpass Filter(CWL=470nm,FWHM=10nm)

PN:SO3010178

$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Ultra-Precision Bandpass Filter - BP470-10

Experience unmatched spectral precision with our BP470-10 bandpass filter, featuring an ultra-narrow 10nm bandwidth at 470nm wavelength for the most demanding optical applications.

Key Specifications:

  • Center Wavelength (CWL): 470nm - Precise blue wavelength transmission
  • Full Width Half Maximum (FWHM): 10nm - Ultra-narrow bandwidth for maximum spectral selectivity
  • Exceptional Transmission: Advanced multi-layer coating for superior light throughput
  • Ultra-Steep Edges: Sharp spectral cutoff for outstanding out-of-band rejection
  • Minimal Ripple: Extremely smooth passband response
  • High Optical Density (OD3+): Superior blocking performance outside the passband

Premium Applications:

  • PCB inspection systems - Perfect for ultra-precise defect detection and quality control
  • Laser line filtering for 470nm laser cleanup and purification
  • Ultra-high resolution fluorescence microscopy
  • Precision monochromator systems and spectral analysis
  • Advanced flow cytometry with narrow fluorophore detection
  • Raman spectroscopy with critical wavelength discrimination
  • Scientific imaging requiring extreme spectral purity
  • Quantum optics and photonics research

Technical Excellence:

The ultra-narrow 10nm bandwidth delivers unparalleled spectral purity, making this filter the gold standard for applications where even minor spectral contamination cannot be tolerated. The exceptionally steep filter edges provide maximum discrimination between closely spaced spectral features.

Professional Performance:

Engineered for the most critical optical systems, this filter maintains consistent performance across temperature variations and provides long-term stability in demanding research environments. The OD3+ blocking ensures exceptional out-of-band rejection.

Why Choose SyronOptics BP470-10?

Our ultra-precision manufacturing process ensures each filter meets the strictest tolerances. Comprehensive optical testing guarantees performance that exceeds industry standards for the most sophisticated optical instrumentation.

Laboratory-grade optical component trusted by leading research institutions and high-tech manufacturers worldwide for applications where precision is non-negotiable.

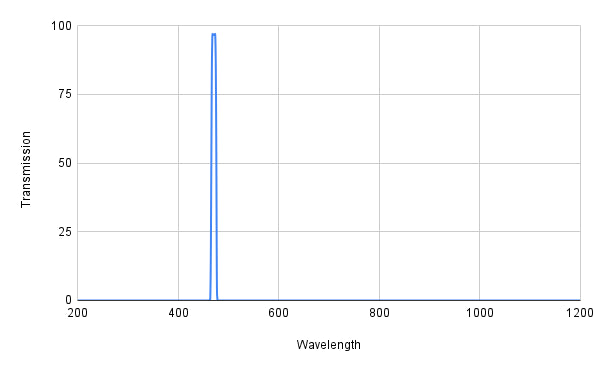

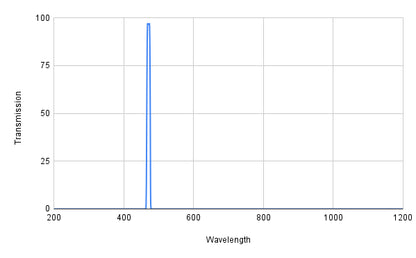

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
