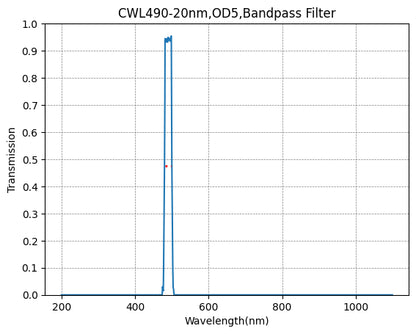

• A plot showing the transmission of a bandpass filter with a central wavelength of 490nm and a bandwidth of 20nm, on a graph with wavelength on the x-axis and transmission on the y-axis.
1 2

BP490-20 Bandpass Filter(CWL=490nm,FWHM=20nm)

BP490-20 Bandpass Filter(CWL=490nm,FWHM=20nm)

PN:SO3010203

$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

High-Precision Blue-Cyan Bandpass Filter - BP490-20

Achieve exceptional blue-cyan light transmission with our BP490-20 Bandpass Filter, precisely engineered for 490nm applications requiring ultra-high spectral selectivity, particularly for argon laser applications.

Technical Specifications:

  • Center Wavelength (CWL): 490nm - Optimized for blue-cyan light applications
  • Full Width Half Maximum (FWHM): 20nm bandwidth for ultra-high selectivity
  • High Transmission Efficiency: Advanced optical coatings for maximum light throughput
  • Sharp Spectral Response: Exceptional blocking of unwanted wavelengths for precise measurements
  • Professional Grade: Manufactured to the highest optical standards

Key Applications:

  • Argon Laser Applications - Ideal for 488nm argon laser line filtering
  • High-precision fluorescence microscopy and biological imaging
  • Machine vision and color inspection systems
  • LED and display technology testing
  • Scientific research instrumentation requiring high selectivity
  • Photometry and colorimetry applications
  • Environmental monitoring and sensing

Performance Advantages:

The BP490-20 delivers outstanding performance in the blue-cyan visible spectrum with ultra-high spectral precision. The narrow 20nm bandwidth provides exceptional selectivity, making it ideal for demanding applications requiring precise wavelength discrimination at 490nm, particularly for argon laser systems.

This wavelength is particularly valuable for argon laser applications, fluorescence microscopy, machine vision systems, and various optical measurements where the blue-cyan region offers unique spectral characteristics and the narrow bandwidth ensures maximum measurement accuracy.

Trust SyronOptics for ultra-precision optical components that deliver reliable, high-selectivity performance in demanding blue-cyan and argon laser applications.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
