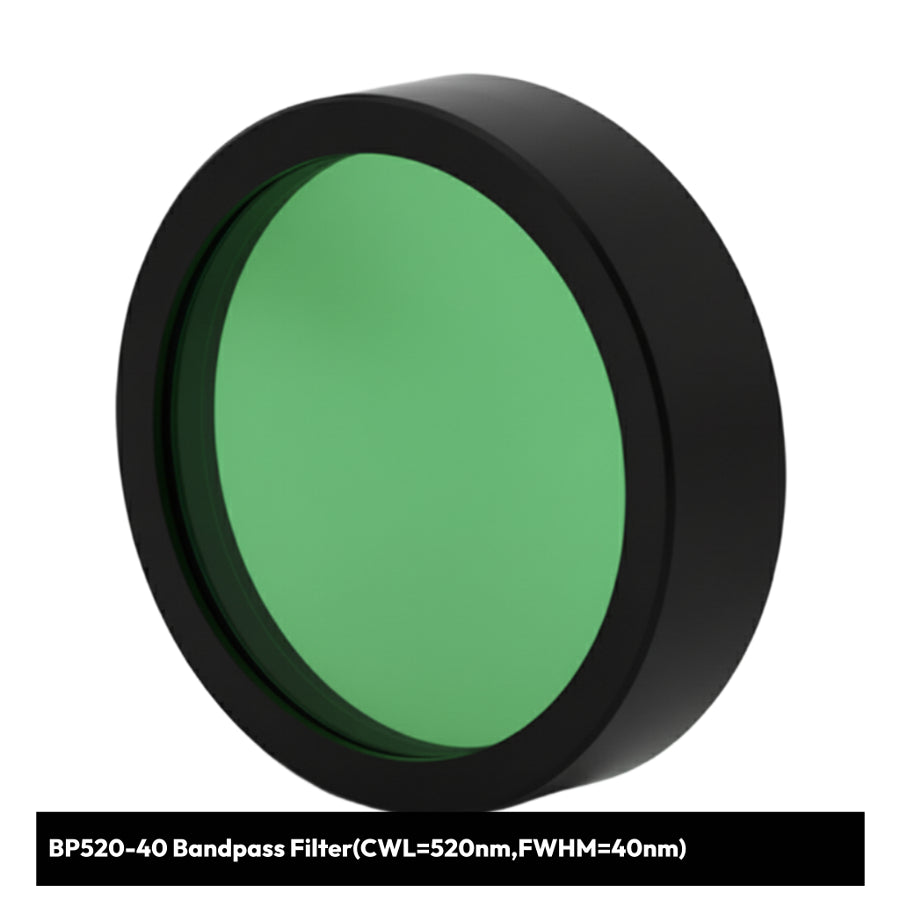

BP520-40 Bandpass Filter(CWL=520nm,FWHM=40nm)

BP520-40 Bandpass Filter(CWL=520nm,FWHM=40nm)

PN:SO3010234

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Balanced Cyan-Green Filtering for PCB Inspection

The BP520-40 Bandpass Filter delivers exceptional performance in the cyan-green visible spectrum with a center wavelength of 520nm and FWHM of 40nm. Engineered for PCB inspection applications requiring optimal balance between spectral selectivity and light collection efficiency in the cyan-green region.

Technical Excellence

  • Center Wavelength: 520nm (cyan-green visible spectrum)
  • Balanced Bandwidth: 40nm FWHM for optimal signal collection
  • High Transmission: Superior light throughput in the cyan-green region
  • Sharp Cut-off: Excellent spectral isolation for enhanced contrast
  • PCB Inspection Grade: Built for demanding electronic inspection environments

PCB Inspection Applications

Perfect for PCB inspection systems, solder joint analysis, component verification, and automated optical inspection (AOI). Ideal for cyan-green LED illumination systems, surface mount technology inspection, trace analysis, and quality control where precise wavelength control enhances defect detection and contrast.

Optimal Performance

The 520nm wavelength provides excellent contrast for PCB inspection applications while maintaining compatibility with standard industrial cameras. The 40nm bandwidth ensures optimal signal collection for both narrow-line and broadband cyan-green sources in demanding manufacturing environments.

Industrial Quality

Manufactured with precision optical coatings designed for consistent performance in high-throughput PCB inspection environments. Each filter undergoes rigorous quality testing to ensure reliable performance in automated inspection systems requiring precise cyan-green wavelength control.

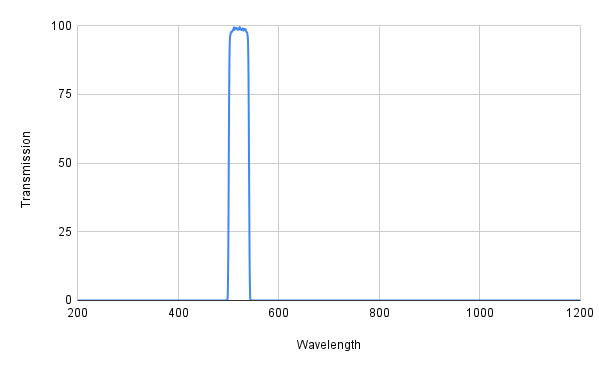

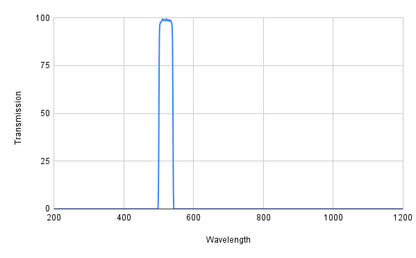

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
