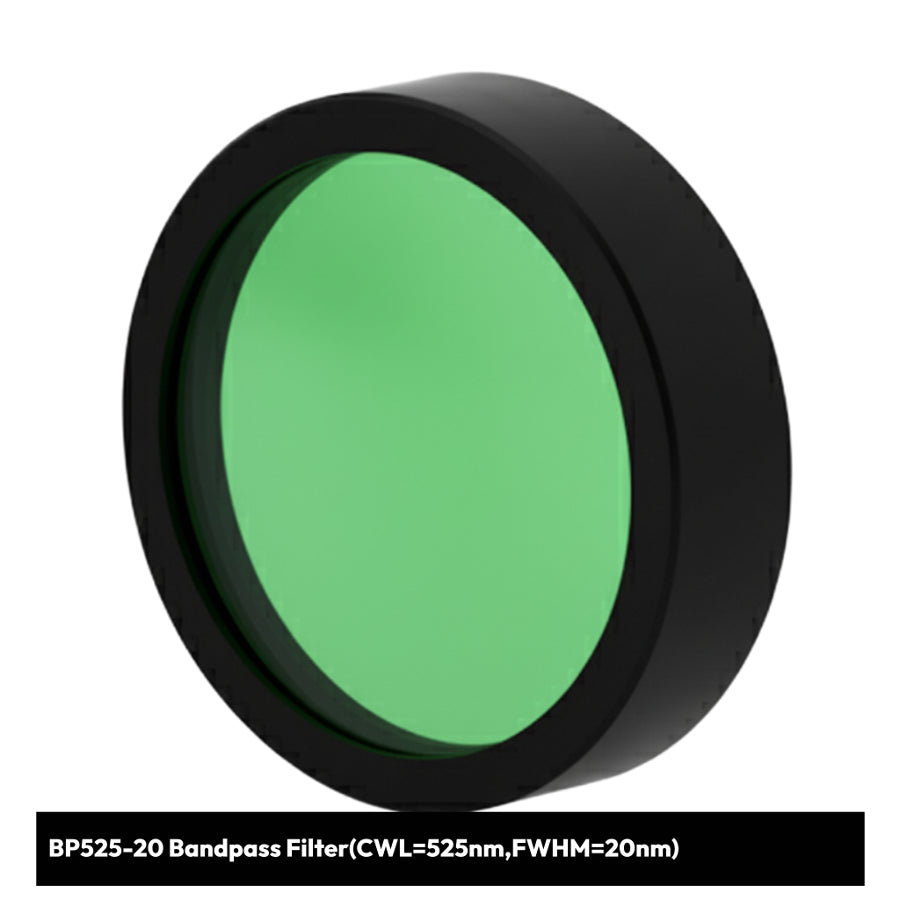

BP525-20 Bandpass Filter(CWL=525nm,FWHM=20nm)
BP525-20 Bandpass Filter(CWL=525nm,FWHM=20nm)
Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to info@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Payment Notice
Payment Notice
Payment could be done online with Credit Card, Apple Pay, Google Pay.
Amount will not be deducted immediately after you authorized the payment. We will share raw data for confirmation by email, only after confirmation the amount will be deducted.
For amount under $200 you can request to make payment within 15 days after received the product. (NET 15)
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact info@syronoptics.com for details.
Mounting
Mounting
We have filter mounting option including:
- Thread Mount
- Filter Wheel
- Filter Slide
Buy in Bulk
Buy in Bulk
For order quantity (or equal coating size) above 100pcs x dia25mm filters. Discount will be available. (15 - 35%)
You can also start customization of bandpass filter to satisfy specific need and get a better price.
Specification Tutorial
-
Center Wavelength (CWL)
Mid point of the transmitting region.
-
Full Width at Half Maximum (FWHM)
The bandwidth of the filter, measured at half the peak transmittance.
-
Peak Transmittance (Tpk)
Maximum transmission ratio of the filter.
-
Out-of-band Blocking
Wavelength region that the filter to suppress. (outside the passband)
-
Optical Density (OD)
A measure of the filter's ability to block unwanted wavelengths.
Other Factors
-
Angle Of Incidence (AOI)
What is Angle of incidence(AOI)Standard Bandpass Filter should be used with 0° AOI to prevent from Center Wavelength Shift
-
Temperature
Standard Bandpass Filter should be used between -30° to 75° (celsius) to prevent from significant wavelength shift.
