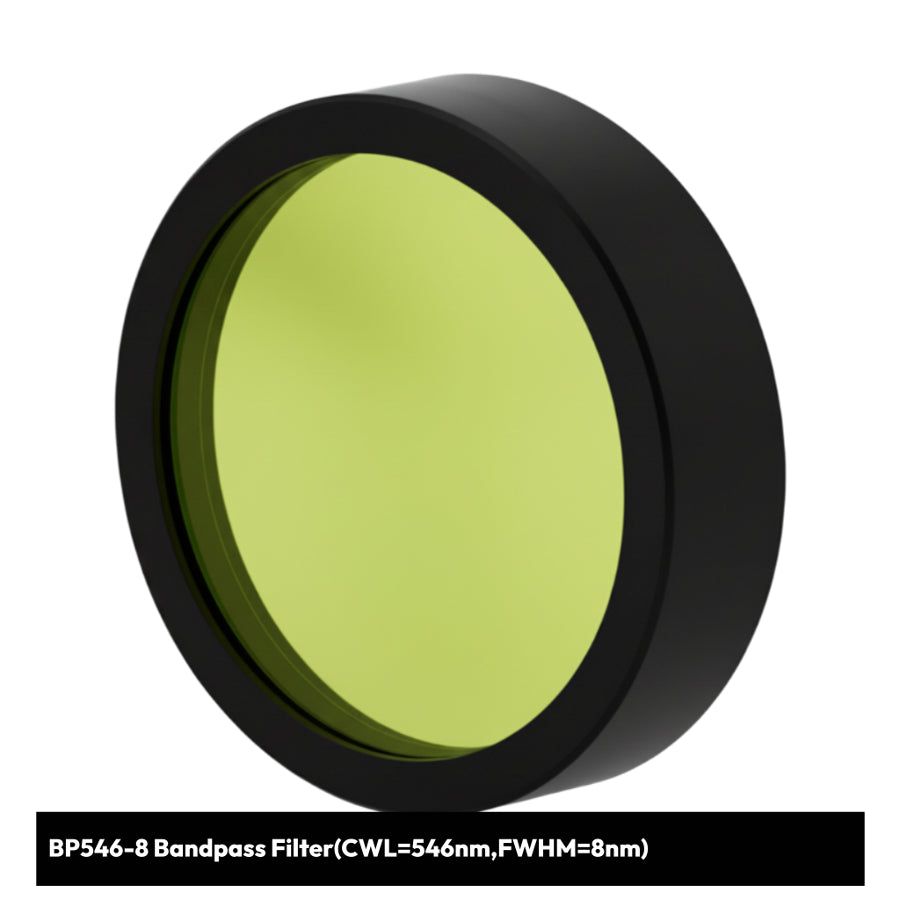

BP546-8 Bandpass Filter(CWL=546nm,FWHM=8nm)
BP546-8 Bandpass Filter(CWL=546nm,FWHM=8nm)
PN:SO3010280
Couldn't load pickup availability
Ultra-Precision Green Light Bandpass Filter
The BP546-8 bandpass filter delivers exceptional performance at 546nm, capturing the vibrant green region of the visible spectrum with remarkable precision. With its ultra-narrow 8nm full-width half-maximum (FWHM), this filter provides outstanding spectral selectivity for the most demanding green light applications.
Superior Specifications:
- Center Wavelength: 546nm ± 2nm precision
- Ultra-Narrow Bandwidth: 8nm FWHM for maximum selectivity
- High Transmission: >90% peak transmission
- Excellent Blocking: OD3+ out-of-band rejection
- Professional Construction: Hard-coated for durability
Critical Applications:

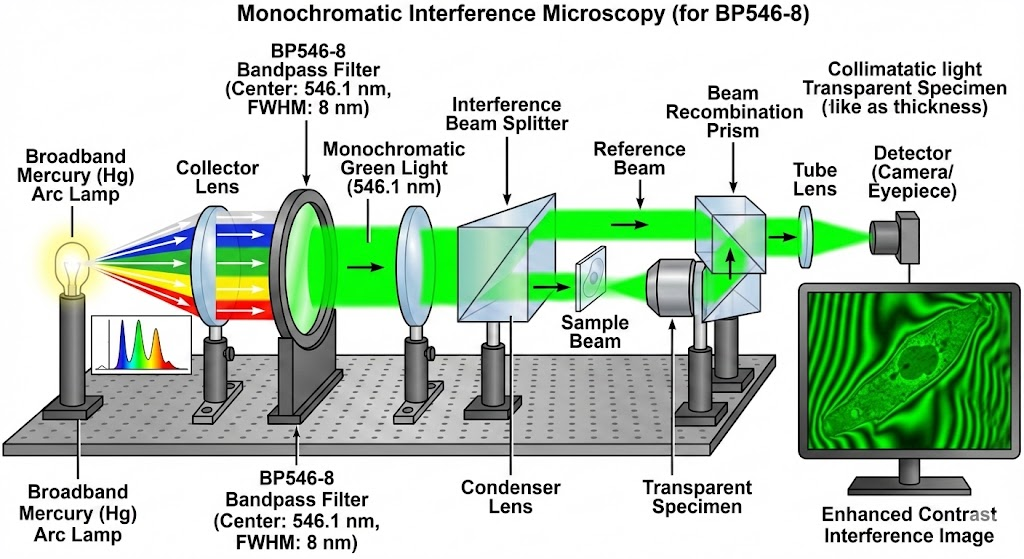

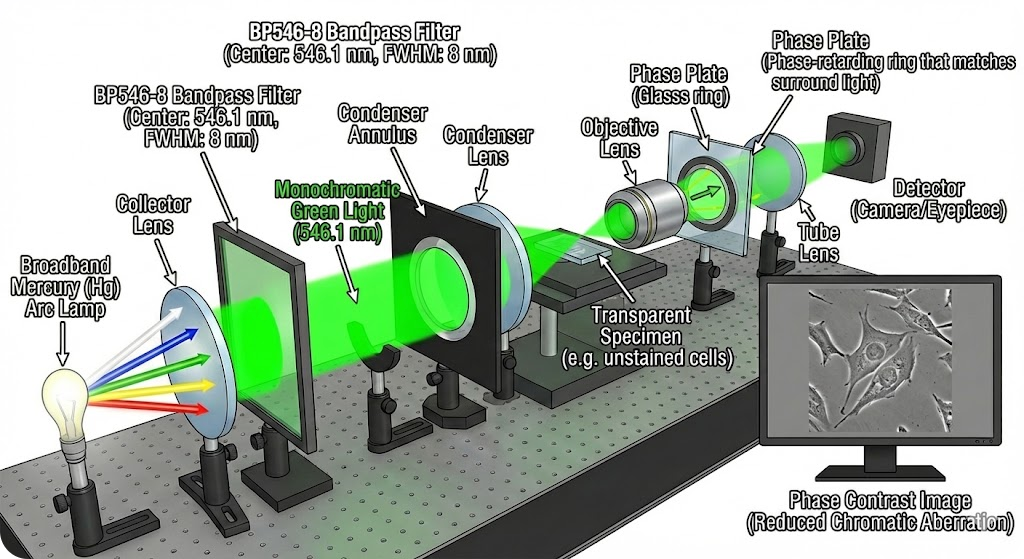

- High-resolution fluorescence microscopy
- Precision flow cytometry systems
- Advanced spectroscopy and analysis
- Green laser line filtering
- Machine vision and inspection
- Scientific imaging applications
The 546nm Green Light Advantage:
At 546nm, this filter captures pure green light that's essential for many fluorescent markers and imaging applications. The ultra-narrow 8nm bandwidth ensures exceptional spectral purity, eliminating unwanted wavelengths that could interfere with sensitive measurements or high-contrast imaging.
Experience the precision that SyronOptics brings to visible light filtering. Our commitment to optical excellence ensures your green light applications achieve the highest levels of accuracy and image quality.

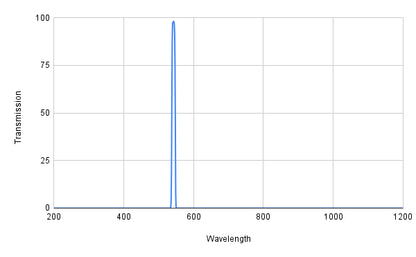

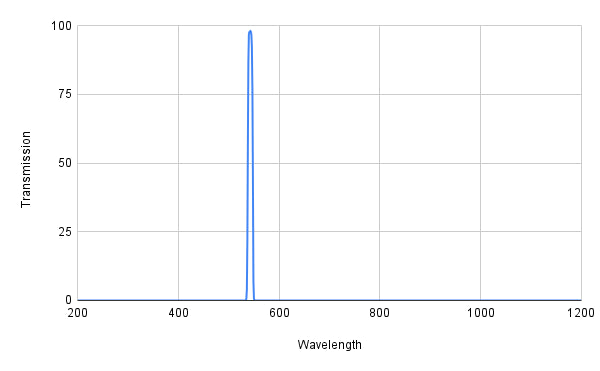

Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
