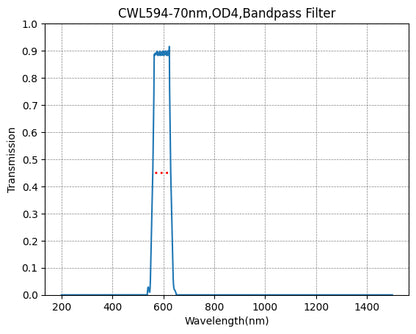

• Graph showing the transmission rate on the y-axis against wavelength in nm on the x-axis, indicating a bandpass filter effect with a peak transmission at approximately 594nm and a width of 70nm.
  • Orange filter with black rim on a white background
1 2

BP594-70 Bandpass Filter(CWL=594nm,FWHM=70nm)

BP594-70 Bandpass Filter(CWL=594nm,FWHM=70nm)

PartNumber:SO3010333

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.

Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

In Stock.

Ships within 5 working days of order. Customs handling including. (DDP)

Net 30 payment terms for organizational purchase orders.

Email shop@syronoptics.com For Customization Options

  • Wavelength: 594nm center wavelength (CWL) for yellow-orange light applications
  • Spectral Features: 70nm FWHM bandwidth for high throughput and broadband coverage
  • Optical Density: OD4+ blocking for effective out-of-band rejection
  • Filter Dimension Availability: Multiple mounting options available to fit standard optical systems

Request Raw Data

You can request the raw transmission data from us.

Copy the link of the product page and send email to shop@syronoptics.com, you will get reply within 1 working days.

Shipment & Delivery

  • Stocked products ship within 5 business days after order confirmation.
  • Custom-made products typically ship within 4–8 weeks.
  • Delivery times may be affected by holidays, customs clearance, or other unforeseen events.
  • Tracking information becomes available 3–5 days after dispatch when the parcel is handed to the local courier.
  • Some deliveries may require customer pickup. Please ensure your contact information is correct and respond promptly to courier communications.
  • General international parcel shipping cost: USD 35 (for reference).

Return & Refund

1. Eligible Products

Stocked (catalog) products with a unit price under USD 500 are eligible for return within 14 days after delivery.

Custom-made or non-stock items are not eligible for no-reason returns.

2. No-Reason Return (Buyer’s Remorse)

If you wish to return an item for reasons other than product defect or seller error:

  • Please email shop@syronoptics.com to request a return authorization and return address.
  • Buyer is responsible for all return shipping costs.
  • Items must be unused, in original condition, and with original packaging.
  • Refund will be issued after inspection of the returned item.

3. Seller’s Fault (Defective / Wrong / Damaged Item)

If the return is due to seller error (defective product, wrong item shipped, or damage during shipping):

Please provide clear evidence (photos or videos) showing the issue.

We will evaluate the case and either:

  • Provide a replacement, or
    Issue a refund (with or without requiring the item to be returned).
  • Return shipping cost will be covered by the seller in confirmed seller-fault cases.

4. Important Notes

  • Returned items are subject to inspection before refund approval.
  • Shipping fees, customs duties, and taxes are non-refundable unless the return is due to seller fault.
  • Unauthorized returns will not be accepted.

Custom Sizing

Custom sizing is available from 3 × 3 mm (or Ø5 mm) up to 60 × 60 mm. For custom cut sizes, please contact shop@syronoptics.com for a quotation.

Pricing is not significantly lower for small-size orders in low quantities due to operational costs.

Payment Terms

Payments can be made online using Credit Card, Apple Pay, Google Pay, WeChat Pay, and Alipay.

If you prefer to pay by bank transfer, please contact shop@syronoptics.com to request an invoice with our banking details.

If you require deferred payment terms, you may request NET 7 or NET 30 at the time of placing your order.

All requests for deferred payment are subject to approval and will be confirmed by SyronOptics via email.

View full details
  • BP594-70 Bandpass Filter - Fluorescence Microscopy (Life Sciences)

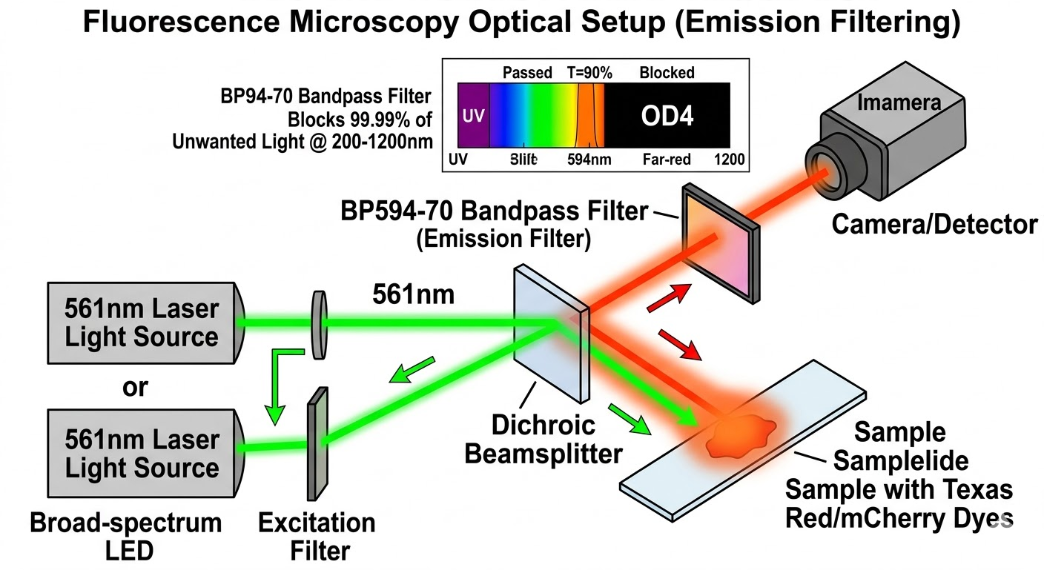

    BP594-70 Bandpass Filter - Fluorescence Microscopy (Life Sciences)

    Fluorescence Microscopy (Life Sciences)

    Scientists use special glowing dyes (like "Texas Red" or "mCherry") to tag and study specific parts of microscopic cells. This filter acts as a perfect "emission filter." It captures the specific glowing orange/red light emitted by these dyes while using its high OD4 rating to completely block out all other harsh background light, making the cells light up clearly against a dark background.

    Recommended light source:

    • 561nm or 594nm Laser light source: highly concentrated and powerful, making it perfect for exciting the fluorescent dyes to glow brightly without bleeding into the filter's viewing window.
    • Broad-spectrum LED (paired with an excitation filter) light source: a safer, more cost-effective option for general lab microscopes that still provides enough energy to make the cellular dyes glow.
  • BP594-70 Bandpass Filter - Machine Vision and Automated Inspection

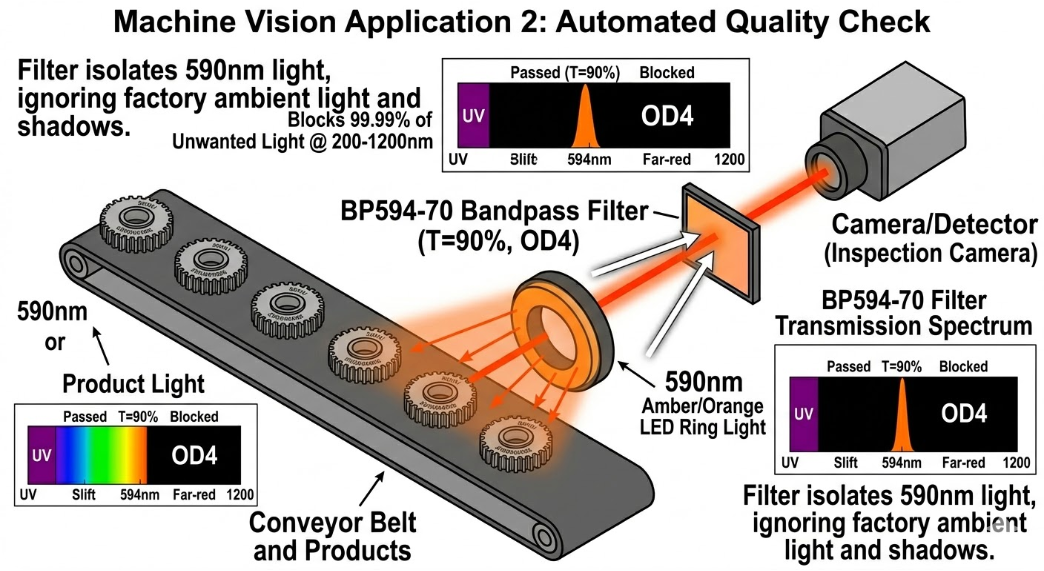

    BP594-70 Bandpass Filter - Machine Vision and Automated Inspection

    Machine Vision and Automated Inspection

    Factories use cameras to automatically check products on fast-moving conveyor belts. By equipping the camera with this filter and shining a matching colored light on the products, the camera easily ignores bright overhead factory lights, sunlight from windows, and moving shadows. It only "sees" the illuminated product, making automated quality checks incredibly stable and accurate.

    Recommended light source:

    • 590nm (Amber/Orange) LED Ring light source: highly energy-efficient, lasts a very long time, and perfectly matches the filter's "window" to create bright, high-contrast images of the inspected parts.
    • Halogen lamp light source: produces a massive amount of warm light (heavy in yellows and reds), which is useful if you need to illuminate a very large area on the factory floor and are relying on the camera's filter to cut out the rest.

Fequently Asked Questions

Different Types of Filter Mountings

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount:

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

What are the Thickness of the Optical Filters?

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2.0mm

*Most of our optics are coming with 1.1mm and 2.0mm

With Standard Mounting (Mounted, No Thread):

  • 3.5mm (Default)
  • 6mm (Upon Request)

Thread Mounted:

  • 6mm - 8mm

  • dia12.5mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia12.5mm(mounted)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(mounted)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    3.5mm

    Internal/External Thread:

    n.a/n.a

  • dia25mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • SM05(0.535″-40TPI)

    Clear Aperture:

    dia9mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM05/SM05

  • SM1(1.035″-40TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    7.62mm

    Internal/External Thread:

    SM1/SM1

  • C-Mount(1″-32TPI)

    Clear Aperture:

    dia21mm

    Mounting Thickness:

    Internal/External Thread:

    C-Mount/C-Mount

  • M25.5x0.5mm(mounted)

    Clear Aperture:

    dia20.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M25.5x0.5mm/M25.5x0.5mm

  • M27x0.5mm(mounted)

    Clear Aperture:

    dia22mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M27x0.5mm/M27x0.5mm

  • M30.5x0.5mm(mounted)

    Clear Aperture:

    dia25.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M30.5x0.5mm/M30.5x0.5mm

  • M34x0.5mm(mounted)

    Clear Aperture:

    dia29mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M34x0.5mm/M34x0.5mm

  • M35.5x0.5mm(mounted)

    Clear Aperture:

    dia30.5mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M35.5x0.5mm/M35.5x0.5mm

  • M37x0.5mm(mounted)

    Clear Aperture:

    dia32mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M37x0.5mm/M37x0.5mm

  • M52x0.75mm(mounted)

    Clear Aperture:

    dia47mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M52x0.75mm/M52x0.75mm

  • M55x0.75mm(mounted)

    Clear Aperture:

    dia50mm

    Mounting Thickness:

    6.5mm

    Internal/External Thread:

    M55x0.75mm/M55x0.75mm

  • dia27mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a

  • dia34mm(unmounted)

    Clear Aperture:

    >90%

    Mounting Thickness:

    n.a

    Internal/External Thread:

    n.a/n.a
