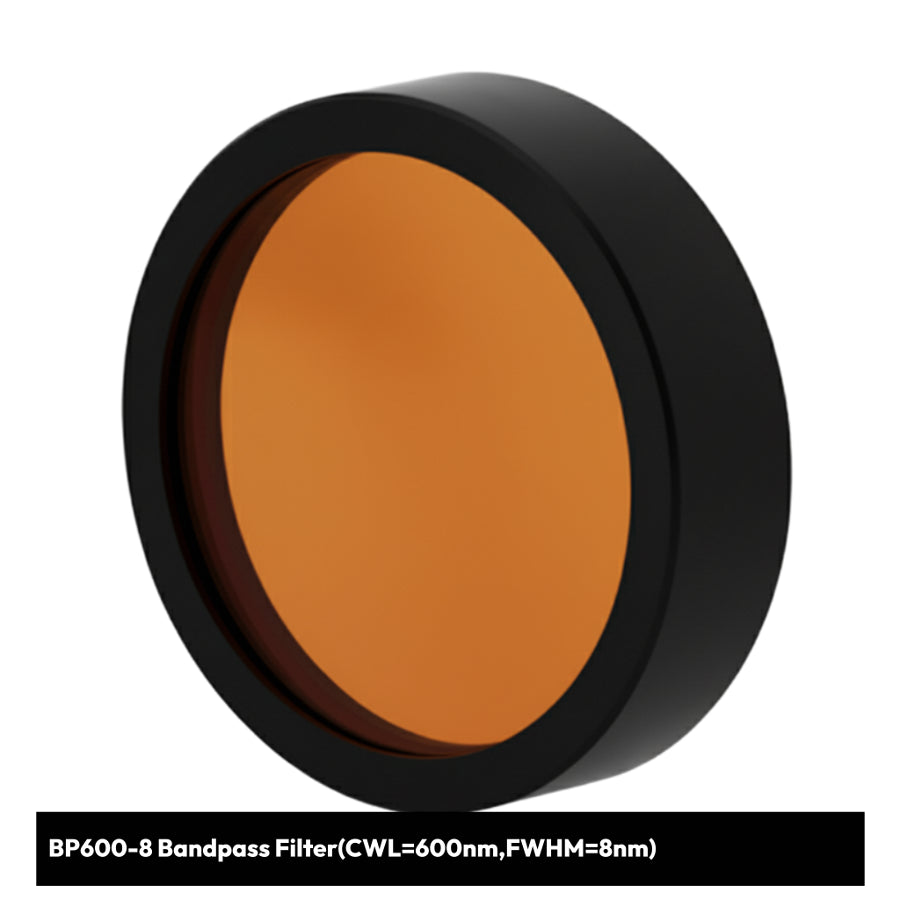

BP600-8 Bandpass Filter(CWL=600nm,FWHM=8nm)
BP600-8 Bandpass Filter(CWL=600nm,FWHM=8nm)
PN:SO3010341
Couldn't load pickup availability
Ultra-Narrow Precision Bandpass Filter - BP600-8
Experience exceptional spectral precision with our BP600-8 bandpass filter, featuring an ultra-narrow 8nm bandwidth at 600nm wavelength for the most demanding optical applications requiring maximum selectivity.
Key Specifications:
- Center Wavelength (CWL): 600nm - Precise orange wavelength transmission
- Full Width Half Maximum (FWHM): 8nm - Ultra-narrow bandwidth for maximum spectral purity
- Exceptional Transmission: Advanced multi-layer coating for superior light efficiency
- Ultra-Steep Edges: Sharp spectral cutoff for outstanding out-of-band rejection
- Minimal Passband Ripple: Extremely smooth transmission characteristics
- High Optical Density: Superior blocking performance outside the passband
Critical Applications:
- Laser line filtering - Perfect for 600nm laser cleanup and purification
- Ultra-high resolution fluorescence microscopy
- Precision monochromator systems and spectral analysis
- Advanced flow cytometry with critical wavelength discrimination
- Raman spectroscopy excitation filtering
- Quantum optics and photonics research
- Scientific imaging requiring extreme spectral purity
- Metrology and calibration standards
Technical Excellence:
The ultra-narrow 8nm bandwidth delivers unparalleled spectral selectivity, making this filter essential for applications where even minimal spectral contamination cannot be tolerated. The exceptionally steep filter edges provide maximum discrimination between closely spaced spectral features.
Precision Engineering:
Manufactured using state-of-the-art thin-film deposition techniques, this filter maintains consistent performance across temperature variations and provides long-term stability in the most demanding research environments.
Why Choose SyronOptics BP600-8?
Our ultra-precision manufacturing process ensures each filter meets the strictest tolerances available in the industry. Comprehensive optical testing guarantees performance that exceeds the most demanding specifications for sophisticated optical instrumentation.
Laboratory-grade optical component trusted by leading research institutions, national laboratories, and high-tech manufacturers worldwide for applications where precision is absolutely critical.

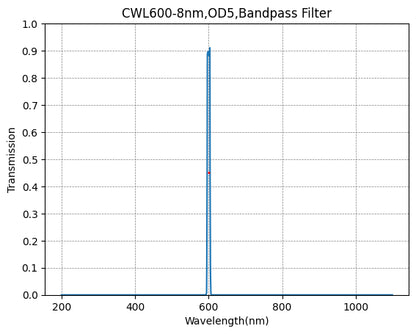

Transmission & OD Data
Transmission & OD Data
The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.
Copy the link of the product page and send email to shop@syronoptics.com to get raw data.
Shipment & Delivery
Shipment & Delivery
For stocked products, shipment will usually be made within 5 working days after order.
For customized products, shipment will usually be made within 4-8 weeks after order.
Return & Refund
Return & Refund
Stocked Product are eligible to return within 7 days after receiving.
A flat rate of 35$ will be charged for returning.
Custom Sizing
Custom Sizing
Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.
For bigger size, contact shop@syronoptics.com for details.
Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.
Methods
- Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
- Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
- Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.
Price
Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.
Packaging
Packaging
If you need generic packaging, please leave "Generic" in the note when placing order.
In such case:
- No Branding information in Packaging Materials
- All Documentation will be generic
- We will send image of the parcel to you before fulfilling shipment
- You can use your document template for the shipment.
Feel free to contact shop@syronoptics.com for details.
Payment
Payment
Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay
For amount under $200 you can request to make payment within 7days after receiving the order.
SKU:
View full details
Standard Mountings
Camera Mounting List
-
Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
