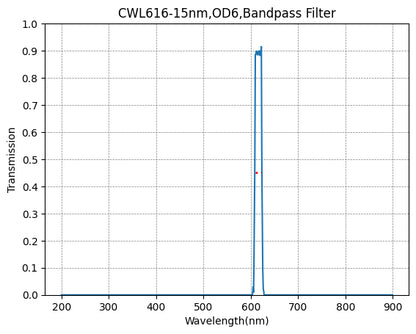

• A graph showing the transmission of a bandpass filter with respect to wavelength, having a central wavelength (CWL) of 616nm and a bandwidth (FWHM) of 15nm.
1 2

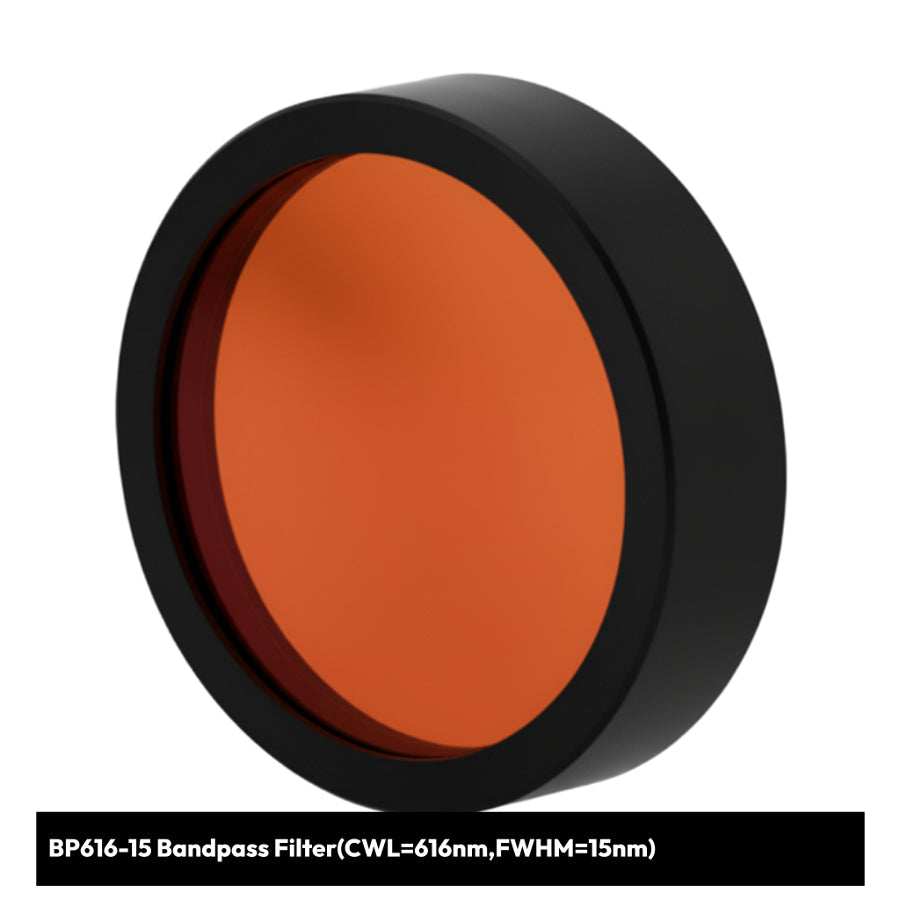

BP616-15 Bandpass Filter(CWL=616nm,FWHM=15nm)

BP616-15 Bandpass Filter(CWL=616nm,FWHM=15nm)

PN:SO3010361

$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Red-Orange Bandpass Filter for Precision Optical Applications

The BP616-15 is a high-performance bandpass filter designed for demanding applications in the red-orange spectral region. With a center wavelength of 616nm and narrow 15nm FWHM, this filter provides exceptional spectral selectivity and optical precision for fluorescence microscopy, machine vision, and analytical instrumentation.

Key Features:

  • Narrow Band Precision: 616nm center wavelength with tight 15nm full width at half maximum (FWHM)
  • Superior Spectral Selectivity: Narrow bandwidth for enhanced signal isolation and contrast
  • High Transmission Efficiency: Optimized coating design for maximum light throughput
  • Professional Construction: Durable multi-layer interference coating ensures consistent performance

Primary Applications:

Fluorescence Microscopy:

  • Red fluorescent protein (RFP) imaging and analysis
  • mCherry fluorophore excitation and emission
  • Texas Red dye applications
  • Multi-color fluorescence experiments

Machine Vision & Industrial:

  • Red light filtering for machine vision systems
  • Quality control and inspection applications
  • Laser Line Filtering:
  • HeNe laser line filtering (632.8nm region)
  • Red laser diode applications

Analytical & Research:

  • Spectrophotometry and colorimetry
  • Photometric measurements
  • Custom optical instrument integration
  • Biomedical imaging applications

Technical Specifications:

  • Center Wavelength (CWL): 616nm
  • Full Width Half Maximum (FWHM): 15nm
  • Spectral Range: Red-orange visible spectrum
  • High transmission in passband
  • Excellent out-of-band blocking
  • Narrow bandwidth for superior selectivity

Engineered for professionals who demand precise spectral control, the BP616-15 delivers exceptional performance in applications requiring narrow-band red light filtering. Each filter undergoes rigorous quality testing to ensure it meets the exacting standards required for scientific research, industrial inspection, and advanced imaging applications.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
