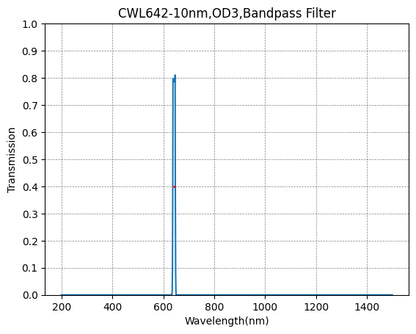

• Graph of a bandpass filter with a central wavelength at 642nm and a bandwidth of 10nm, showing transmission on the y-axis and wavelength on the x-axis.
1 2

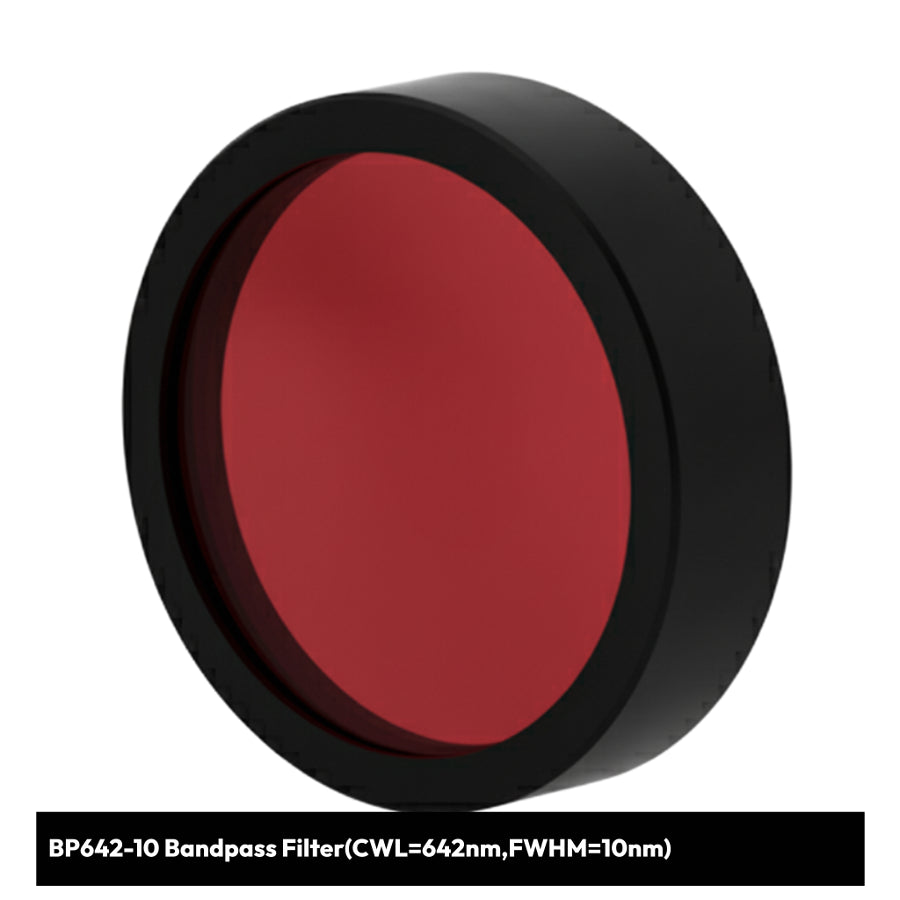

BP642-10 Bandpass Filter(CWL=642nm,FWHM=10nm)

BP642-10 Bandpass Filter(CWL=642nm,FWHM=10nm)

PN:SO3010397

$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength (CWL) // FWHM
Optical Density // Peak Transmission (Tpk)
Dimension

Precision Red Spectrum Filtering

The BP642-10 Bandpass Filter delivers exceptional spectral precision with a center wavelength of 642nm and a tight 10nm FWHM bandwidth. This high-precision filter provides superior wavelength selectivity while maintaining excellent transmission efficiency for demanding optical applications requiring precise spectral isolation in the red spectrum.

Technical Specifications

  • Center Wavelength: 642nm (red spectrum)
  • Narrow Bandwidth: 10nm FWHM for maximum spectral precision
  • High transmission efficiency in the passband
  • Steep spectral edges for excellent out-of-band rejection
  • Professional-grade construction for consistent long-term performance

Prime Applications

Engineered for applications demanding the highest spectral precision including laser line filtering, narrow-band fluorescence microscopy, precision spectroscopy, and analytical instrumentation. The 10nm FWHM makes it ideal for applications where spectral purity is critical, such as single-wavelength detection systems and high-resolution optical measurements.

Performance Excellence

The narrow bandwidth design ensures maximum spectral discrimination while delivering excellent transmission characteristics. This translates to superior signal purity, reduced background noise, and enhanced measurement accuracy in precision optical systems where spectral selectivity is paramount.

Quality Assurance

Manufactured using state-of-the-art optical coating technology and precision engineering processes. Each filter undergoes rigorous quality testing to ensure consistent spectral performance and reliability in the most demanding research and industrial environments.

Transmission & OD Data

The transmission curve is typical. Actual data may vary from lot to lot, you can request the raw Transmission and OD data from us.

Copy the link of the product page and send email to shop@syronoptics.com to get raw data.

Shipment & Delivery

For stocked products, shipment will usually be made within 5 working days after order.

For customized products, shipment will usually be made within 4-8 weeks after order.

Return & Refund

Stocked Product are eligible to return within 7 days after receiving.

A flat rate of 35$ will be charged for returning.

Custom Sizing

Custom sizing is available for dimension under 60x60mm. Without mounting the thickness will generally ranging from 0.5-3mm.

For bigger size, contact shop@syronoptics.com for details.

Optical dicing refers to precision cutting processes used to segment optical materials, particularly those with specialized coatings, into smaller functional components while maintaining their structural and optical integrity. In the context of optical coating flats (flat substrates like glass, fused silica, or semiconductors coated with anti-reflective, dielectric, or other optical layers), dicing ensures these coated substrates meet exact dimensional requirements for applications in photonics, lasers, sensors, and semiconductor devices.

Methods

  • Saw Dicing: Diamond-coated blades for clean cuts with minimal chipping.
  • Laser Dicing: Non-contact ablation for delicate or brittle materials, reducing mechanical stress.
  • Plasma Dicing: Dry etching for ultra-fine features, ideal for advanced semiconductor wafers.

Price

Dicing Service will generally cost from $50 to $125 per piece. Depending on the accuracy and size you are requesting.

Packaging

If you need generic packaging, please leave "Generic" in the note when placing order.

In such case:

  • No Branding information in Packaging Materials
  • All Documentation will be generic
  • We will send image of the parcel to you before fulfilling shipment
  • You can use your document template for the shipment.

Feel free to contact shop@syronoptics.com for details.

Payment

Payment could be done online with Credit Card, Apple Pay, Google Pay, Wechat Pay and Alipay

For amount under $200 you can request to make payment within 7days after receiving the order.

View full details

Fequently Asked Questions

What are the Thickness of the Optical Filters?

For Mounted Optics:

  • 6mm (by Default)
  • 3.5mm (Specified in Order Note)

For Unmounted Optics:

  • 0.5mm
  • 1.1mm
  • 2mm

(most of the unmounted optics are having thickness of 1.1mm ~ 2mm)

What is the difference between mountings?

Unmounted:

  • a bare glass optical filter

Mounted:

  • Smooth Mount for protection of the optics. No thread is there on the mount.

Metric Mount:

  • Start with M as prefix, usually seens as M25.5x0.5mm. Mostly used as camera filters

Imperial Mount (Usually Thorlabs):

  • Start with SM as prefix, usually seen SM1, SM05 etc... Mostly used in Optical system. (You will have a SM external thread to connecting to other objects)

C-Mount:

  • Very frequently used mounting. C-Mount is 1‘’-32TPI. And it is not the same thing as SM1, or M25.5x0.5mm.

Standard Mountings

Camera Mounting List

  • Our filters can be cut to match the mounting on the list. Please contact us for getting quotation.
